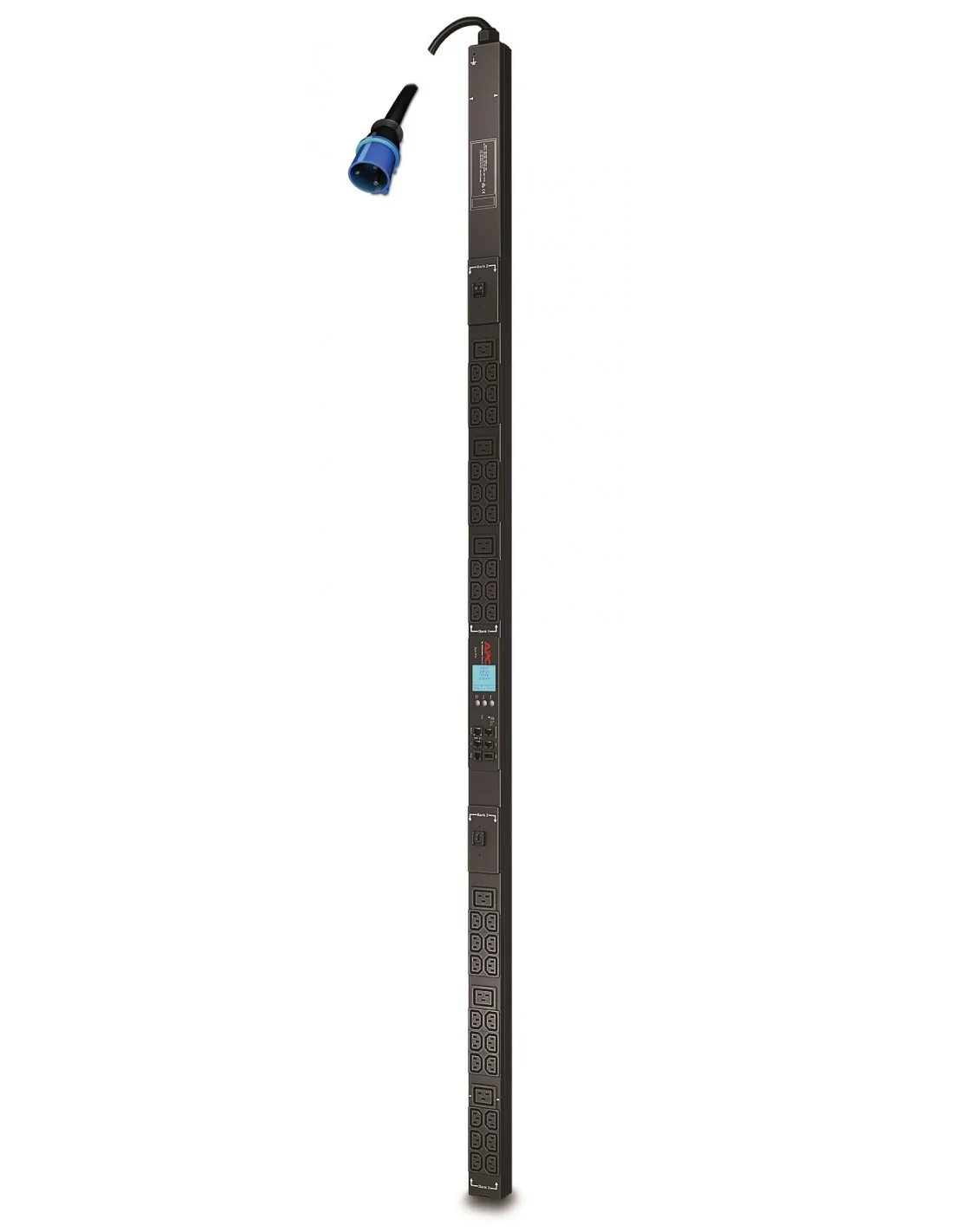

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (36) C13 & (6) C19, and the cable length is 3m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Metered |
| Mounting | Vertical |
| Product colour | Black |
| Certification | RoHS, REACH IEC 60950,VDE |
| Rack capacity | 0U |
| Ports & interfaces | |
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |

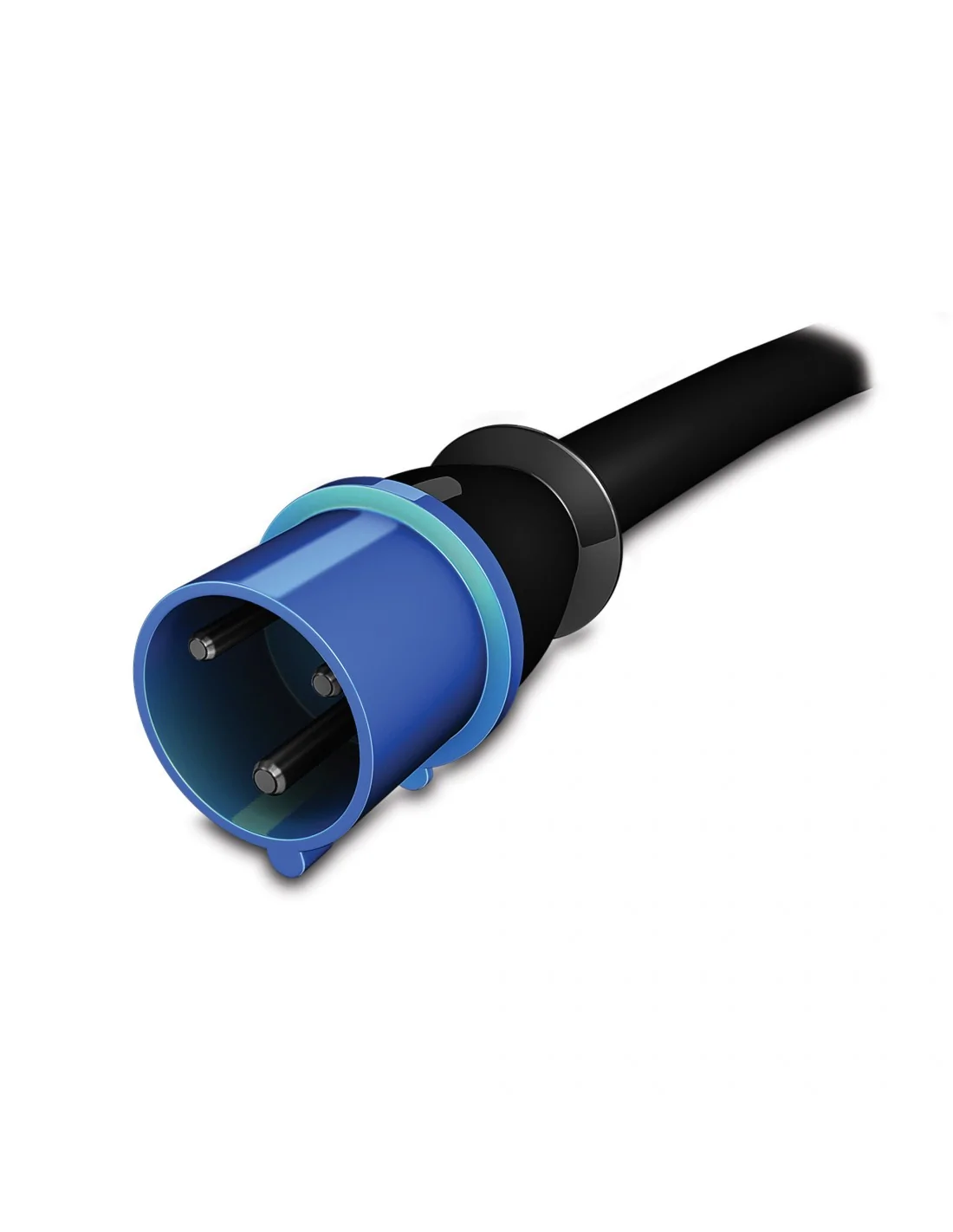

| Power plug | IEC309 |
| Output connections | 36x IEC 320 C13 6x IEC 320 C19 |
| Input connection type | IEC 309 32A 2P+E |
| Features | |
| Cable length | 3 m |
| Certification | RoHS, REACH IEC 60950,VDE |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Ergonomics | |
| Cable length | 3 m |
| Power | |
| Maximum power | 7680 W |
| Nominal output voltage | 230 V |
| Maximum total current draw per phase | 32 A |
| Maximum input current per phase | 32 A |
| Load capacity | 7680 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | RoHS, REACH IEC 60950,VDE |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 6.93 kg |
| Width | 56 mm |
| Depth | 44 mm |
| Height | 1791 mm |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 28921.23 |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 28921.23 |
