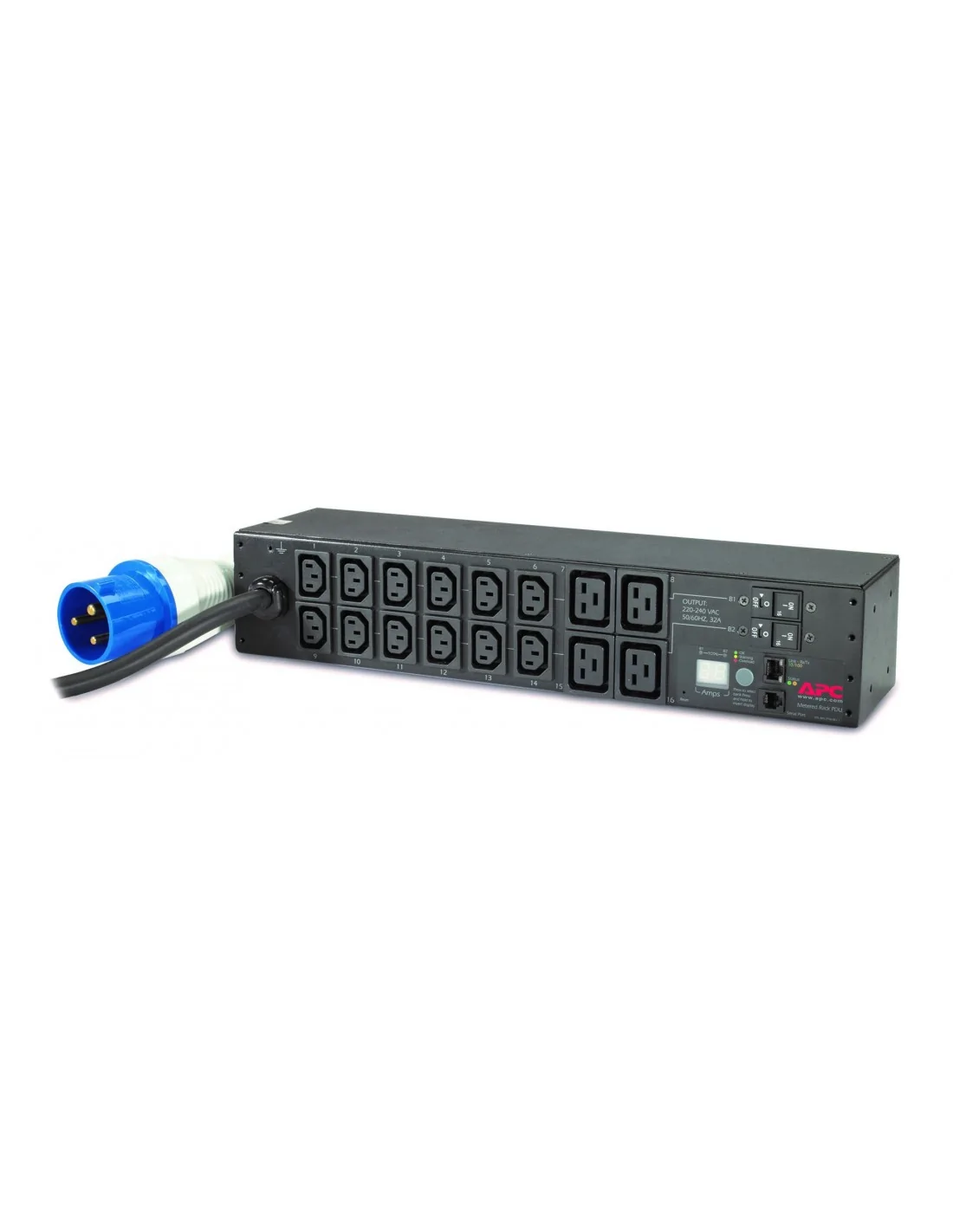

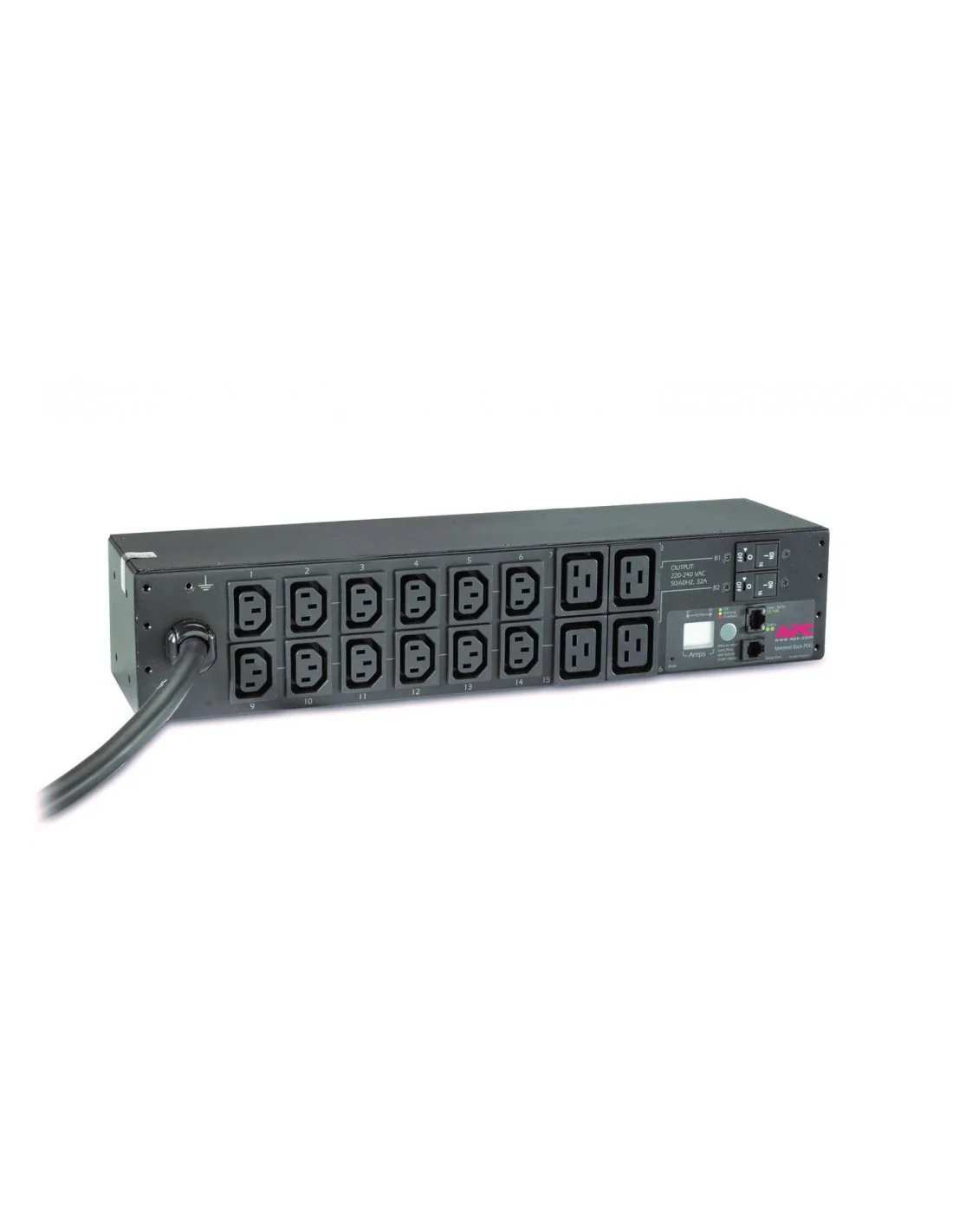

APC AP7822B power distribution unit (PDU) 16 AC outlet(s) 2U Black

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Design
On/off switch	Yes
Type	Single-phase
PDU types	Metered
Mounting	Horizontal/Vertical
Product colour	Black
Certification	C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Rack capacity	2U
Ports & interfaces
AC outlets quantity	16 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	IEC309
Output connections	12 x C13 4 x C19
Input connection type	IEC 309 32A 2P+E
Features
Cable length	3.66 m
LED indicators	Yes
Certification	C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Management features
Monitoring	Current, Power, Voltage
Ergonomics
Cable length	3.66 m
LED indicators	Yes
Power
Maximum power	7680 W
Nominal input voltage	208-230 V
Power protection features	Overload
Maximum current	32 A
Maximum total current draw per phase	32 A
Maximum input current per phase	32 A
Load capacity	7680 VA
AC input frequency	50 - 60 Hz
Certificates
Certification	C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	3.36 kg
Width	444 mm
Depth	112 mm
Height	88 mm
Package width	508 mm
Package depth	368 mm
Package height	140 mm
Package weight	5.41 kg
Packaging data
Package width	508 mm
Package depth	368 mm
Package height	140 mm
Package weight	5.41 kg
Technical details
Total carbon footprint (kg of CO2e)	8952.07
Compliance certificates	RoHS
Logistics data
Total carbon footprint (kg of CO2e)	8952.07
