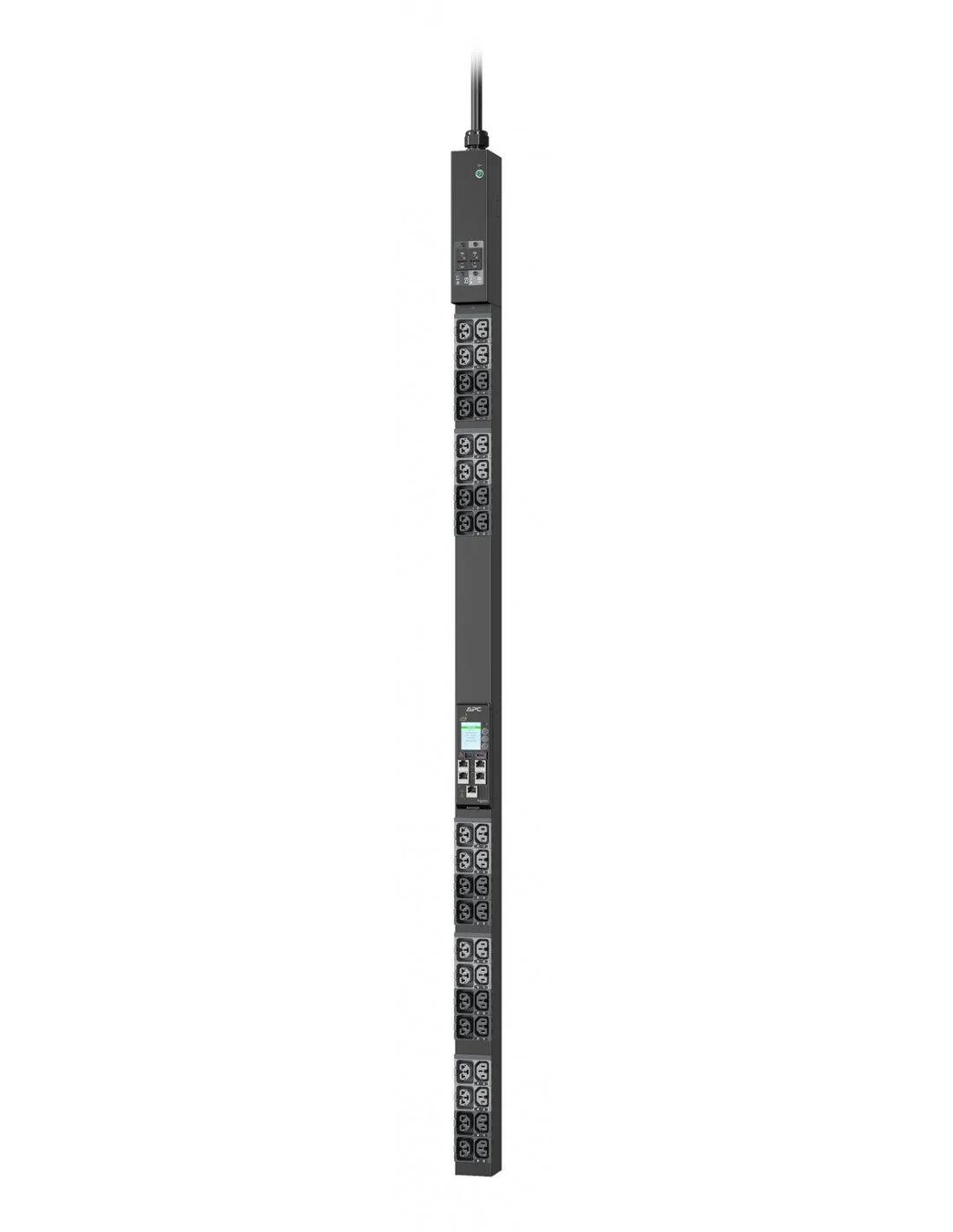

APC NetShelter Rack PDU Advanced Gen 2, Metered, 7.4kW, 1Phase, 230V, 32A, 332P6, 40 Outlets

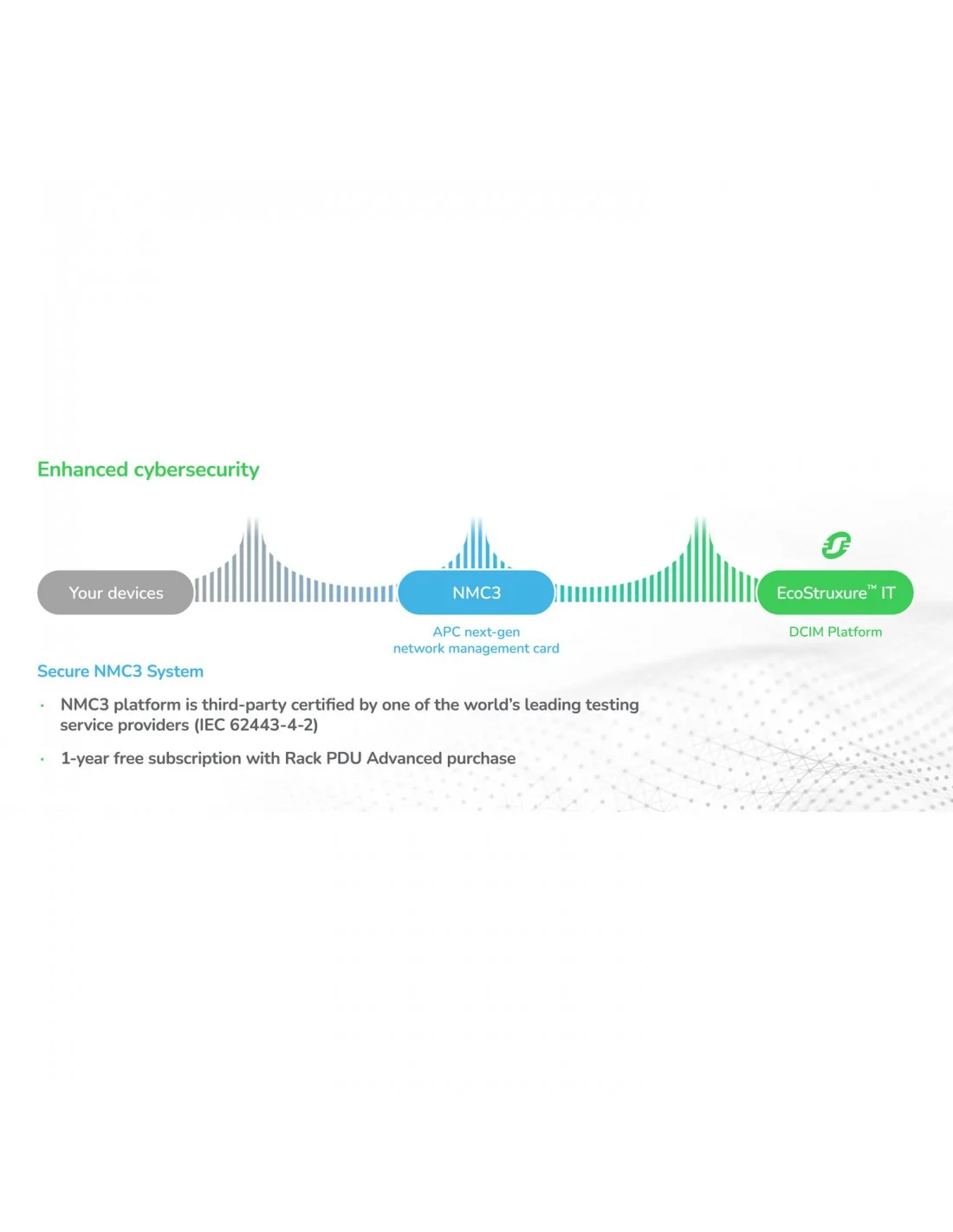

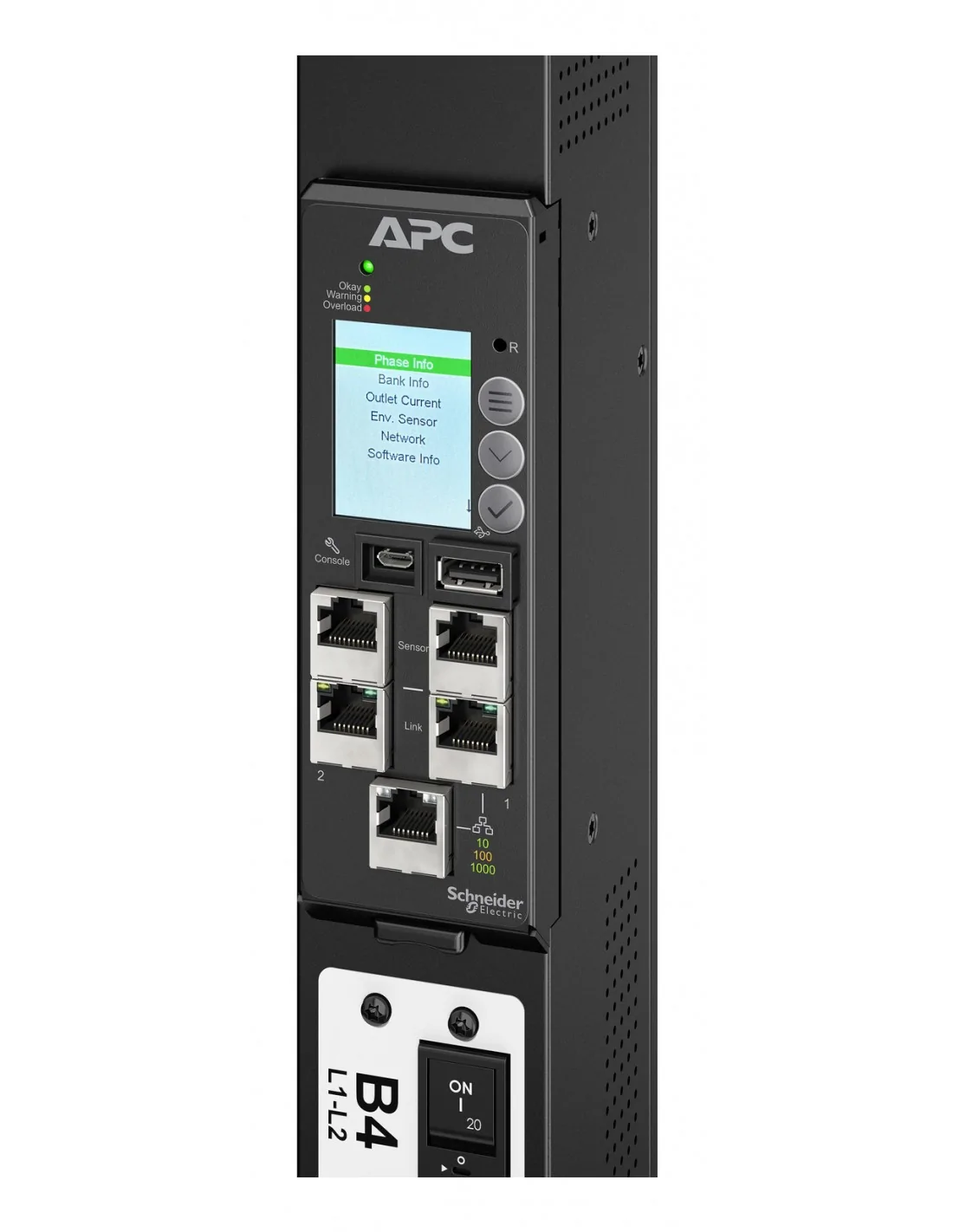

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC-309 32 A and features 20 count C13/C15/C19/C21 combo outlets and 20 count C13/C15 outlets.

Design
Type	Single-phase
PDU types	Metered
Product colour	Black
Certification	UKCA
Rack capacity	0U
Ports & interfaces
USB ports quantity	1
AC outlets quantity	40 AC outlet(s)
AC outlet types	C13 coupler, C15 coupler, C19 coupler, C21 coupler
Input connection type	IEC 60309 32 A 2P + PE
Ethernet LAN (RJ-45) ports	5
Features
Cable length	3 m
Certification	UKCA
Management features
Management platform	NMC3
Ergonomics
Cable length	3 m
Power
Nominal input voltage	230 1 phase
Nominal output voltage	230 V
Output voltage	230 V
Maximum current	32 A
Load capacity	7400 VA
AC input frequency	50/60 Hz
Number of phases	1
Certificates
Certification	UKCA
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	RoHS, REACH, WEEE
Weight & dimensions
Weight	6.2 kg
Width	56 mm
Depth	75 mm
Height	1490 mm
Package width	116 mm
Package depth	208 mm
Package height	1720 mm
Package weight	8.2 kg
Packaging data
Package width	116 mm
Package depth	208 mm
Package height	1720 mm
Package weight	8.2 kg
Technical details
Compliance certificates	RoHS, REACH, WEEE
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Logistics data
Country of origin	United States
Customs product code (TARIC)	8537109899
