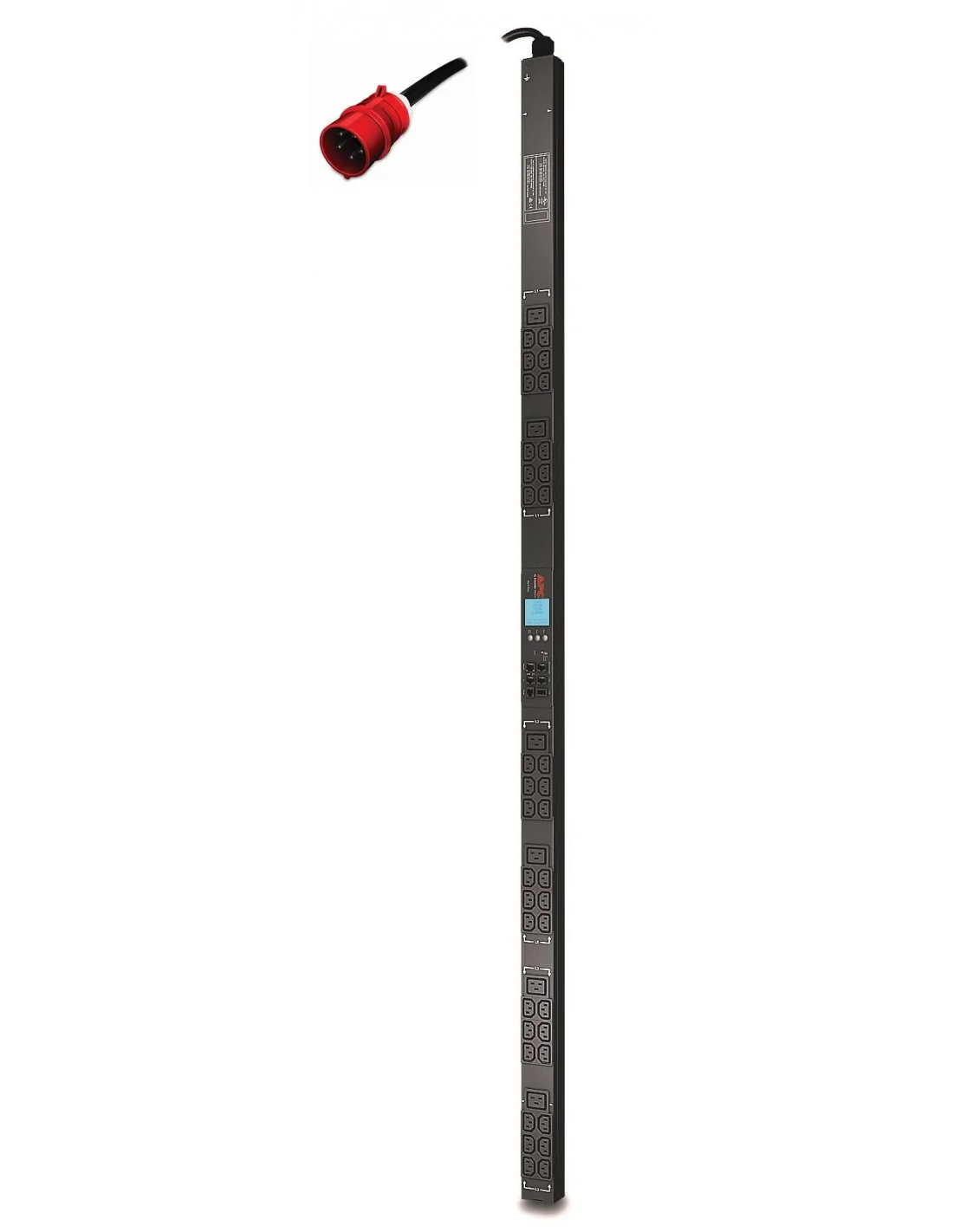

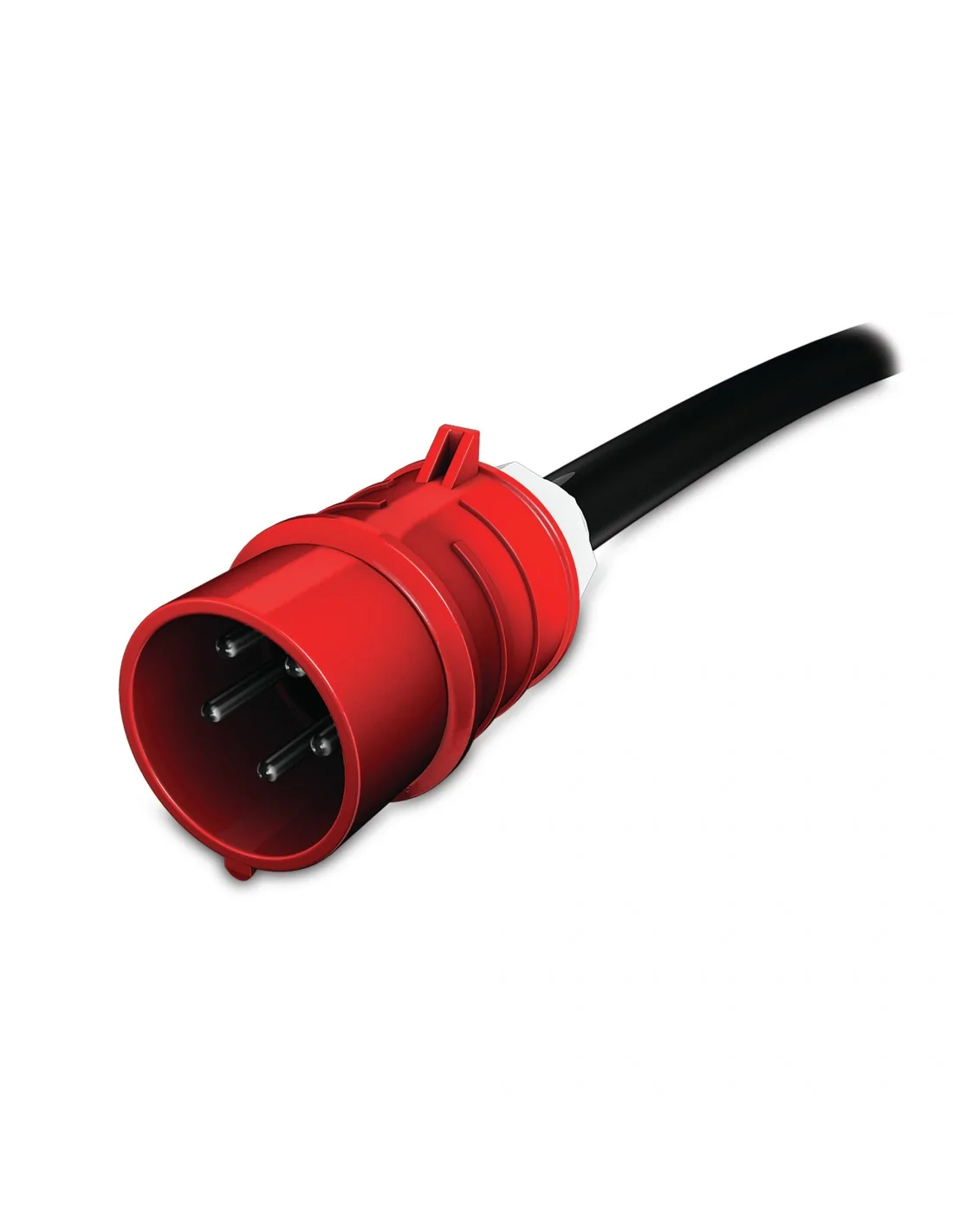

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Vertical |
| Product colour | Black |
| Certification | CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH |
| Rack capacity | 0U |
| Ports & interfaces | |
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC309 |
| Output connections | 36x IEC 320 C13 6x IEC 320 C19 |
| Input connection type | IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E |
| Features | |
| Cable length | 1.83 m |
| Certification | CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Ergonomics | |
| Cable length | 1.83 m |
| Power | |
| Maximum power | 11000 W |
| Nominal input voltage | 400 V |
| Nominal output voltage | 230 V |
| Maximum current | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum input current per phase | 16 A |
| Load capacity | 11040 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 6.38 kg |
| Width | 56 mm |
| Depth | 44 mm |
| Height | 1791 mm |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 41106.13 |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 41106.13 |
