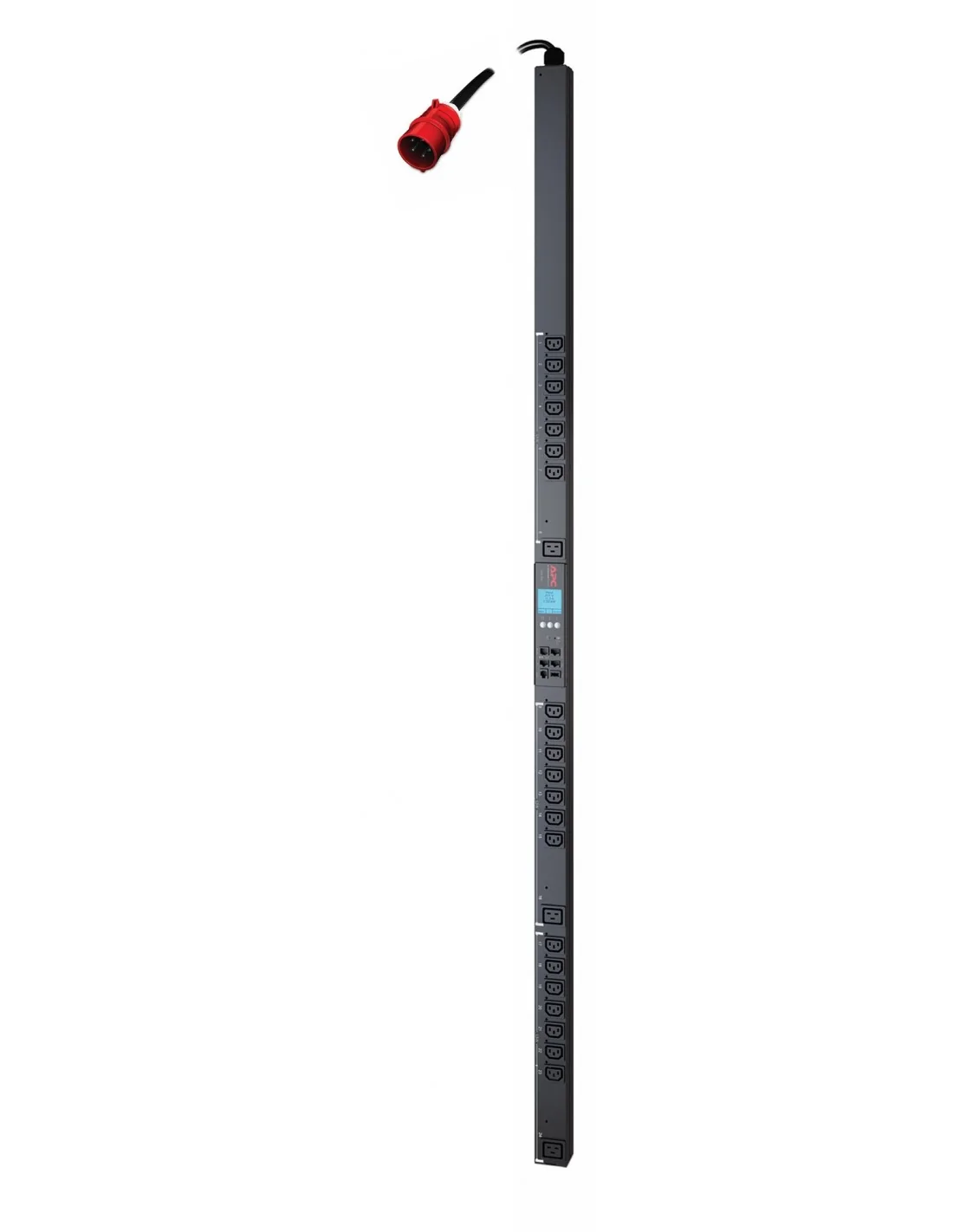

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

Design
PDU types	Metered, Metered-by-outlet, Switched
Mounting	Vertical
Product colour	Black
Certification	EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE
Rack capacity	0U
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Features
Cable length	1.83 m
Certification	EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE
Management features
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Ergonomics
Cable length	1.83 m
Power
Maximum power	11040 W
Nominal input voltage	400 V
Nominal output voltage	230 V
Maximum current	16 A
Maximum total current draw per phase	16 A
Maximum input current per phase	16 A
Load capacity	11040 VA
AC input frequency	50 - 60 Hz
Certificates
Certification	EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Weight	8.23 kg
Width	56 mm
Depth	51 mm
Height	1829 mm
Package width	162 mm
Package depth	117 mm
Package height	2038 mm
Package weight	10.5 kg
Packaging data
Package width	162 mm
Package depth	117 mm
Package height	2038 mm
Package weight	10.5 kg
Technical details
Total carbon footprint (kg of CO2e)	10364.02
Compliance certificates	RoHS
Logistics data
Total carbon footprint (kg of CO2e)	10364.02
