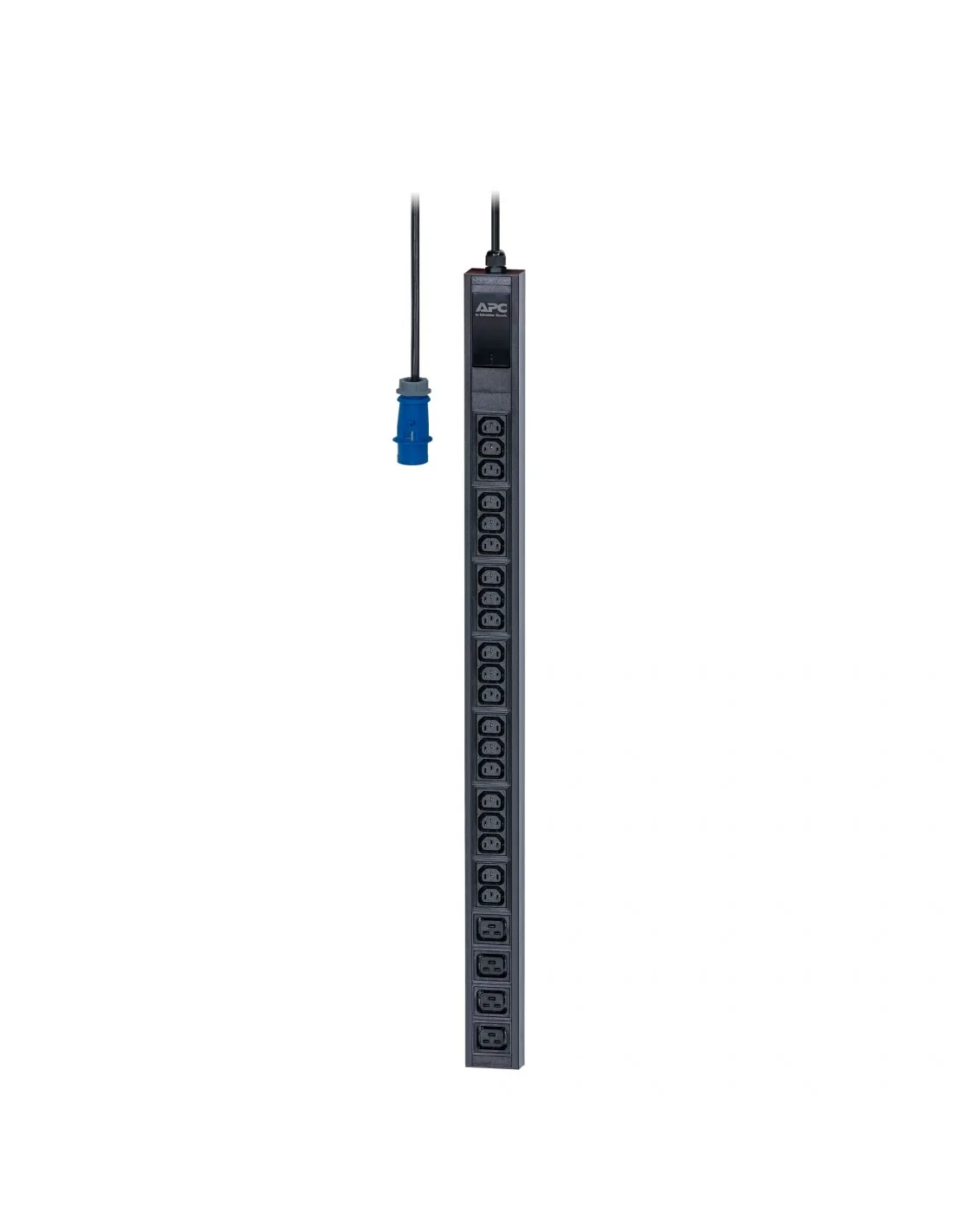

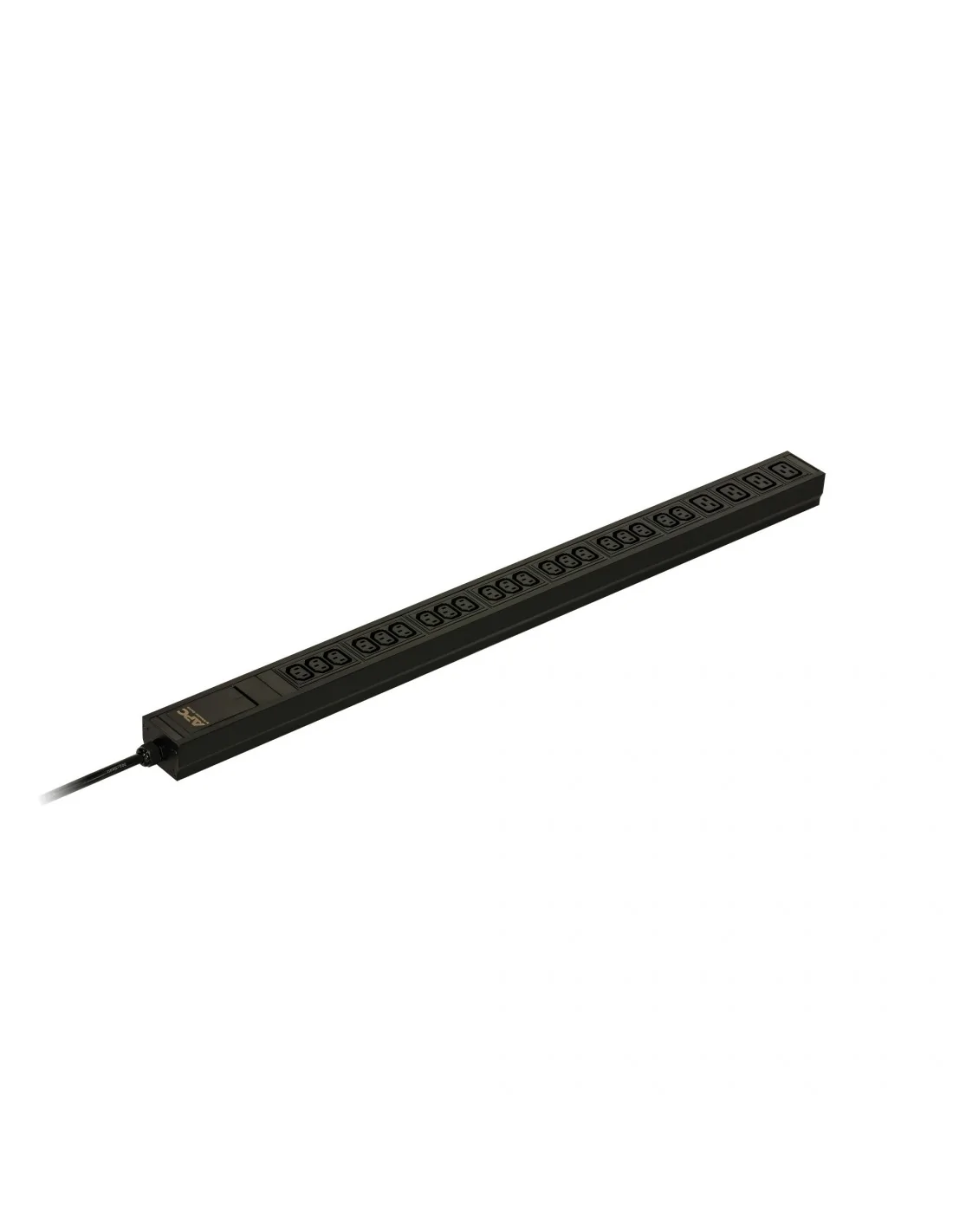

APC Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet

APC Easy Basic Rack PDU EPDU1116B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1116B has IEC 309 16A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.

Design
On/off switch	No
Type	Single-phase
PDU types	Basic
Mounting	Vertical
Product colour	Black
Rack capacity	0U
Housing material	Aluminium
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	IEC 60309
Features
Cable length	3 m
Ergonomics
Cable length	3 m
Power
Maximum power	3680 W
Nominal input voltage	200/208/230 V
Nominal output voltage	230 V
Maximum current	16 A
Maximum input current per phase	16 A
Load capacity	3680 VA
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 9000 m
Weight & dimensions
Weight	2.2 kg
Width	62 mm
Depth	44 mm
Height	902 mm
Package width	160 mm
Package depth	110 mm
Package height	1320 mm
Package weight	2.98 kg
Packaging content
Manual	Yes
Packaging data
Package width	160 mm
Package depth	110 mm
Package height	1320 mm
Package weight	2.98 kg
Technical details
Total carbon footprint (kg of CO2e)	55.85
Logistics data
Total carbon footprint (kg of CO2e)	55.85
