What it is

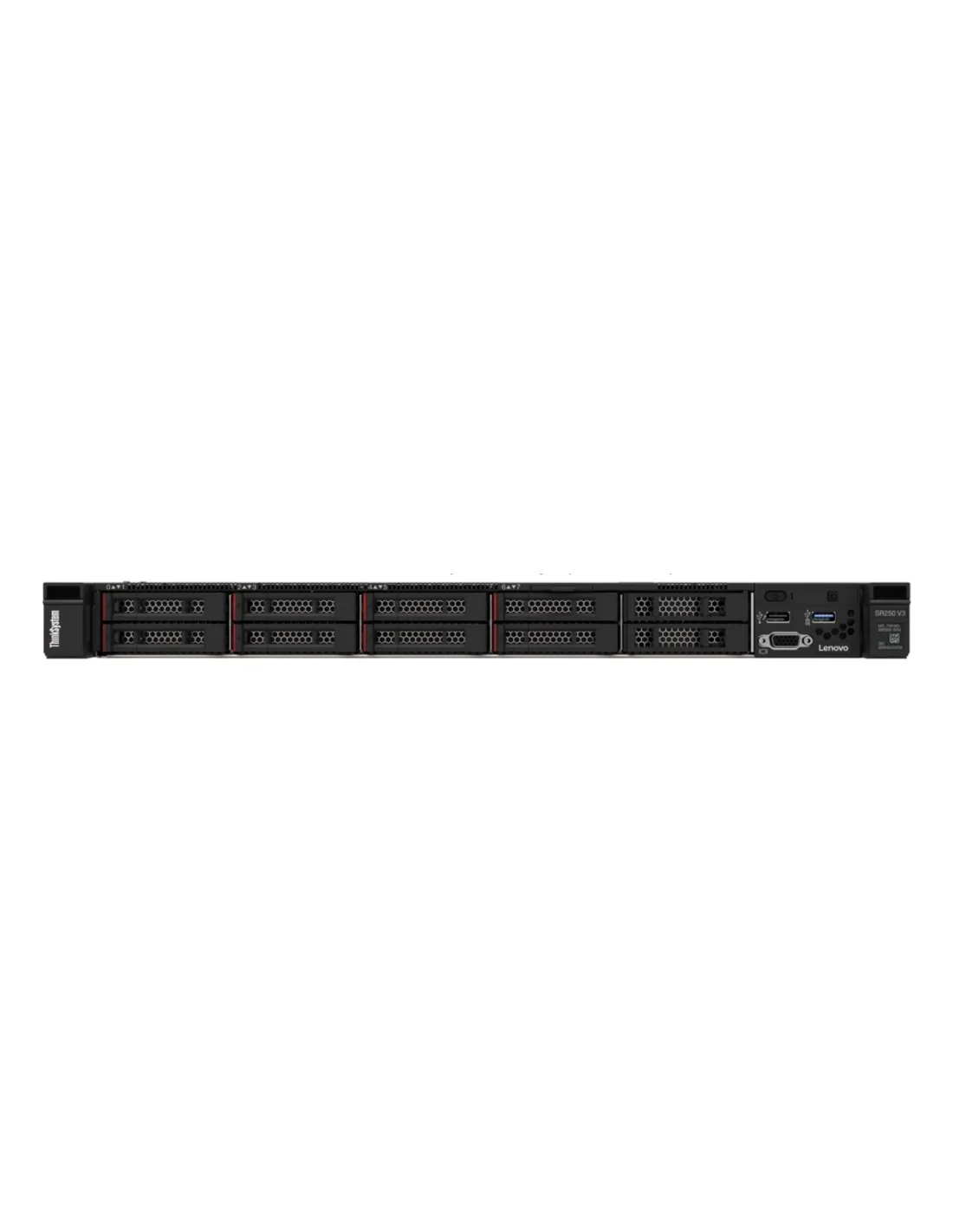

The Lenovo ThinkSystem SR250 V3 is a 1U rack server configured with a single Intel Xeon 6353P processor. It has 8 cores, 24MB cache, running at 2.7GHz with boost up to 5.4GHz, 32GB DDR5 SDRAM at 4800MHz, Broadcom BCM5720 LAN, and an 800W power supply.
Who it's for
Ideal for small to medium businesses or IT teams needing a compact rack server with moderate processing power and memory for general workloads or light virtualization.
Why it's good
This server balances performance and energy efficiency in a 1U form factor, making it suited to constrained rack space. The DDR5 memory helps with faster data throughput.
When to choose it
Choose the SR250 V3 if you require a space-saving server with up-to-date processor and memory technology but don't need high core counts or redundant power supplies.
Specifications
| Processor | |
|---|---|
| Processor cache | 24 MB |
| Processor frequency | 2.7 GHz |
| Processor boost frequency | 5.4 GHz |
| Number of processors installed | 1 |
| Processor model | 6353P |
| Processor cores | 8 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel C266 |
| Processor family | Intel® Xeon® |
| Performance cores | 8 |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Storage | |
| Supported RAID controllers | 545-8i |
| Supported storage drive interfaces | SAS, Serial ATA |
| RAID support | Yes |
| Internal drive bays | 8 |
| Graphics | |
| Maximum graphics card memory | 16 MB |
| On-board graphics card | Yes |
| Network | |
| LAN controller | Broadcom BCM5720 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
| Performance | |
| Compatible operating systems | Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Performance management | XClarity Controller Platinum |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
| Compatible operating systems | Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Power | |
| Number of redundant power supplies supported | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply input frequency | 50/60 Hz |
| Power supply | 800 W |
| Power supply input voltage | 100 - 240 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
| Management features | |
| Performance management | XClarity Controller Platinum |
| Technical details | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Chassis type | Rack (1U) |
| Supported storage drives form factor (rear) | 2.5" |
| Weight & dimensions | |
| Width | 434.4 mm |
| Height | 43 mm |
| Depth | 561 mm |
Please ask Creative Systems to verify compatibility with your setup and check stock or potential configuration options.
