What it is

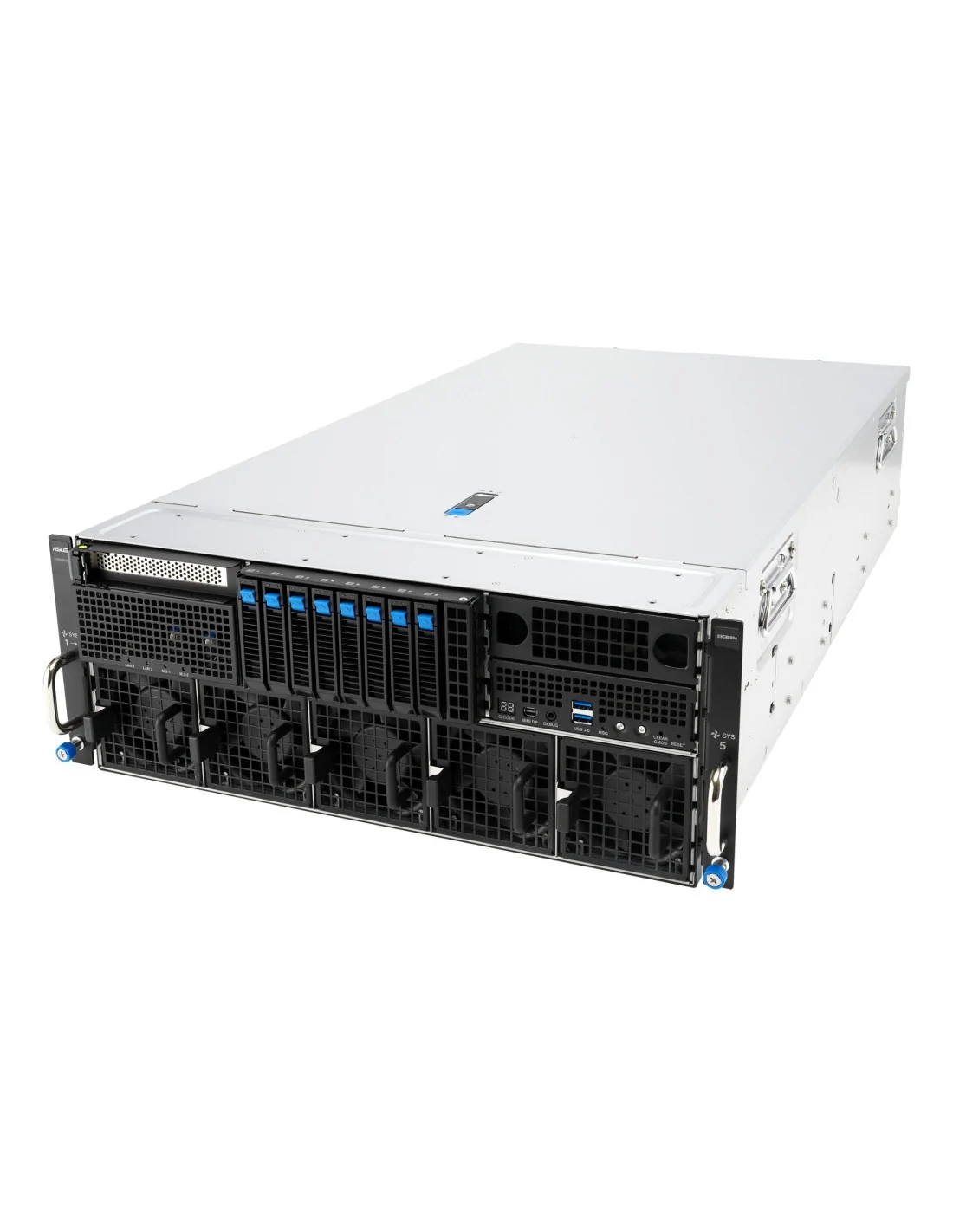

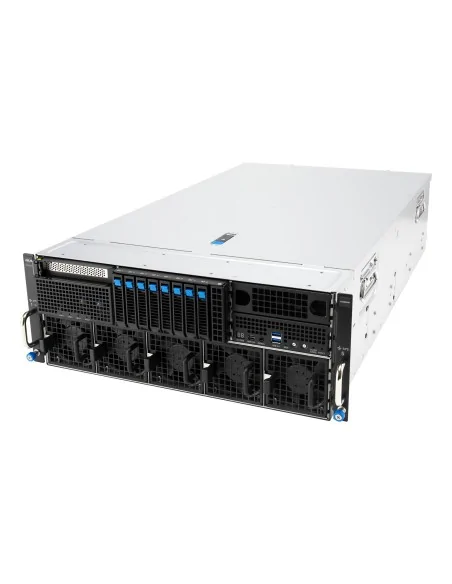

The ASUS ESC8000A-E13 is a 4U rackmount barebones server chassis designed to support dual AMD EPYC 9005 series processors using the SP5 (LGA 6096) socket. It accommodates up to 24 DDR5 memory modules and offers eight 2.5" hot-swap drive bays, powered by a 3200W power supply.
Who it's for
This chassis suits data centre setups or enterprise environments that require heavy processing power from dual AMD EPYC CPUs and ample memory capacity. It's for users who have specific hardware in mind and want a flexible platform to build or upgrade a server with tailored components.
Why it's good
It provides a robust foundation capable of handling demanding workloads with support for the latest AMD EPYC processors and DDR5 RAM. The hot-swap bay design simplifies storage management and maintenance, while the large power supply supports high-performance components.
When to choose it
Opt for this chassis if your project or upgrade calls for a scalable server platform with dual AMD EPYC CPU support and DDR5 memory. Make sure the CPU and other components you plan to use are compatible with the SP5 socket and chassis size before ordering.
Specifications
| Hard drive | |
|---|---|
| Hot-swap HDD bays | Yes |
| Processor | |
| Built-in processor | No |
| Processor socket | LGA 6096 |
| Processor family | AMD EPYC |
| Number of processors supported | 2 |
| Compatible processor series | AMD EPYC 9005 |
| Processor manufacturer | AMD |
| Design | |
| 80 PLUS certification | 80 PLUS Titanium |
| Certification | BSMI, CB, CE, FCC(Class A), RCM |
| LED indicators | Yes |
| Product colour | Silver |
| Chassis type | Rack (4U) |
| Memory | |
| Supported RDIMM clock speeds | 6400,5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128GB |
| Number of DIMM slots | 24 |
| Maximum internal memory | 3 TB |
| Storage | |
| Number of storage drives supported | 8 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5" |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 0 |
| IPMI LAN (RJ-45) port | Yes |
| Mini DisplayPorts quantity | 1 |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 11 |
| Technical details | |
| Number of storage drives supported | 8 |
| Certification | BSMI, CB, CE, FCC(Class A), RCM |
| Chassis type | Rack (4U) |
| Colour | |
| Product colour | Silver |
| Indication | |
| LED indicators | Yes |
| Power | |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Number of redundant power supplies supported | 4 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 3200 W |
| 80 PLUS certification | 80 PLUS Titanium |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Weight & dimensions | |
| Width | 800 mm |
| Weight | 42 kg |
| Height | 175 mm |
| Depth | 439.5 mm |
| Package weight | 44.2 kg |
| Packaging data | |
| Package weight | 44.2 kg |
Contact Creative Systems to confirm compatibility and stock details before making your order.
