What it is

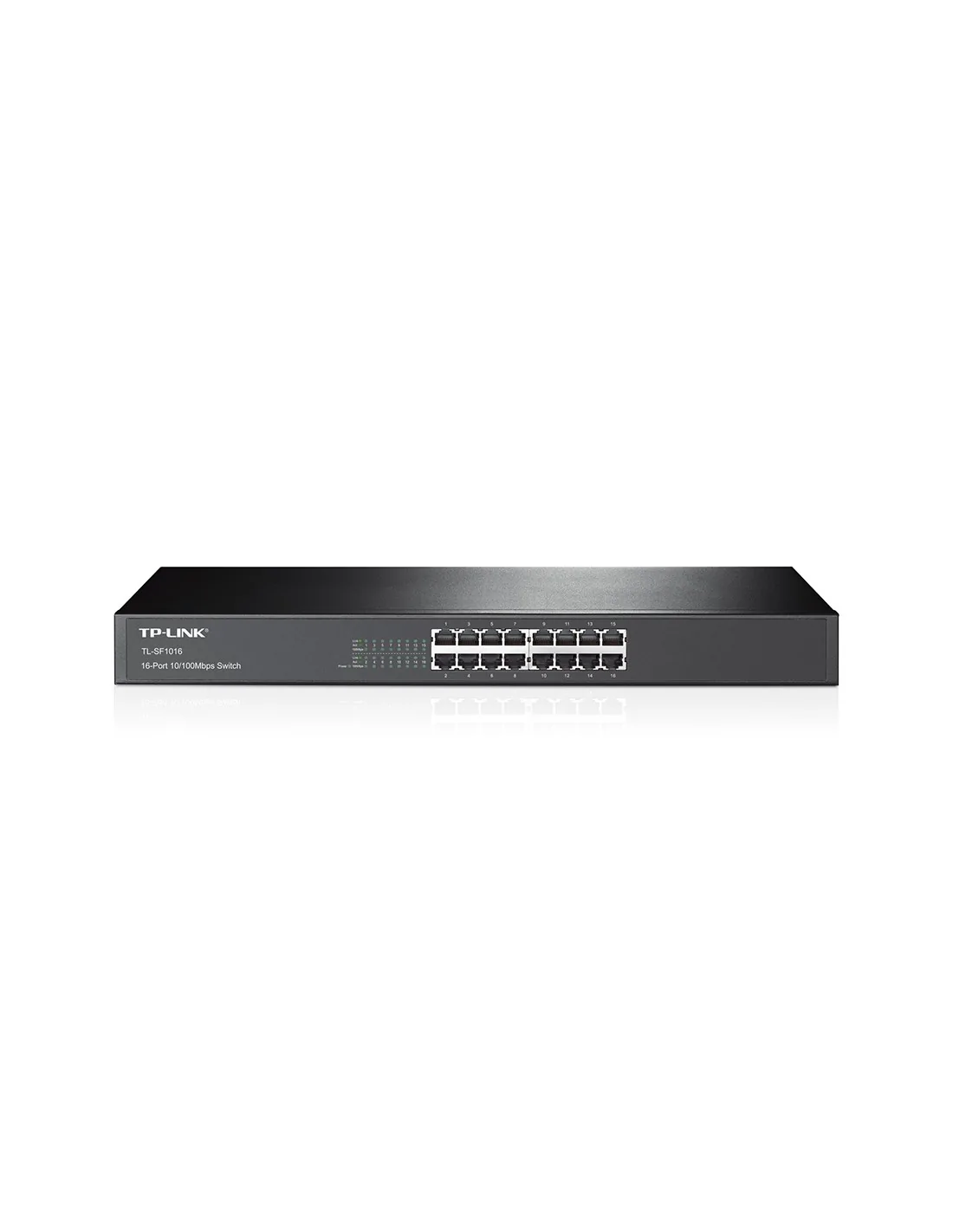

This is a TP-LINK TL-SF1016 unmanaged network switch featuring 16 Fast Ethernet (10/100Mbps) RJ45 ports, designed for rackmount installation.
Who it's for
Ideal for small setups or existing networks needing simple expansion of 10/100Mbps connections without added management or complexity.
Why it's good
It offers straightforward, plug-and-play connectivity with full-duplex support and standard IEEE protocols, making it reliable for basic network traffic.
When to choose it
Opt for this switch when you require multiple 100Mbps ports in a compact rackmount form and don’t need management features or gigabit speeds.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Packet buffer memory | 2 MB |
| MAC address table | 8000 entries |
| Switching capacity | 3.2 Gbit/s |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 2.23 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
| Performance | |
| Packet buffer memory | 2 MB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 2 MB |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Contact us to confirm this model fits your network and to discuss stock availability or possible alternatives.
