What it is

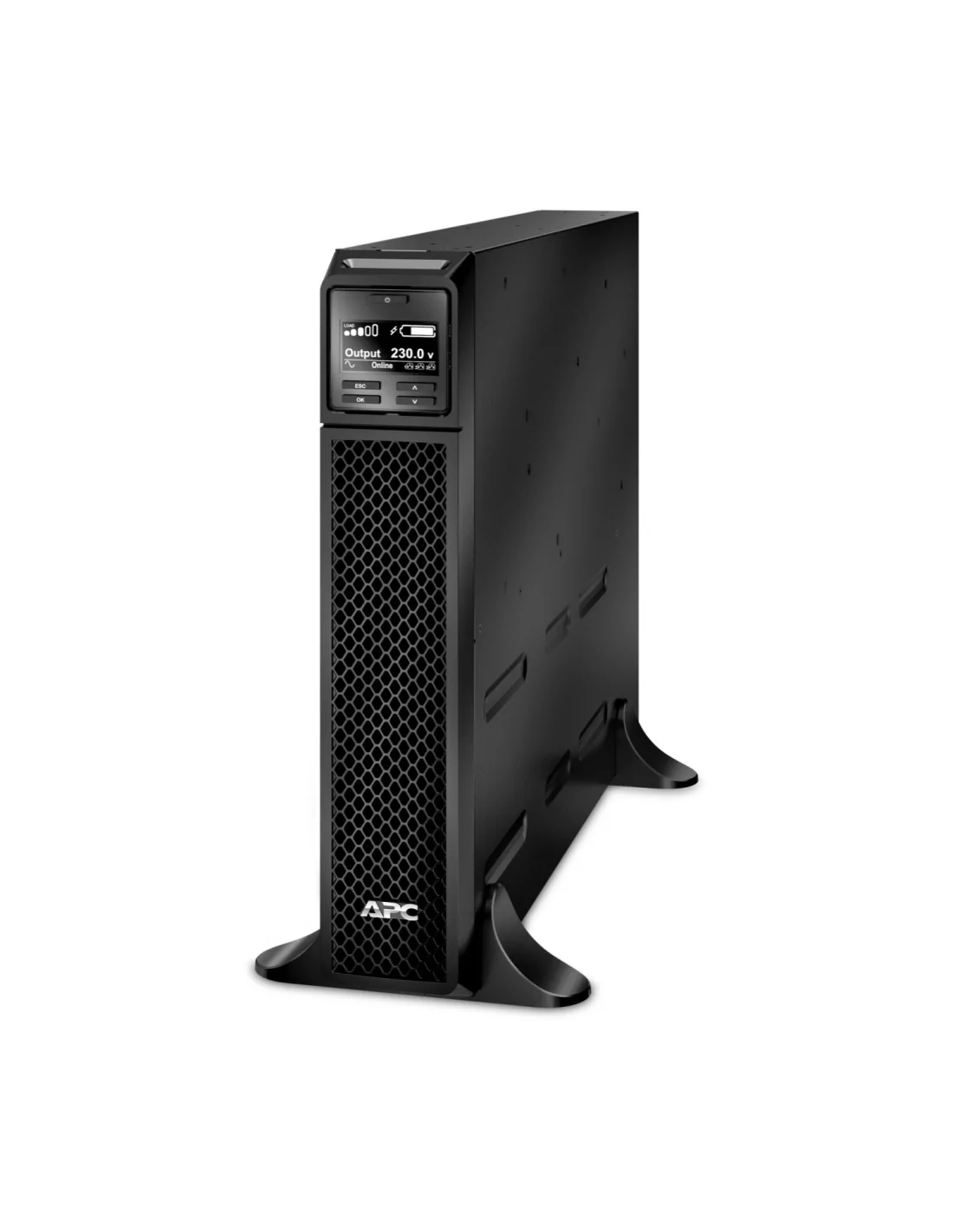

The APC Smart-UPS On-Line SRT1500XLI is a tower UPS designed to provide continuous clean power with a 1500VA/1500W capacity. It supports 230V input with six C13 IEC outlets and features a SmartSlot for additional management options. This model offers extended runtime for critical loads but does not include a rail kit.
Who it's for
This UPS suits small to medium-sized setups needing reliable, online double-conversion power protection in a tower form. Ideal for office servers, networking gear, or critical equipment requiring consistent power quality and some extended battery runtime without rackmount requirements.
Why it's good
Its online double-conversion design ensures zero transfer time to battery, keeping your equipment running without interruption during power issues. The extended runtime capability supports longer backup periods, and six C13 outlets provide versatile connection options without needing extra power distribution.
When to choose it
Choose this unit when you need a tower UPS with robust power protection and the possibility of extended runtime but don’t require rackmount installation or rail kits. It’s a practical choice if your equipment fits a tower format and you need a smart management interface.
Specifications
| Power | |
|---|---|
| Output power | 1500 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 432 J |
| Emergency Power Off (EPO) | Yes |
| Crest factor | 3:1 |
| Output power capacity | 1.5 kVA |
| Ports & interfaces | |
| Cable length | 1.83 m |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| SmartConnect port | No |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| LED indicators | Yes |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output power | 1500 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 432 J |
| Emergency Power Off (EPO) | Yes |
| Noise level | 50 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 1.5 kVA |
| Input frequency | 40/70 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, EAC |
| Cable length | 1.83 m |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | Green Premium |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 2573.19 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CE, EAC |
| Compliance certificates | RoHS |
| Packaging content | |
| Manual | Yes |
| Management card included | No |
| Sustainability | |
| Sustainability certificates | Green Premium |
| Weight & dimensions | |
| Package width | 594 mm |
| Package depth | 749 mm |
| Package height | 246 mm |
| Weight | 20.5 kg |
| Width | 85 mm |
| Package weight | 29.6 kg |
| Height | 432 mm |
| Depth | 505 mm |
| Packaging data | |
| Manual | Yes |
| Package width | 594 mm |
| Package depth | 749 mm |
| Package height | 246 mm |
| Package weight | 29.6 kg |
| Management card included | No |
| Logistics data | |
| Products per pallet | 12 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 2573.19 |
