What it is

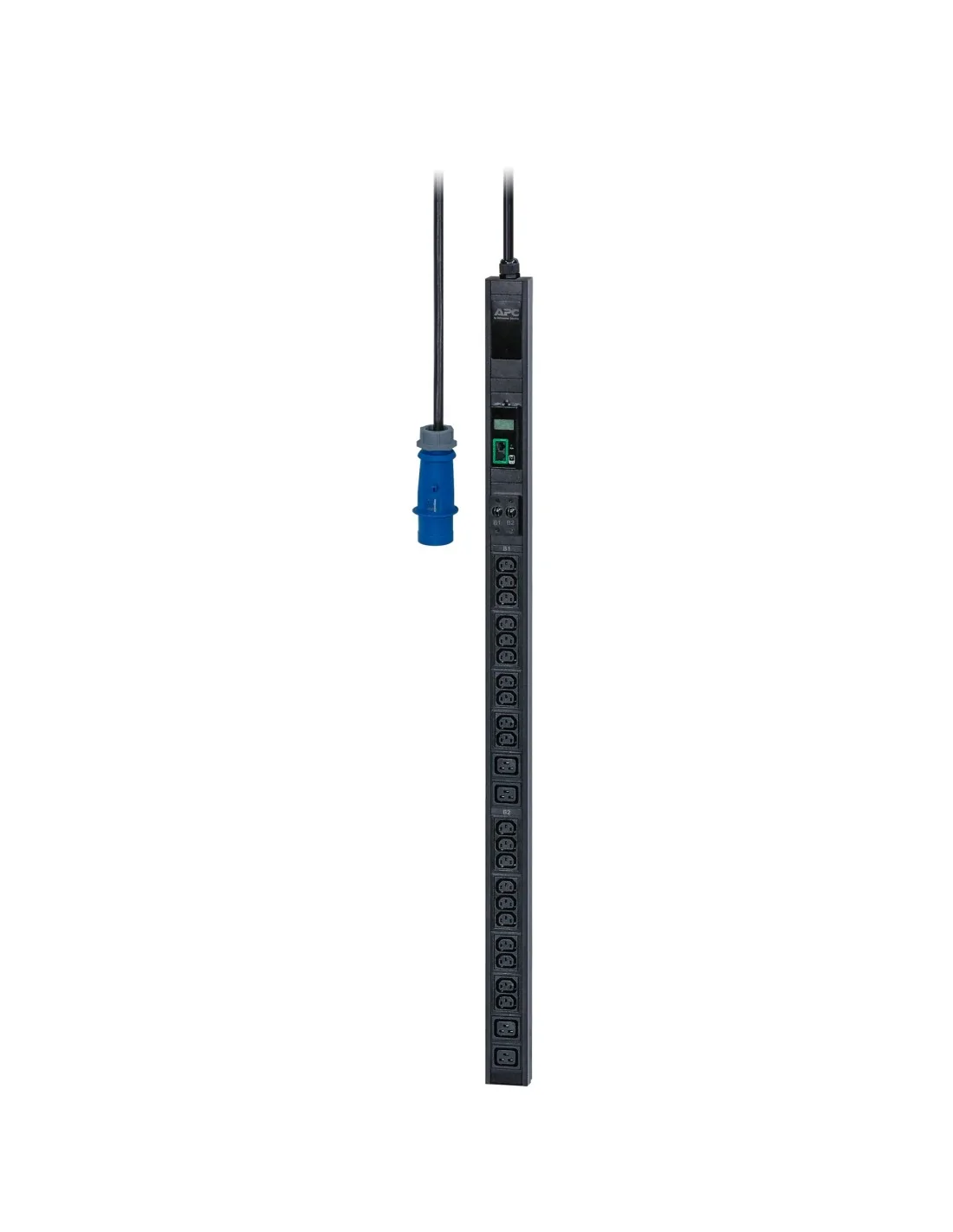

The APC EPDU1132M is a metered vertical 0U rack power distribution unit for single-phase power. It supports up to 32 A at 7.4 kW with 20 C13 and 4 C19 outlets, and includes an IEC60309 2P+E inlet plus an LCD display.
Who it's for
This PDU suits data centres or racks needing to monitor power usage closely, with high current capacity and multiple outlets in a space-saving vertical 0U format.
Why it's good
The built-in LCD allows onsite reading of power consumption, helping manage load and energy use. Its robust aluminium housing and certifications ensure reliability and safety.
When to choose it
Select this unit when you require real-time metering in a large outlet count PDU without adding extra rack depth, ideal for critical or high-density installations.
Specifications
| Design | |
|---|---|
| On/off switch | No |
| Type | Single-phase |
| PDU types | Metered |
| Mounting | Vertical |
| Display | LCD |
| Product colour | Black |
| Certification | CE, TUV |
| Rack capacity | 0U |
| Housing material | Aluminium |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 60309 |
| Features | |
| LED indicators | Yes |
| Certification | CE, TUV |
| Management features | |
| Firmware upgradeable | Yes |
| Ergonomics | |
| LED indicators | Yes |
| Display | LCD |
| Power | |
| Maximum power | 7360 W |
| Nominal input voltage | 200/208/230 V |
| Nominal output voltage | 230 V |
| Maximum current | 32 A |
| Maximum input current per phase | 32 A |
| Load capacity | 7360 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | CE, TUV |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Weight | 3.72 kg |
| Width | 62 mm |
| Depth | 44 mm |
| Height | 1175 mm |
| Package width | 160 mm |
| Package depth | 110 mm |
| Package height | 1320 mm |
| Package weight | 4.48 kg |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 110 mm |
| Package height | 1320 mm |
| Package weight | 4.48 kg |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 28890.42 |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 28890.42 |
Speak with Creative Systems to confirm this PDU fits your rack and to verify current stock and delivery options.
