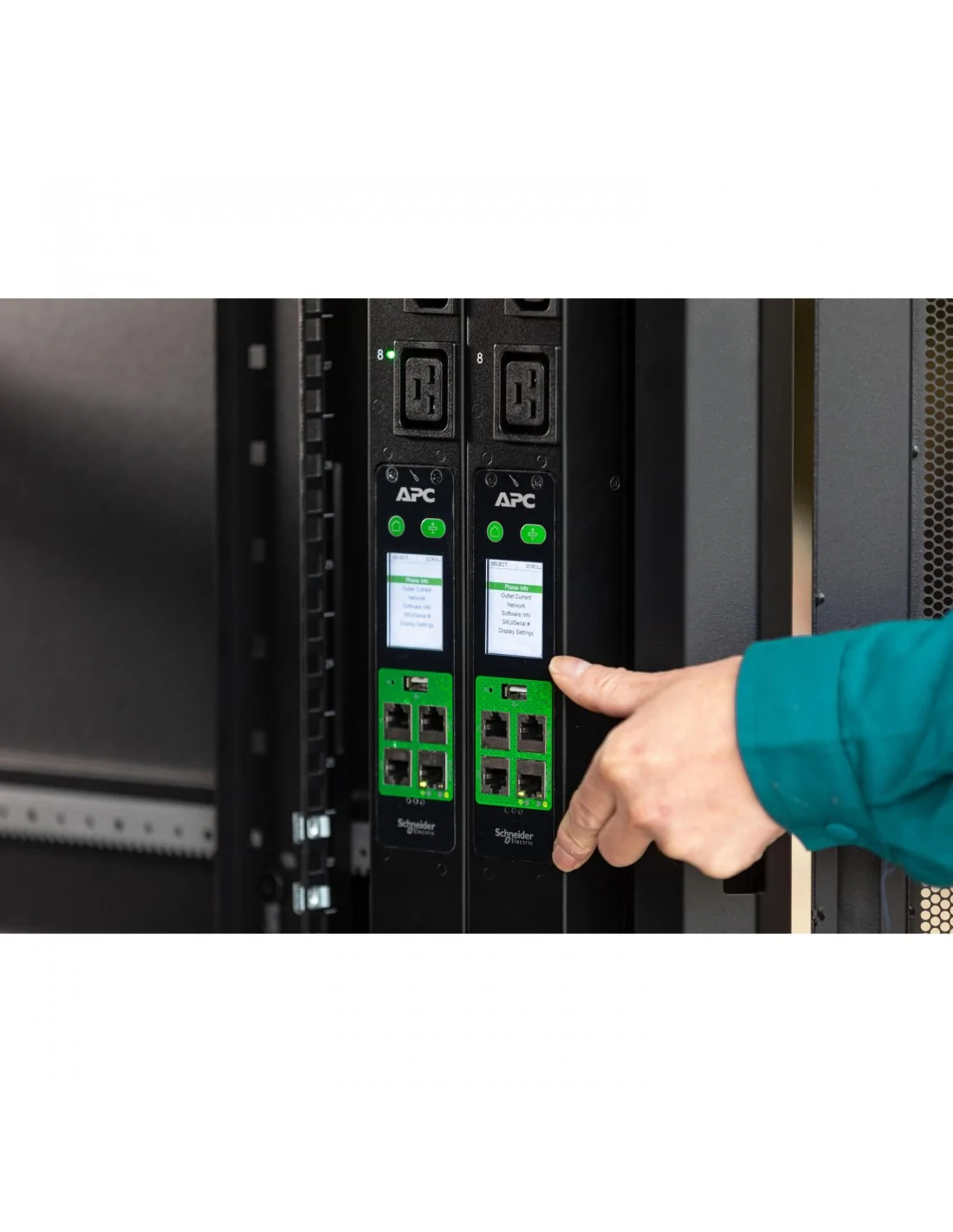

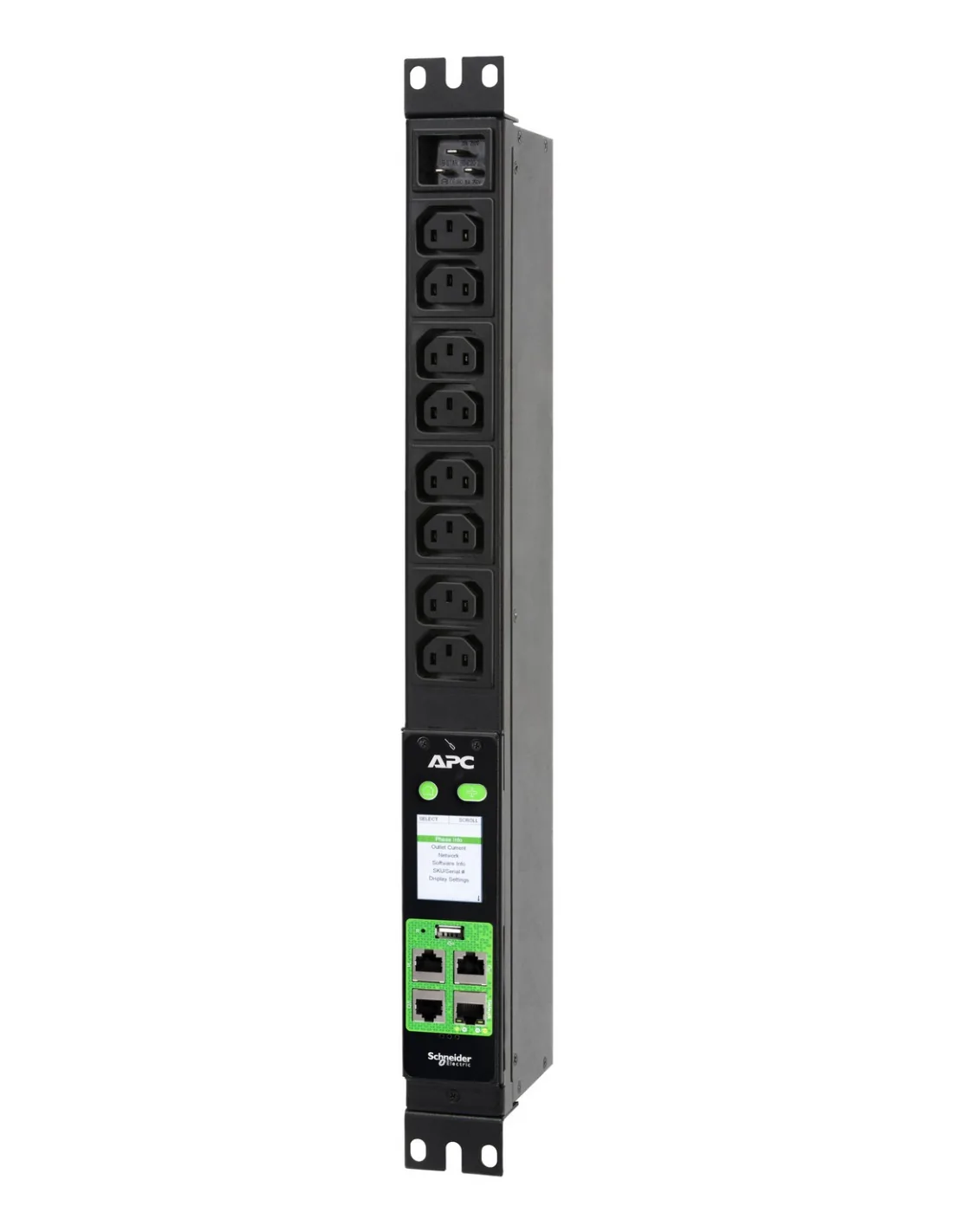

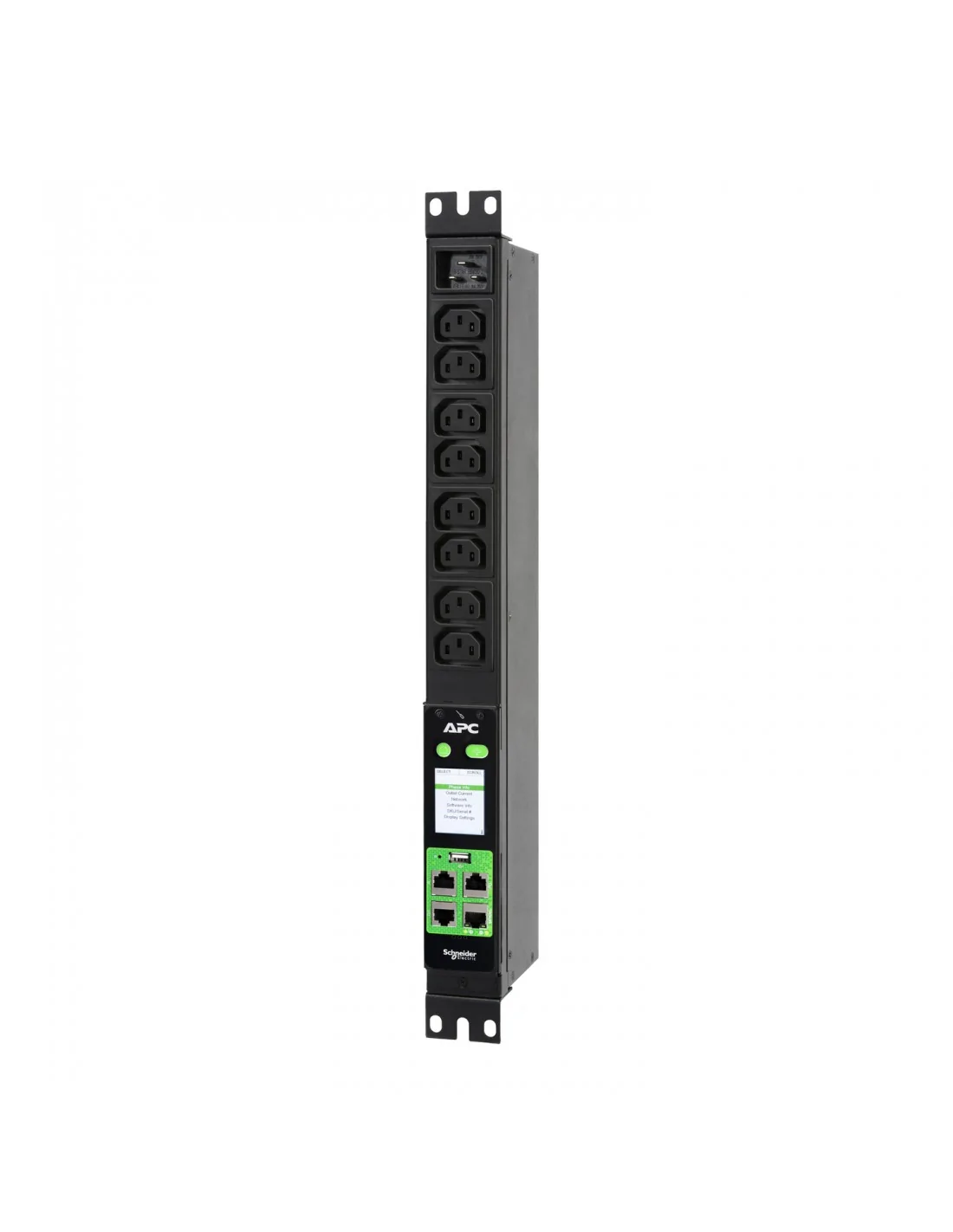

Schneider Easy Metered Rack PDU EPDU2016M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU2016M has IEC 60320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The green packaging includes cable, installation guide, user manual and horizontal mounting brackets for quick and easy mounting in the rear of the enclosure. This can operate from -5° to +50°C temperation range and comes with 2 year of standard warranty. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Metered |
| Mounting | Vertical |
| Product colour | Black |
| Rack capacity | 1U |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C13 coupler |
| Power | |
| Nominal input voltage | 230 V |
| Nominal output voltage | 208 V |
| Output voltage | 208 V |
| Maximum current | 16 A |
| Load capacity | 3680 VA |
| AC input frequency | 50/60 Hz |
| Number of phases | 1 |
| Certificates | |
| Compliance certificates | CE, UKCA |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Weight | 1.7 kg |
| Width | 482 mm |
| Depth | 100 mm |
| Height | 44 mm |
| Package width | 210 mm |
| Package depth | 570 mm |
| Package height | 680 mm |
| Package weight | 3 kg |
| Packaging data | |
| Package width | 210 mm |
| Package depth | 570 mm |
| Package height | 680 mm |
| Package weight | 3 kg |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 649 |
| Compliance certificates | CE, UKCA |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 649 |
