What it is

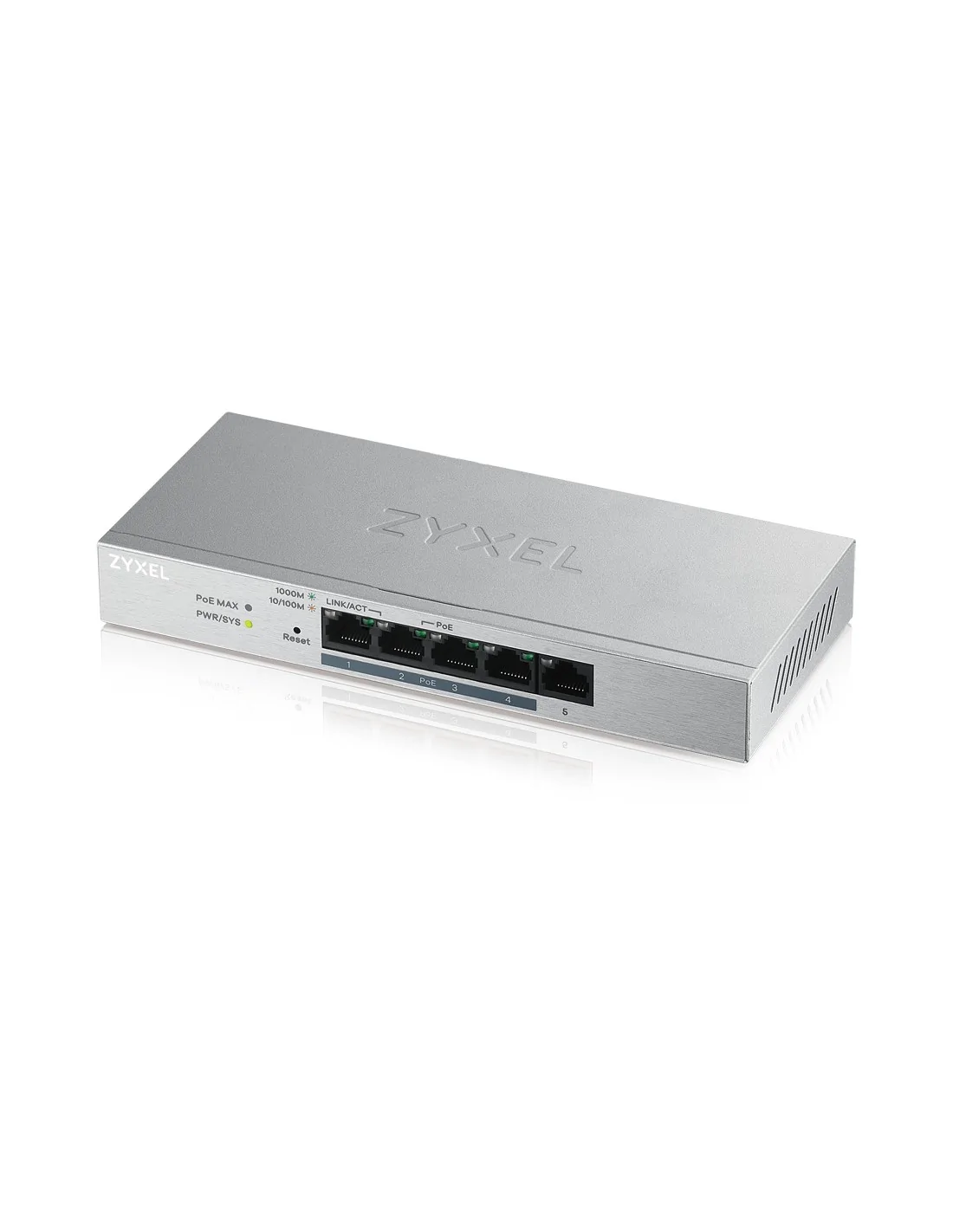

The Zyxel GS1200-5HP v2 is a 5-port Gigabit Ethernet switch with Power over Ethernet (PoE) capabilities and web-based management.
Who it's for
Designed for small offices or network setups that require simple managed switching with PoE to power devices like IP phones or wireless access points.
Why it's good
This switch supports several IEEE standards, IGMP snooping, and features like port mirroring and link aggregation to optimise traffic and network performance. The web interface simplifies configuration without advanced network knowledge.
When to choose it
Pick this model when you need a compact, managed PoE switch for a small network that benefits from easy monitoring and some advanced features without added complexity.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Virtual LAN features | Port-based VLAN |
| Virtual LAN features | |
| Virtual LAN features | Port-based VLAN |
| Data transmission | |
| Number of multicast groups filtered | 20 |
| Packet buffer memory | 0.1 MB |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 0.1 MB |
| Stackable | No |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Grey |
| Stackable | No |
| Firmware upgradeable | Yes |
| Rack mounting | No |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Security | |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Number of multicast groups filtered | 20 |
| Multicast support | Yes |
| Certificates | |
| Safety | LVD EN60950-1 |
| Certification | CE, FCC, C-Tick, Class A |
| Memory | |
| Packet buffer memory | 0.1 MB |
| Design | |
| Reset button | Yes |
| On/off switch | Yes |
| Safety | LVD EN60950-1 |
| Product colour | Grey |
| Stackable | No |
| LED indicators | Link, PoE, Power |
| Certification | CE, FCC, C-Tick, Class A |
| Rack mounting | No |
| Indication | |
| LED indicators | Link, PoE, Power |
| Power | |
| Power consumption (max) | 72 W |
| Output current | 1.3 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 193 mm |
| Depth | 84 mm |
| Height | 26 mm |
| Weight | 392 g |
| Packaging data | |
| Package type | Box |
| Package width | 210 mm |
| Package depth | 132 mm |
| Package height | 78 mm |
| Package weight | 950 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Contact Creative Systems for assistance verifying this switch fits your specific network setup and power requirements.
