What it is

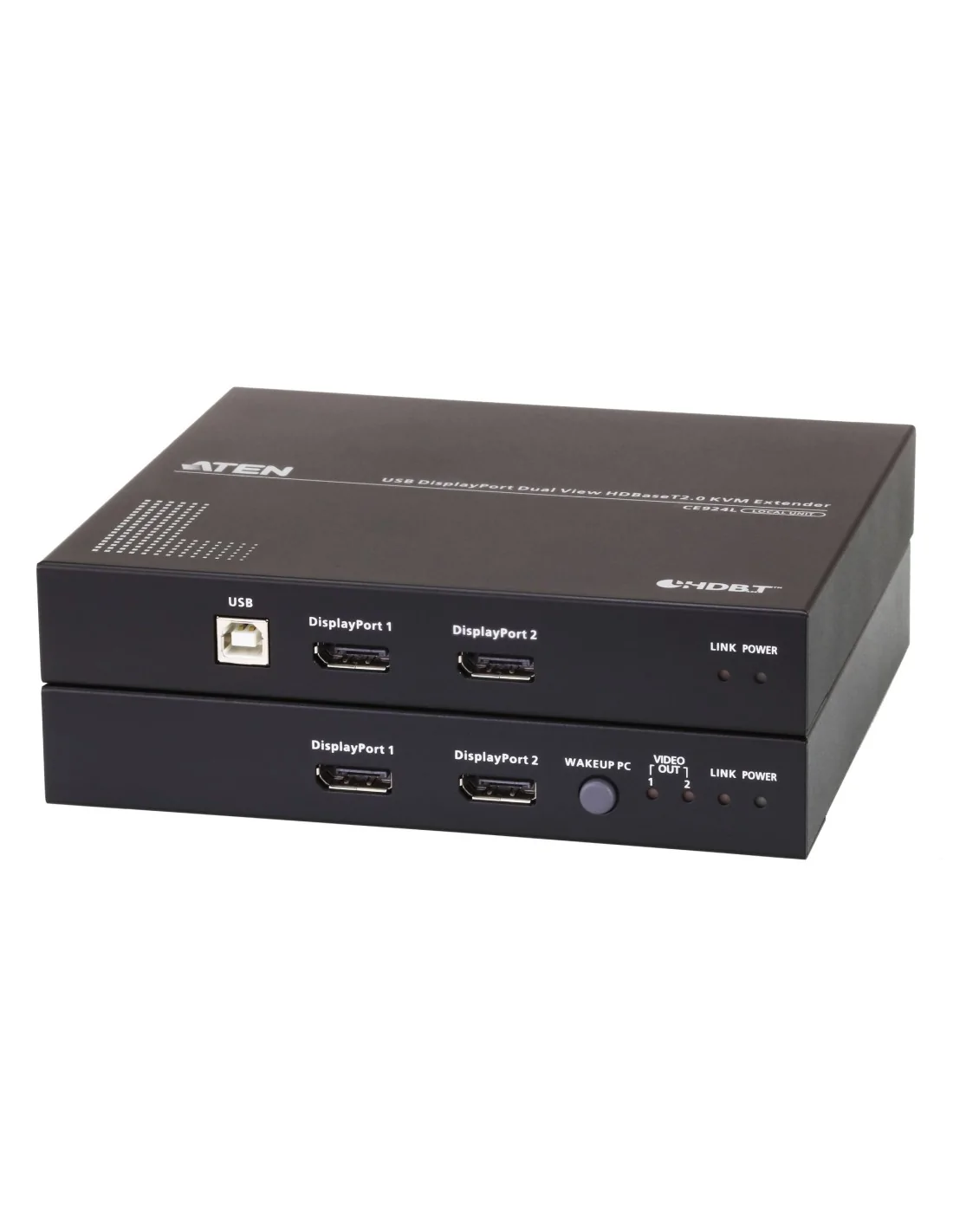

The ATEN CE924 is a wired USB DisplayPort KVM extender supporting dual view HDBaseT™ 2.0. It extends high-resolution video signals up to 100m, delivering 4K quality at 4096 x 2160 pixels for single-view setups.
Who it's for
This extender fits users who require remote KVM (keyboard, video, mouse) operation with high-resolution DisplayPort video, such as in control rooms or multi-workstation setups.
Why it's good
It uses HDBaseT 2.0 to reliably transmit video and USB signals over long distances via a single cable, with metal construction for durability and LED indicators for status monitoring.
When to choose it
Consider this if you need to extend a DisplayPort KVM signal up to 100m with excellent video quality and a robust wired connection.
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum digital resolution | 4096 x 2160 pixels |
| Material | Metal |
| LED indicators | Yes |
| Transmitter | |
| Transmitter video port type | DisplayPort |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | DisplayPort |
| RJ-45 ports quantity (receiver) | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Transmitter width | 15.4 cm |
| Transmitter depth | 17.4 cm |
| Transmitter height | 2.88 cm |
| Transmitter weight | 820 g |
| Receiver width | 15.6 cm |
| Receiver depth | 17.4 cm |
| Receiver height | 2.88 cm |
| Receiver weight | 850 g |
| Ports & interfaces | |
| USB port type | USB Type-A |
| Packaging data | |
| AC adapter included | Yes |
| Cables included | DisplayPort, USB Type-A to USB Type-B |
| Manual | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | DisplayPort, USB Type-A to USB Type-B |
| Manual | Yes |
Reach out to Creative Systems to confirm compatibility with your equipment and check stock availability before ordering.
