What it is

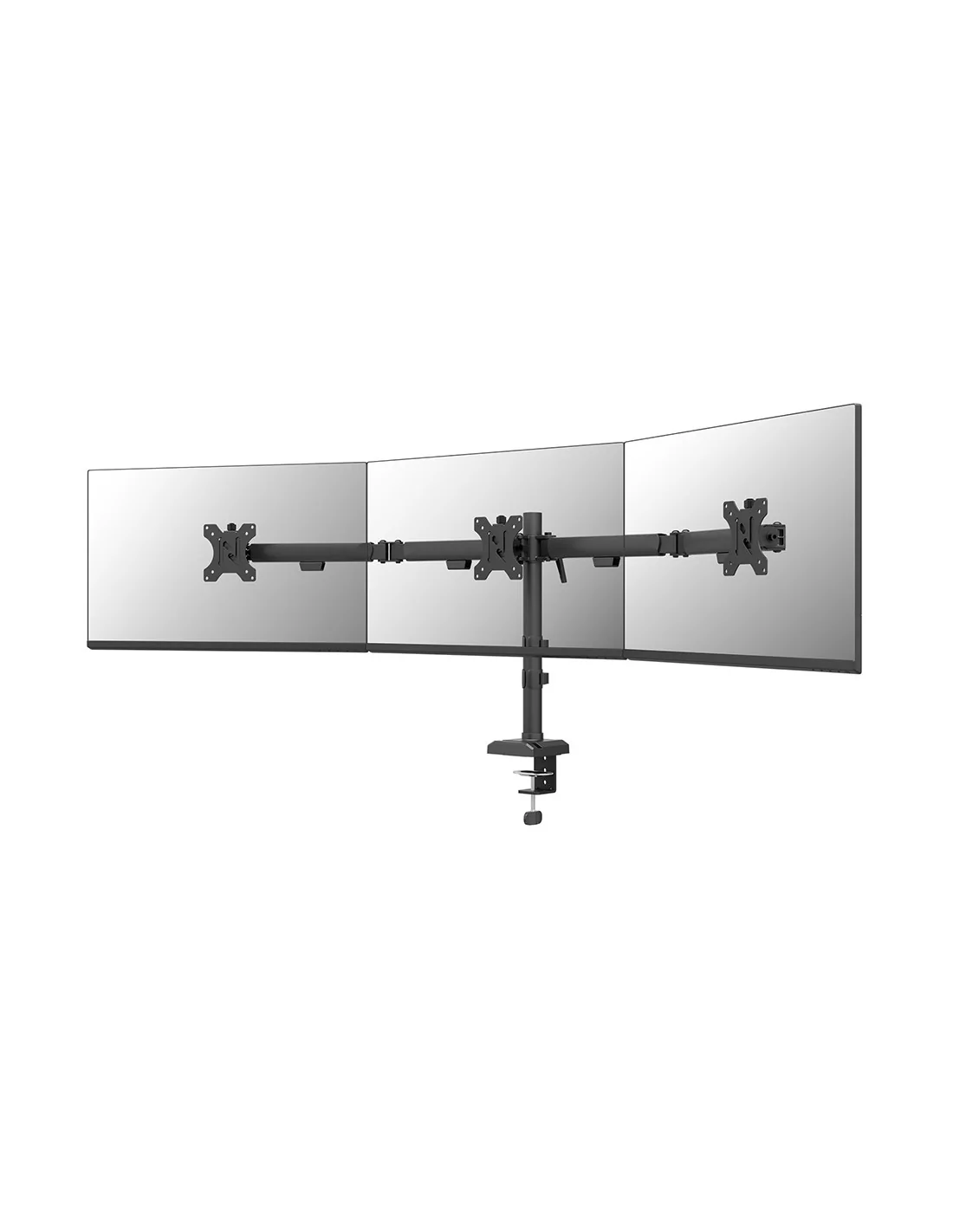

The Neomounts DS60-600BL3 is a triple monitor arm designed for screens between 10 and 27 inches. It supports up to 6 kg per display and uses a quick-fix mounting system. The product is packaged without plastic, reflecting environmental consideration.
Who it's for
This monitor arm suits users who need flexible positioning for up to three mid-sized monitors on desks between 1 and 5 cm thick. It’s good for office setups where space optimization and ergonomics matter.
Why it's good
It allows 180° stop adjustment to prevent over-rotation, ensuring safety and ease of use. With support for VESA 75x75 and 100x100 mounting patterns, it covers most standard monitors within the size and weight limits.
When to choose it
Pick this arm if you have three monitors of 10 to 27 inches, each not exceeding 6 kg, and a desk thickness in the 1-5 cm range. Avoid it if you have larger or heavier screens or thicker desks where it cannot clamp securely.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 6 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 5 cm |
| Minimum screen size | 25.4 cm (10") |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Number of displays supported | 3 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Distance to the wall (min) | 13.7 cm |
| Distance to the wall (max) | 60.1 cm |
| Maximum weight capacity | 6 kg |
| Maximum screen size | 68.6 cm (27") |
| Clamp mount desk thickness (max) | 5 cm |
| Grommet mount desk thickness (max) | 5 cm |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 137 - 601 mm |
| Height adjustment | Yes |
| Height adjustment range | 140 - 400 mm |
| Pivot angle | -180 - 180° |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -45 - 45° |
| Angle of rotation | 360° |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Width adjustment | 65.5 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Mounting type | Desk |
| Distance to the wall (min) | 13.7 cm |
| Distance to the wall (max) | 60.1 cm |
| Product colour | Black |
| Width adjustment range | 0 - 655 mm |
| Cable management | Yes |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Width | 1424 mm |
| Depth | 137 mm |
| Height | 450 mm |
| Weight | 4.81 kg |
| Package width | 322 mm |
| Package depth | 124 mm |
| Package height | 505 mm |
| Package weight | 5.3 kg |
| Packaging data | |
| Package width | 322 mm |
| Package depth | 124 mm |
| Package height | 505 mm |
| Package weight | 5.3 kg |
| Other features | |
| Width adjustment range | 0 - 655 mm |
| Warranty period | 5 year(s) |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 11.2 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 48 pc(s) |
| Master (outer) case net weight | 10.6 kg |
| Harmonized System (HS) code | 7326909890 |
Feel free to ask Creative Systems to verify if this arm fits your monitors and desk setup or to discuss alternatives if your screens fall outside these limits.
