What it is

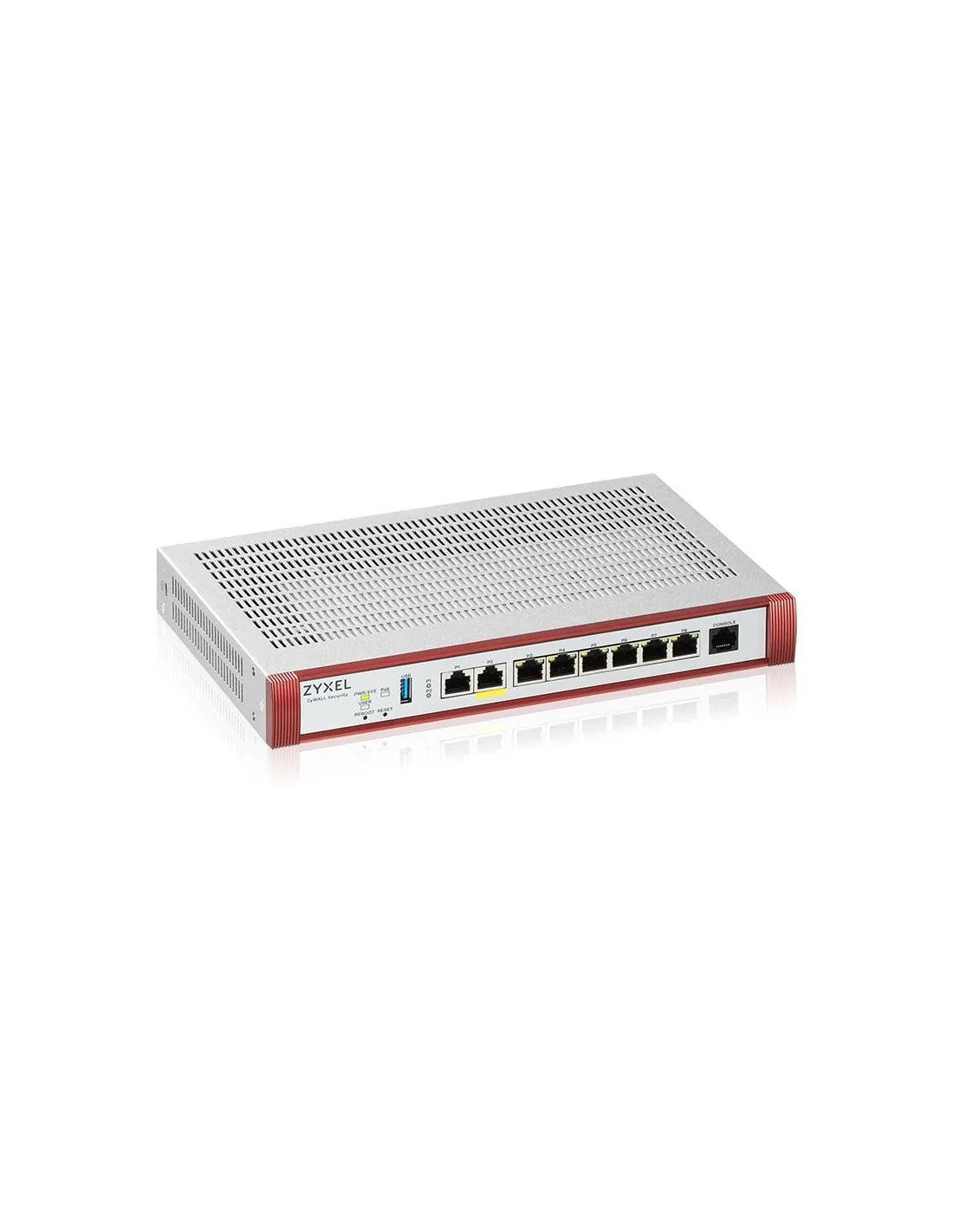

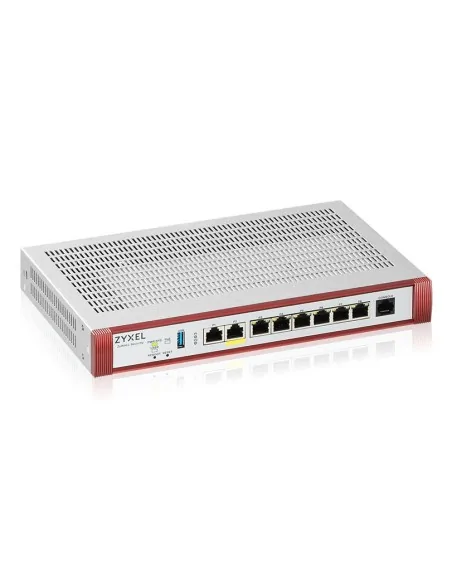

The Zyxel USGFLEX100HP-GB0102F is a hardware firewall offering up to 3 Gbps throughput, with integrated Unified Threat Management (UTM) and two PoE+ ports.
Who it's for
This device is suited for businesses or offices with up to 50 users that require robust security features while powering connected equipment via PoE+ ports.
Why it's good
Its performance meets moderate to high traffic demands with IPS/IDS and VPN capabilities, supporting up to 50 VPN tunnels and multiple VLANs, backed by a solid MTBF rating.
When to choose it
Choose this firewall when you need integrated security and PoE connectivity for a small to mid-size network aiming to protect devices without complex separate hardware.
Specifications
| Data transmission | |
|---|---|
| IPS/IDS throughput | 1500 Mbit/s |
| VPN (IMIX) throughput | 750 Mbit/s |
| Firewall throughput | 3 Gbit/s |
| Performance | |
| Mean time between failures (MTBF) | 550382.5753 h |
| Network | |
| VPN tunnels quantity | 50 |
| Number of VLANs | 16 |
| Security | |
| VPN support | IKEv2, IPSec, SSL |
| DDoS protection | Yes |
| Management features | |
| LED indicators | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 8 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Console port | RJ-45 |
| Design | |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 51.2 W |
| DC input voltage | 19 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Weight | 1.05 kg |
| Width | 216 mm |
| Depth | 143 mm |
| Height | 33 mm |
| Packaging data | |
| Package width | 278 mm |
| Package height | 189 mm |
| Package depth | 99 mm |
| Package weight | 1.91 kg |
| Technical details | |
| Rack mounting | Yes |
| Endurance | |
| Mean time between failures (MTBF) | 550382.5753 h |
Please check your network size and security needs with Creative Systems to ensure the USGFLEX100HP is the right fit.
