What it is

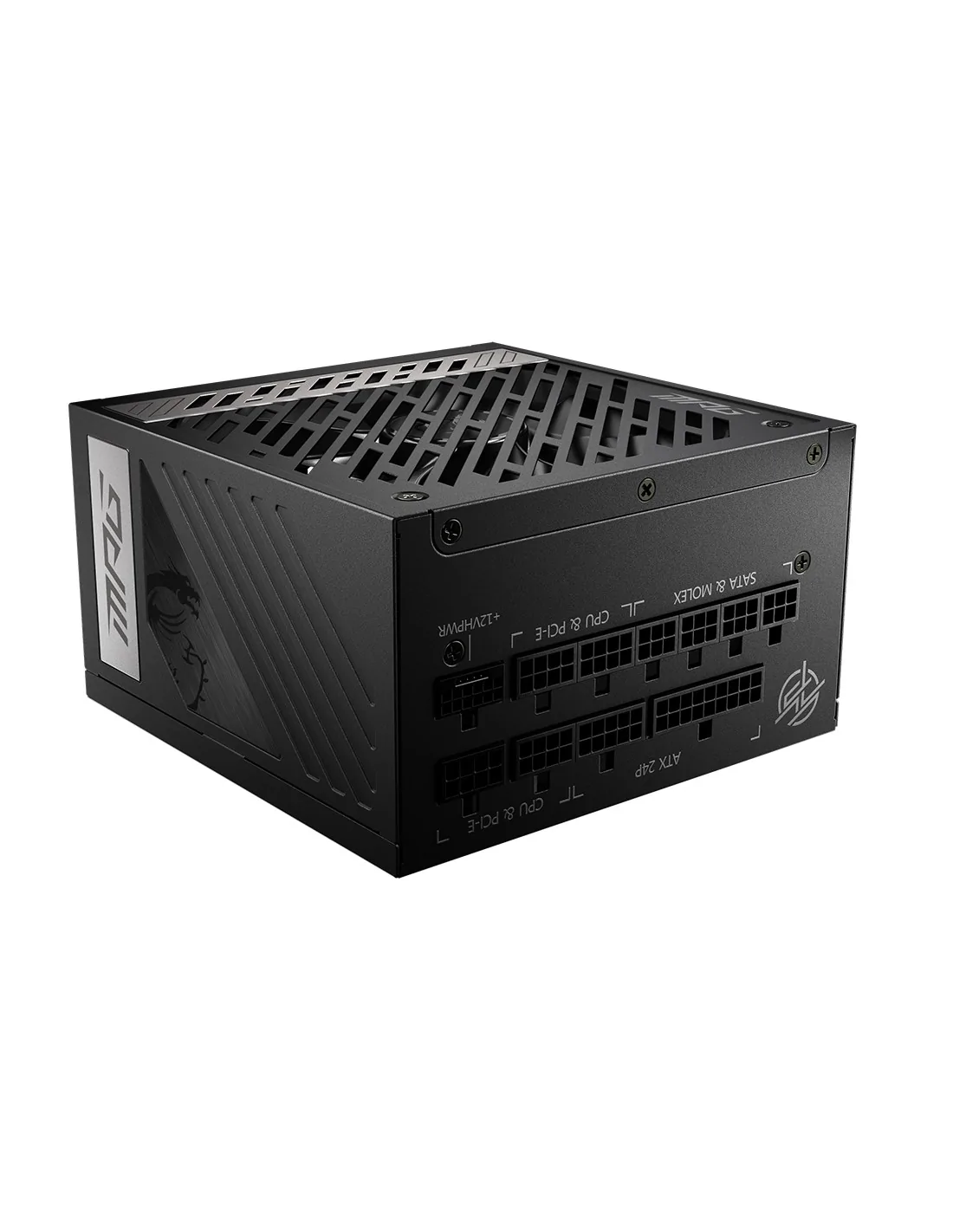

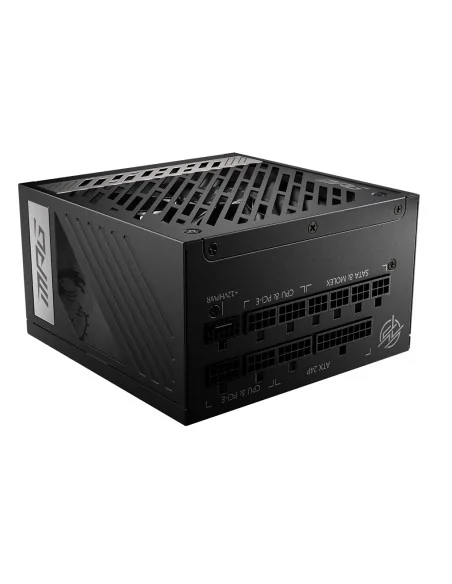

The MSI MPG A1000G PCIE5 is a 1000W power supply unit (PSU) with an 80 PLUS Gold efficiency rating, designed for demanding PC builds.
Who it's for
Suitable for users building or upgrading high-performance PCs that require stable, efficient power delivery, especially with PCIe 5.0 compatible systems.
Why it's good
This PSU includes a large 135mm fluid dynamic bearing fan for quiet, effective cooling and is certified for high energy efficiency to reduce wasted power and heat.
When to choose it
Opt for this PSU when you need reliable 1000W output with improved efficiency and ready support for newer motherboard and GPU standards.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | Black |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Cooling type | Active |
| Power | |
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 83.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Efficiency | 90% |
| Ports & interfaces | |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 500,650,700,850 mm |
| Peripheral (Molex) power cable length | 1100,500,650,700,850 mm |
| PCI Express power cable length | 75 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | No |
| PCI Express power connectors (6-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (8-pin) | 0 |
| Floppy disk drive connector | Yes |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| EPS cable length | 70 cm |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (12+4 pin) | 0 |
| PCI Express power connectors (12-pin) | 0 |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC/Server |
| ATX version | 3.0 |
| Bearing technology | FDB |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
| Other features | |
| EPS cable length | 70 cm |
Please check with us to confirm this PSU matches your system requirements and available stock.
