What it is

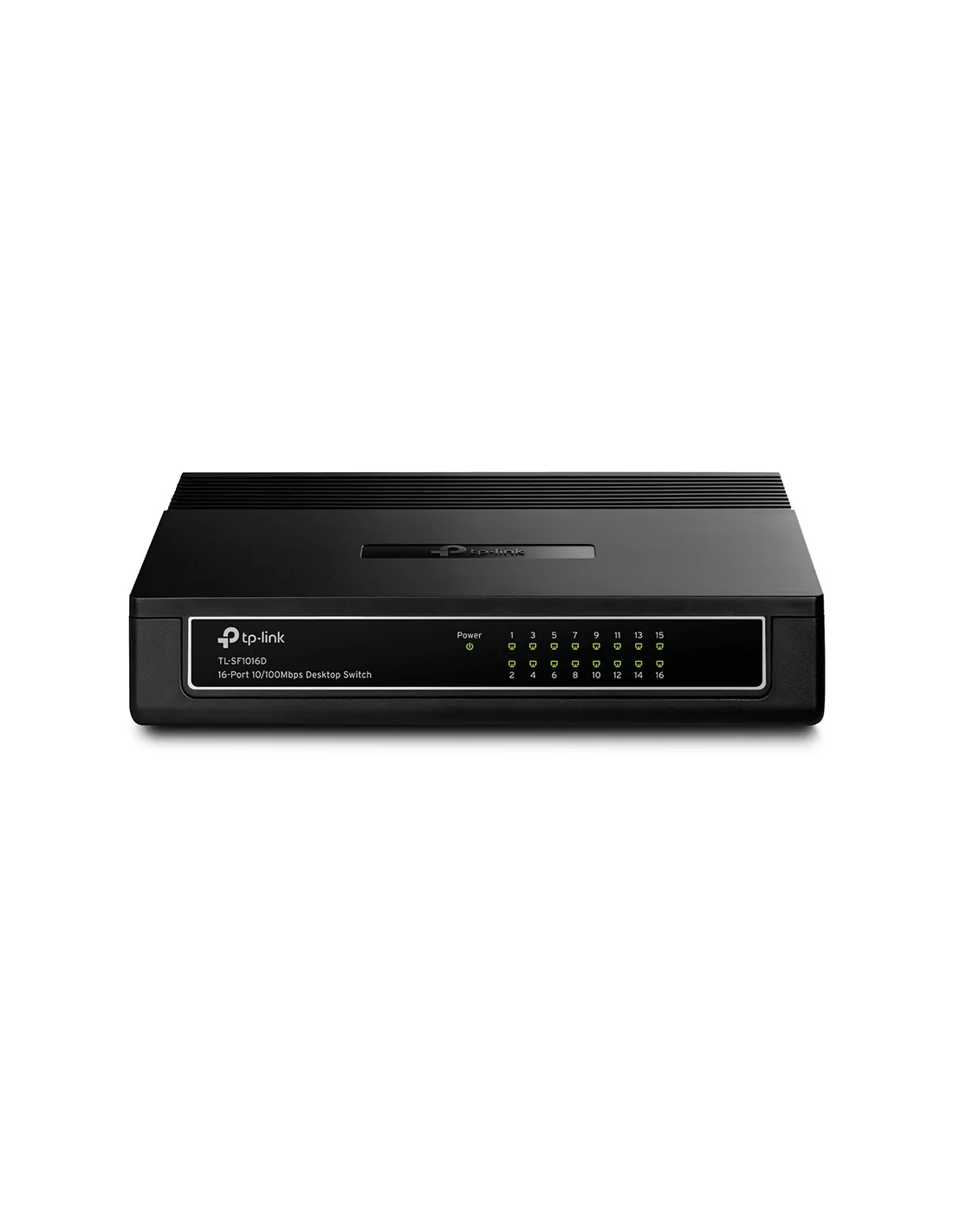

The TP-Link TL-SF1016D is a 16-port unmanaged Fast Ethernet switch designed for desktop or rackmount use, delivering 10/100 Mbps connectivity across all ports.
Who it's for
It fits environments needing multiple wired connections without management overhead, such as small to medium offices or network edge devices.
Why it's good
Supports IEEE 802.3 standards and auto MDI/MDI-X, simplifying cabling. No SFP modules included and no 10G support, so its focus is standard Fast Ethernet use.
When to choose it
Ideal if you require many wired ports for 10/100 Mbps connections without managed features, and your network design matches these specs.
Specifications
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Throughput | 2.38 Mpps |
| Packet buffer memory | 2 MB |
| MAC address table | 8000 entries |
| Switching capacity | 3.2 Gbit/s |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Certification | FCC, CE, RoHS |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 2.23 W |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Performance | |
| Packet buffer memory | 2 MB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 2 MB |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Contact Creative Systems to ensure this switch meets your network needs and to inquire about availability and options.
