What it is

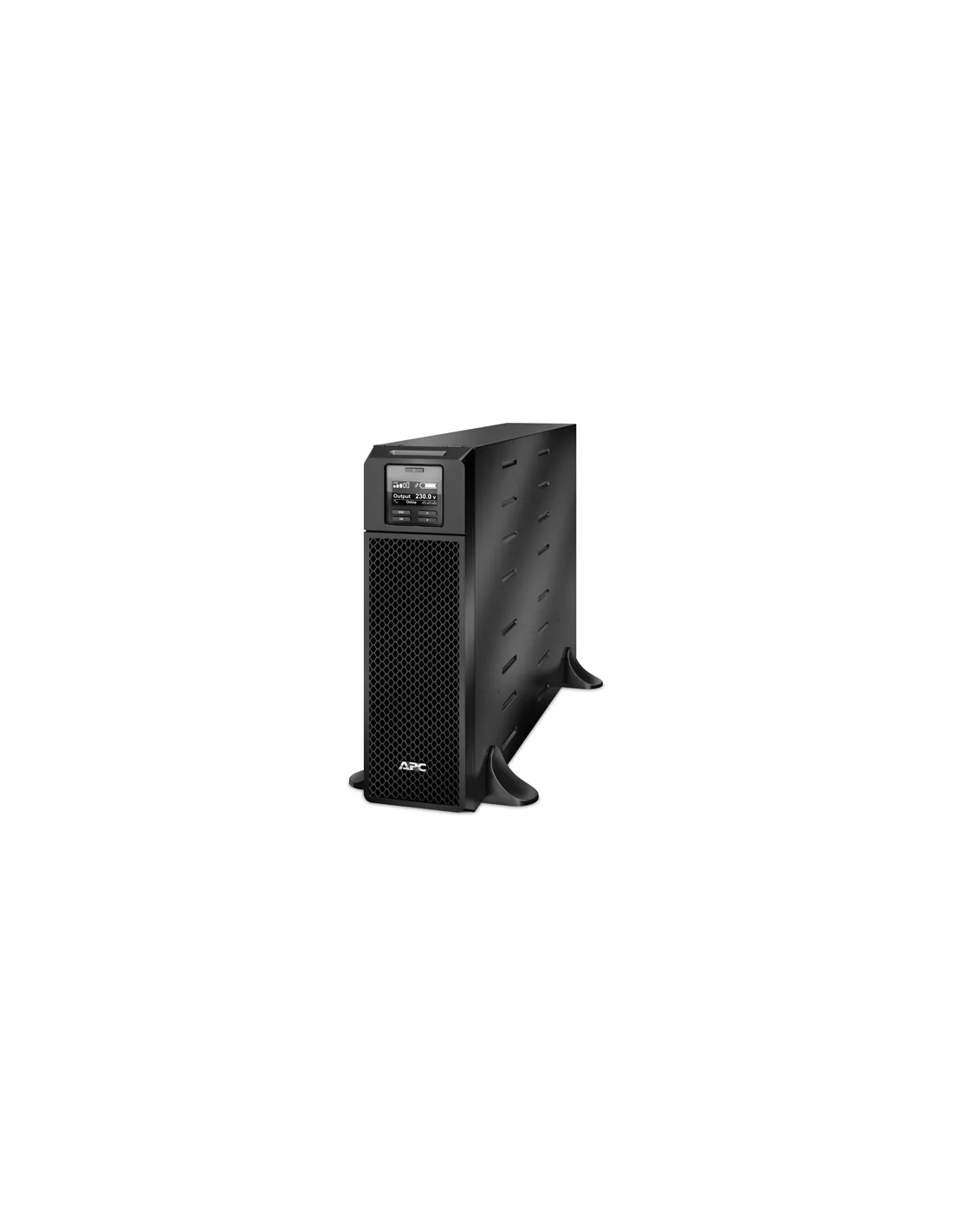

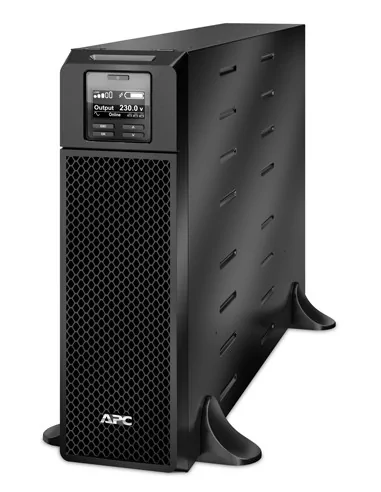

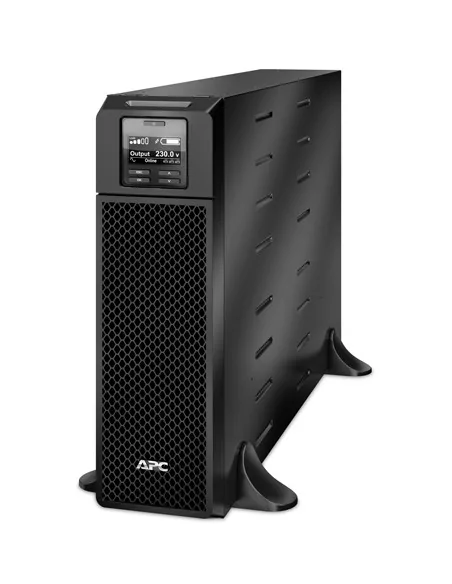

The APC Smart-UPS On-Line SRT5KXLI is a 5kVA tower UPS providing 230V output with network management and extended runtime capabilities.
Who it's for
This UPS serves small to medium environments that need consistent power protection and remote monitoring, offering 6 C13 and 4 C19 IEC outlets for varied equipment connections.
Why it's good
It delivers up to 4500W output power, includes surge protection rated at 480J, and supports reliable power conditioning with flexible input voltages.
When to choose it
Select this unit if your power requirements fall within its output range and you want an online UPS that can be integrated with network management systems. Verify your power capacity and outlet compatibility first.
Specifications
| Power | |
|---|---|
| Output frequency regulation | 50/60 Hz |
| Output power | 4500 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Efficiency | 94.1% |
| Emergency Power Off (EPO) | Yes |
| Crest factor | 3:1 |
| Output power capacity | 5 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| LED indicators | Status |
| Surge protection | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output frequency regulation | 50/60 Hz |
| Auto-restart | Yes |
| Output power | 4500 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Efficiency | 94.1% |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 5 kVA |
| Input frequency | 40 - 70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Hardwire |
| Number of output IEC jumpers | 2 |
| SmartConnect port | No |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 845 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 1.5 h |
| Typical backup time at half load | 11.8 min |
| Typical backup time at full load | 4 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| LED indicators | Status |
| Product colour | Black |
| Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 8386.06 |
| Compliance certificates | RoHS |
| Packaging data | |
| Packaging content | Comms cable Removable support feet Web/SNMP Management Card |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Warranty card | Yes |
| Temperature sensor | Yes |
| Software CD | Yes |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 330 mm |
| Package weight | 63.6 kg |
| Management card included | Yes |
| Certificates | |
| Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Compliance certificates | RoHS |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Management card included | Yes |
| Warranty card | Yes |
| Temperature sensor | Yes |
| Software CD | Yes |
| Packaging content | Comms cable Removable support feet Web/SNMP Management Card |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 330 mm |
| Weight | 54.4 kg |
| Width | 130 mm |
| Package weight | 63.6 kg |
| Height | 432 mm |
| Depth | 719 mm |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 8386.06 |
| Other features | |
| Packaging content | Comms cable Removable support feet Web/SNMP Management Card |
Speak to Creative Systems to ensure this UPS supports your load and confirm current stock status.
