What it is

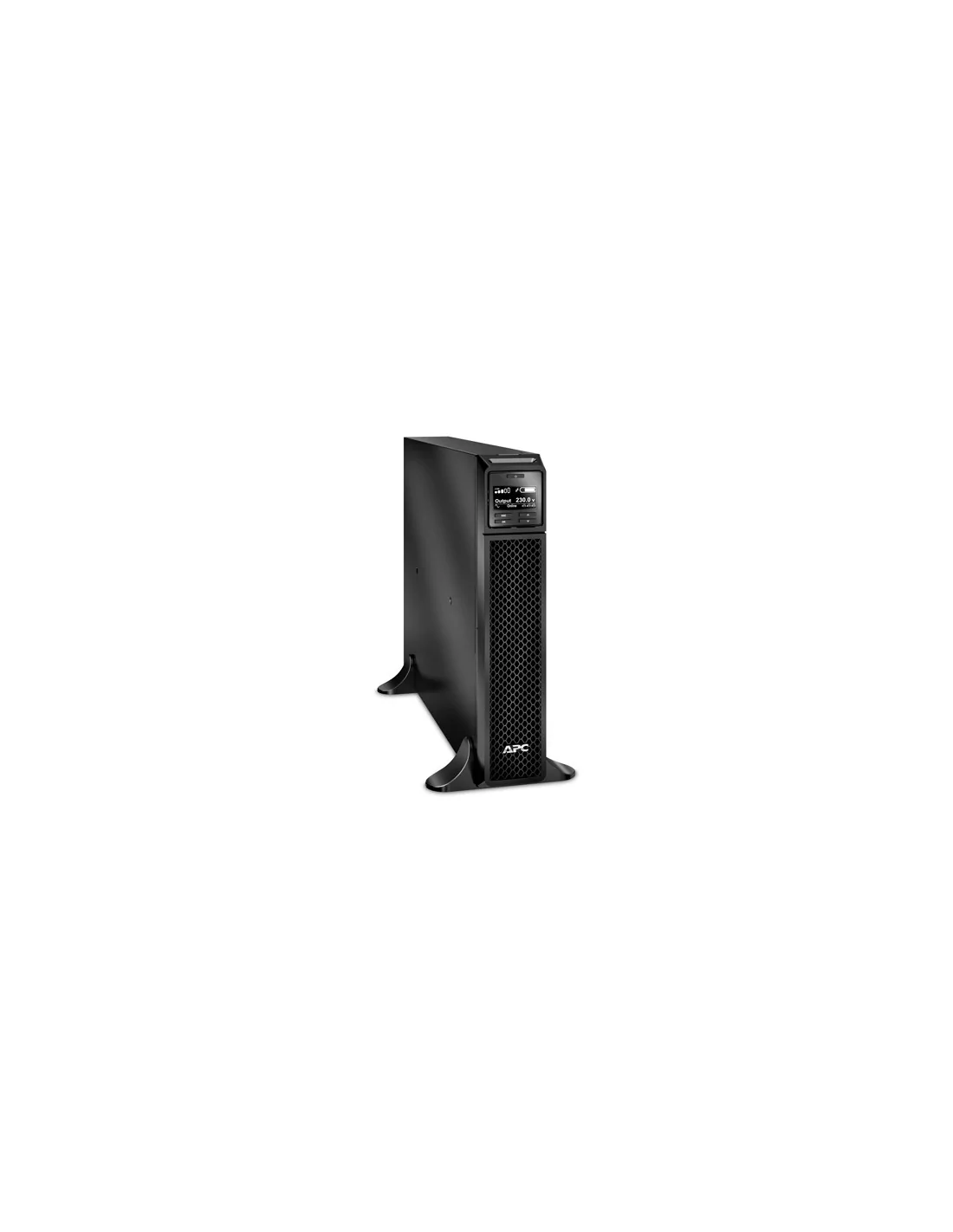

An APC Smart-UPS On-Line tower UPS rated at 3kVA, compatible with 208V or 230V input. It includes six C13 and two C19 IEC outlets with SmartSlot expansion and offers extended runtime features.
Who it's for
Intended for businesses needing reliable tower UPS solutions with moderate outlet count, capable of supporting mixed-voltage environments and offering flexible runtime options.
Why it's good
This UPS combines solid surge protection with efficiency and smart management features, ensuring consistent power and adaptability without rack mounting.
When to choose it
Pick this UPS when your site requires a tower form factor that supports 3kVA loads with a mix of C13 and C19 outlets at 208/230V.
Specifications
| Power | |
|---|---|
| Output frequency regulation | 50/60 Hz |
| Output power | 2700 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 340 J |
| Efficiency | 92.4% |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 3 kVA |
| Ports & interfaces | |
| Cable length | 2.44 m |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| SmartConnect port | No |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| LED indicators | Yes |
| Surge protection | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Web-based management | Yes |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output frequency regulation | 50/60 Hz |
| Auto-restart | Yes |
| Output power | 2700 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 340 J |
| Efficiency | 92.4% |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 3 kVA |
| Input frequency | 40/70 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 505 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Typical backup time at half load | 11.8 min |
| Typical backup time at full load | 4 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, RCM, UL 1778, VDE, REACH |
| Cable length | 2.44 m |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 4961.68 |
| Compliance certificates | RoHS |
| Packaging data | |
| Packaging content | Removable support feet |
| Quick installation guide | Yes |
| Cables included | RS-232, USB cable |
| Software CD | Yes |
| Package width | 599 mm |
| Package depth | 871 mm |
| Package height | 246 mm |
| Package weight | 36.7 kg |
| Management card included | No |
| Certificates | |
| Certification | CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, RCM, UL 1778, VDE, REACH |
| Compliance certificates | RoHS |
| Management features | |
| Web-based management | Yes |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | RS-232, USB cable |
| Management card included | No |
| Software CD | Yes |
| Packaging content | Removable support feet |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Package width | 599 mm |
| Package depth | 871 mm |
| Package height | 246 mm |
| Weight | 31.3 kg |
| Width | 85 mm |
| Package weight | 36.7 kg |
| Height | 432 mm |
| Depth | 635 mm |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 4961.68 |
| Other features | |
| Packaging content | Removable support feet |
Get in touch with Creative Systems to discuss your power needs and check stock before ordering.
