What it is

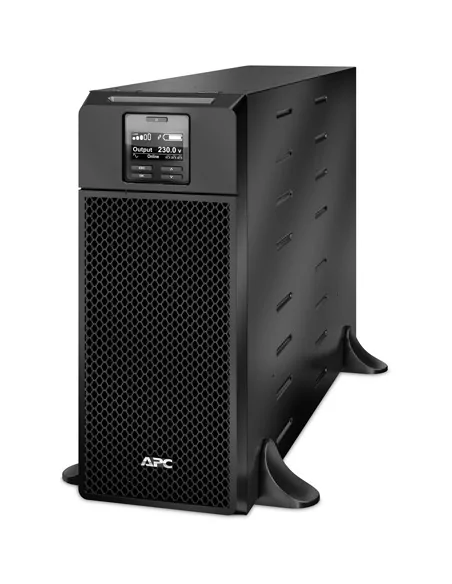

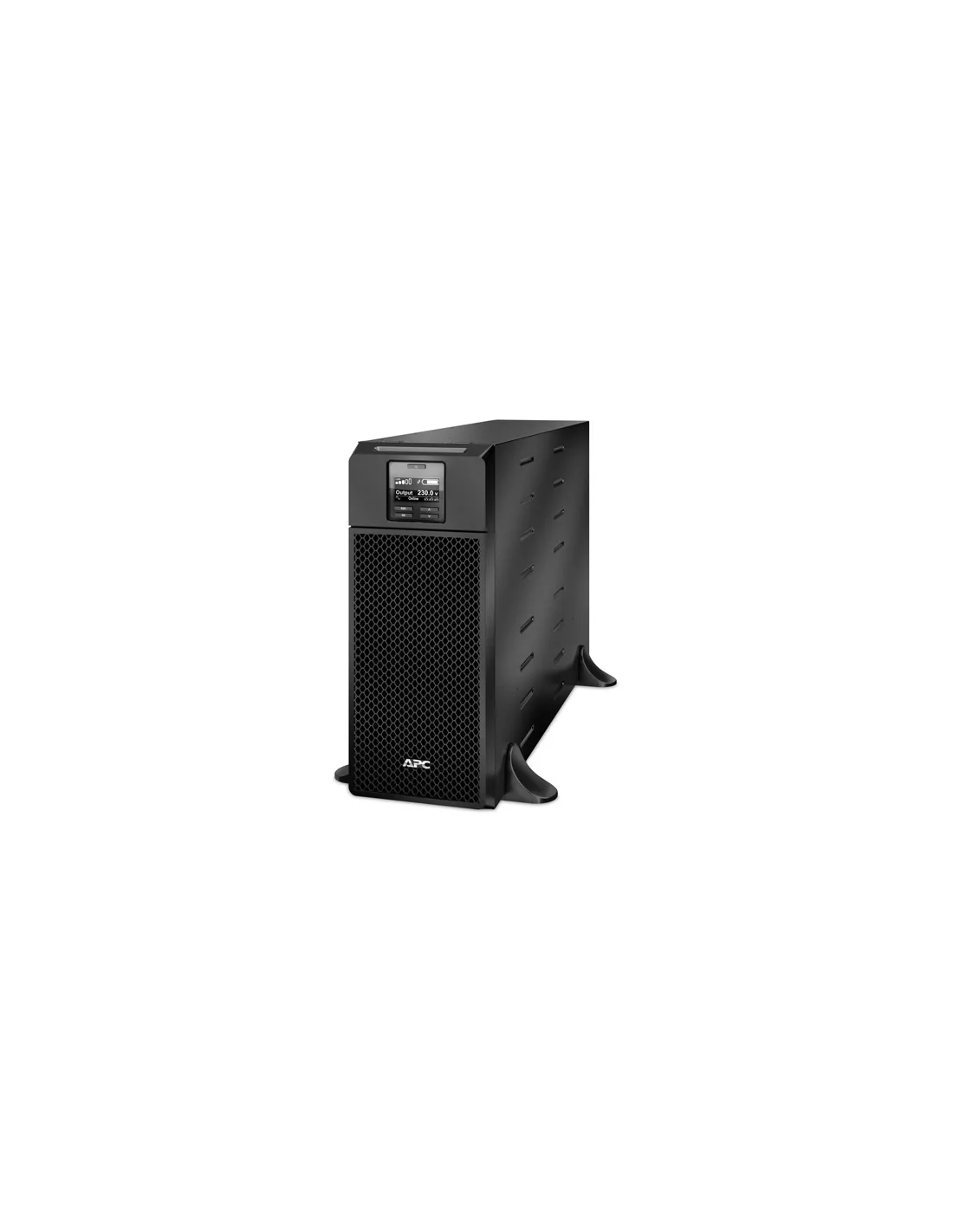

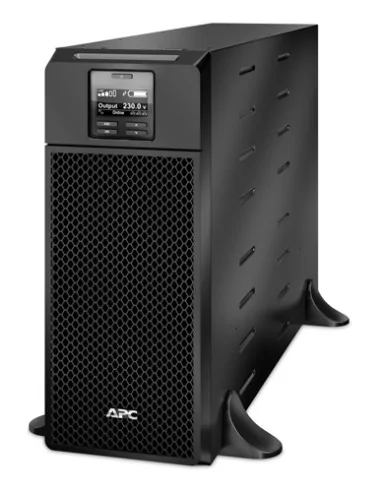

The APC Smart-UPS On-Line SRT6KXLI provides 6kVA/6kW of online power protection in a tower form factor with 230V output and extended runtime options.
Who it's for
Suitable for environments requiring reliable UPS protection and remote management, this model supports 6 C13 and 4 C19 IEC outlets, meeting the needs of medium-sized IT equipment setups.
Why it's good
Its output power supports loads up to 6000W with tight voltage regulation, surge energy rating of 480J, and built-in network management for easy integration in monitoring systems.
When to choose it
Choose this UPS if you require dependable power backup for critical equipment at this capacity and want to avoid oversizing your UPS system. Confirm your voltage and load requirements before committing.
Specifications
| Power | |
|---|---|
| Output frequency regulation | 50/60 Hz |
| Output power | 6000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Efficiency | 94.4% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Crest factor | 3:1 |
| Output power capacity | 6 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| Number of output phases | 1 |
| LED indicators | Status |
| Surge protection | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output frequency regulation | 50/60 Hz |
| Auto-restart | Yes |
| Number of output phases | 1 |
| Output power | 6000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Efficiency | 94.4% |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 6 kVA |
| Input frequency | 40 - 70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Hardwire |
| Number of output IEC jumpers | 2 |
| SmartConnect port | No |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 902 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 1.5 h |
| Typical backup time at half load | 8.7 min |
| Typical backup time at full load | 2.5 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Rackmount/Tower |
| LED indicators | Status |
| Product colour | Black |
| Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 13539.46 |
| Compliance certificates | RoHS |
| Packaging data | |
| Packaging content | Removable support feet Web/SNMP Management Card |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Warranty card | Yes |
| Temperature sensor | Yes |
| Software CD | Yes |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 370 mm |
| Package weight | 67 kg |
| Management card included | Yes |
| Certificates | |
| Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Compliance certificates | RoHS |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Management card included | Yes |
| Warranty card | Yes |
| Temperature sensor | Yes |
| Software CD | Yes |
| Packaging content | Removable support feet Web/SNMP Management Card |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 370 mm |
| Weight | 60 kg |
| Width | 174 mm |
| Package weight | 67 kg |
| Height | 432 mm |
| Depth | 719 mm |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 13539.46 |
| Other features | |
| Packaging content | Removable support feet Web/SNMP Management Card |
Ask Creative Systems to assess your power needs and confirm this UPS fits your environment and stock status.
