What it is

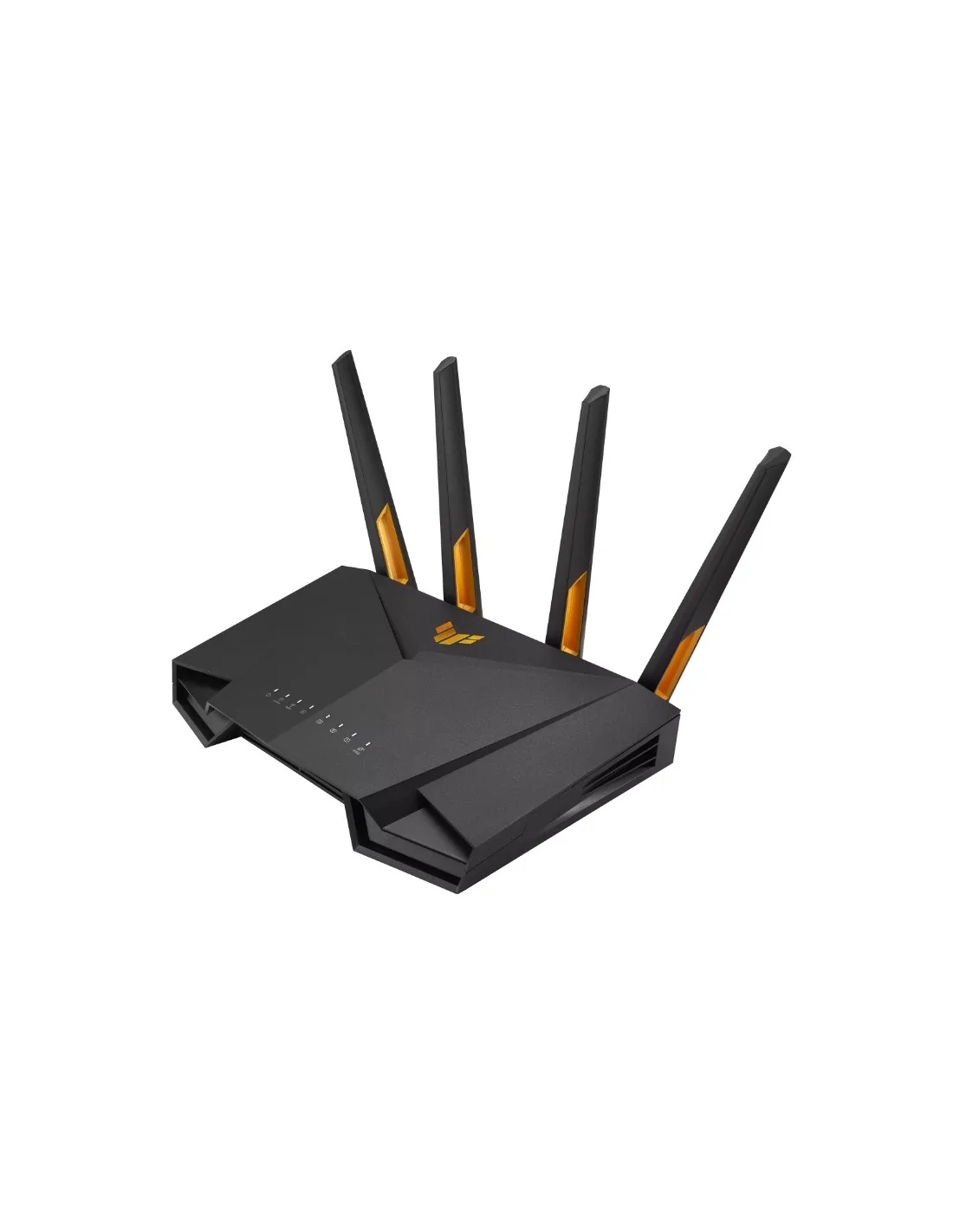

The ASUS TUF-AX4200 is a dual-band Wi-Fi 6 router designed for home or small office gaming and streaming with features like Mobile Game Mode and AiProtection Pro security.
Who it's for
This router is aimed at users who want strong wireless speeds, low latency for gaming, and straightforward network security without investing in enterprise-grade gear.
Why it's good
It supports up to 2.5 Gbps WAN port speeds, AiMesh for mesh network extension, and easy port forwarding controls, helping you optimise performance for mobile and PC-based games.
When to choose it
Choose this if you need a reliable, cost-conscious Wi-Fi 6 router with gaming-specific features and mesh capabilities, especially when upgrading from older Wi-Fi standards.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| DSL features | |
| DSL WAN | No |
| Mobile network | |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Network | |
| Wake-on-LAN ready | Yes |
| Network address translation (NAT) | Yes |
| Guest access | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| VPN support | VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Port forwarding | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Port triggering | Yes |
| Number of guest networks (5 GHz) | 3 |
| Number of guest networks (2.4 GHz) | 3 |
| Support Samba (storage) | Yes |
| VPN server | VPN Server OVPN, VPN Server PPTP, VPN Server WireGuard |
| SSID-based VLAN assignment | Yes |
| Dynamic DNS (DDNS) | Yes |
| Protocols | |
| DMZ support | Yes |
| Supported network protocols | IPv4, IPv6 |
| DHCP server | Yes |
| Security | |
| VPN support | VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| URL filtering | Yes |
| Network address translation (NAT) | Yes |
| NAT functionality | PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| MAC address filtering | Yes |
| Guest access | Yes |
| Firewall | Yes |
| DMZ support | Yes |
| Filtering | Yes |
| Schedule access | Yes |
| Parental control | Yes |
| Performance | |
| Processor frequency | 2 MHz |
| Processor cores | 2 |
| Firmware upgradeable | Yes |
| Built-in processor | Yes |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Weight & dimensions | |
| Package width | 433 mm |
| Package weight | 1 kg |
| Package height | 73 mm |
| Package depth | 326 mm |
| Width | 265 mm |
| Weight | 547.4 g |
| Height | 186 mm |
| Depth | 178 mm |
| Packaging content | |
| Package type | Box |
| Number of products included | 1 pc(s) |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Warranty card | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 3603 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 3603 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ports & interfaces | |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Management features | |
| WPS push button | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Bandwidth control | Yes |
| Intelligent Mesh technology | Yes |
| Design | |
| Product type | Tabletop router |
| On/off switch | Yes |
| LED indicators | LAN, Power, WAN |
| Product colour | Black |
| Indication light | Yes |
| Other features | |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 4 |
| Features | |
| Processor frequency | 2 MHz |
| Processor cores | 2 |
| Firmware upgradeable | Yes |
| Built-in processor | Yes |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Power | |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 2.5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Packaging data | |
| Quick start guide | Yes |
| Package width | 433 mm |
| Package weight | 1 kg |
| Package type | Box |
| Package height | 73 mm |
| Package depth | 326 mm |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Warranty card | Yes |
| Number of products included | 1 pc(s) |
Contact us to ensure this router suits your coverage needs and existing network setup before ordering.
