What it is

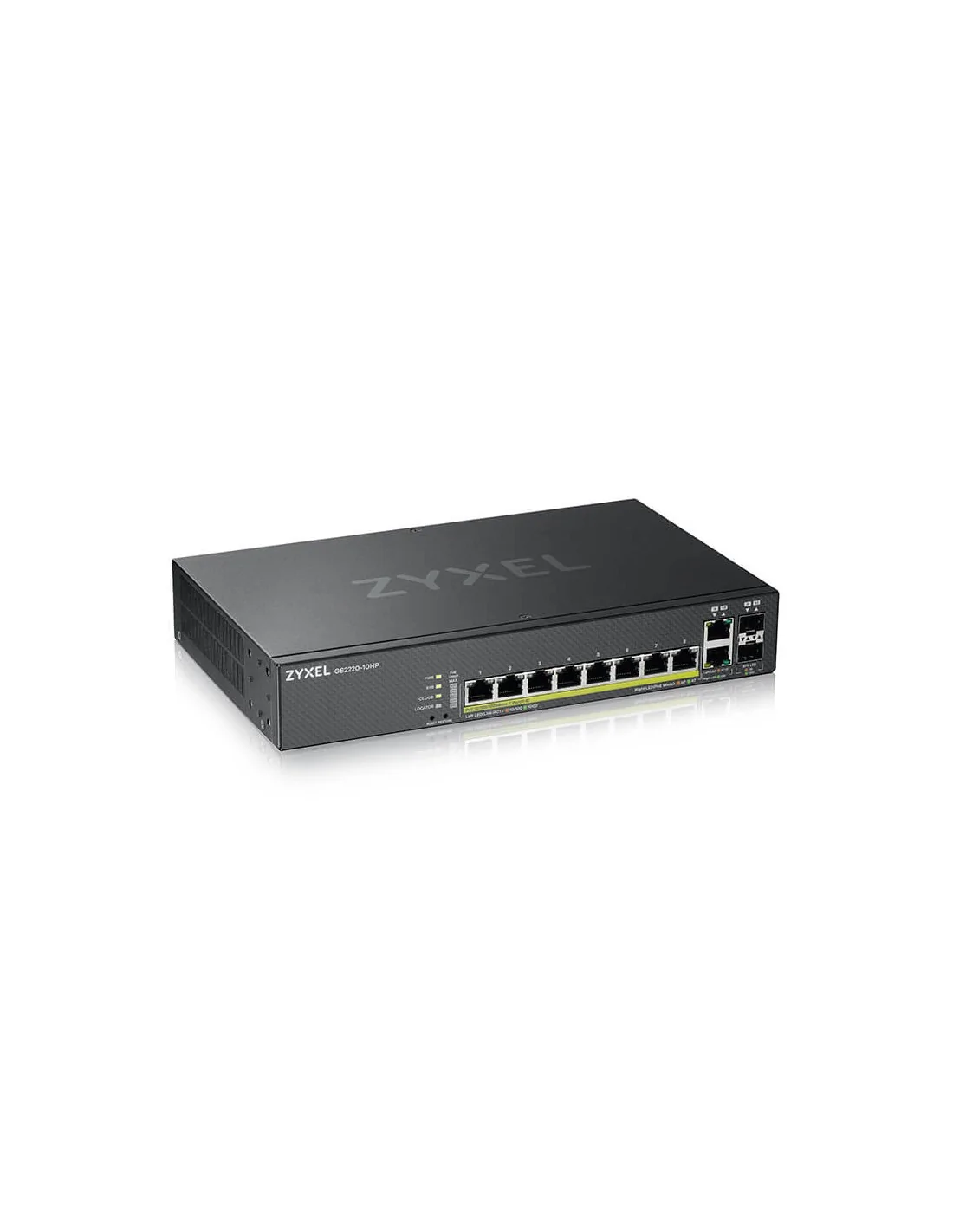

The Zyxel GS2220-10HP is a managed Layer 2 Gigabit Ethernet switch featuring 8 PoE ports and 2 Gigabit uplinks, bundled with a 1-year NCC Pro pack license for enhanced management.
Who it's for
This switch is aimed at small to medium-sized networks needing reliable Power over Ethernet for devices like IP cameras or phones, along with web-based management for easy configuration.
Why it's good
It supports multicast and basic Layer 2 switching with a focus on ease of use through its web interface. The 10-port design keeps deployment simple while offering gigabit speeds and PoE.
When to choose it
Pick this switch when you want a flexible, manageable PoE solution that’s suitable for mid-range networks requiring dependable power delivery and basic layer 2 features.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Noise level | 41 dB |
| Mean time between failures (MTBF) | 587477 h |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Noise level | 41 dB |
| Mean time between failures (MTBF) | 587477 h |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Data transmission | |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 15 Mpps |
| Security | |
| Authentication | Guest VLAN, MAC-based authentication |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Certification | LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Design | |
| Product colour | Black |
| Certification | LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 210.8 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 180 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 718.828 BTU/h |
| Weight & dimensions | |
| Width | 267 mm |
| Depth | 162 mm |
| Height | 44 mm |
| Weight | 1.8 kg |
| Packaging data | |
| Package width | 375 mm |
| Package depth | 235 mm |
| Package height | 61 mm |
| Package weight | 2.7 kg |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Cables included | AC |
Contact Creative Systems to verify if this Zyxel model meets your needs and to check its availability.
