What it is

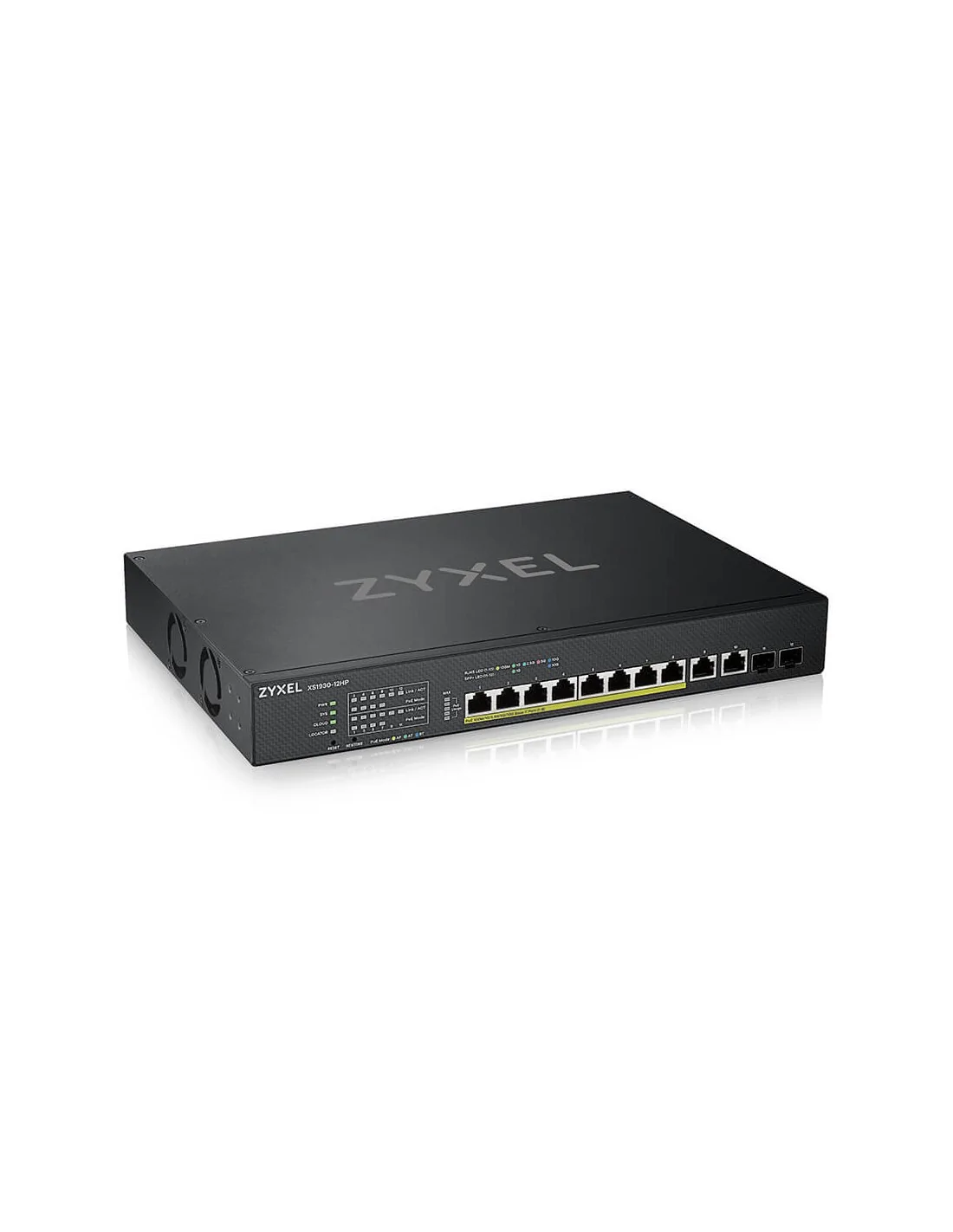

The Zyxel XS1930-12HP-ZZ0101F is an 8-port Multi-Gigabit smart managed PoE switch that includes 2 10GbE and 2 SFP+ uplink ports. It offers Layer 3 management features and supports VLANs, multicast, and web-based configuration.
Who it's for
This switch is designed for small to medium-sized networks needing flexible high-speed connectivity with Power over Ethernet to devices like access points or IP cameras, plus advanced network management.
Why it's good
It combines multi-gigabit Ethernet speeds with smart management controls in a rack-mountable black chassis. The inclusion of 10GbE and SFP+ uplinks makes it suitable for future-proofing network backbones or aggregation points.
When to choose it
Consider this switch if your network requires both Power over Ethernet and multi-gigabit speeds with management capabilities, especially when upgrading or expanding infrastructure with demanding devices and traffic.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L3 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x |
| VLAN support | Yes |
| Port mirroring | Yes |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| 10G support | Yes |
| Data transmission | |
| MAC address table | 16000 entries |
| Switching capacity | 240 Gbit/s |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 493 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 375 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 151.06 BTU/h |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 230 mm |
| Height | 44 mm |
| Weight | 2.8 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
Please check with us to confirm this switch meets your network configuration and to inquire about current stock and setup support.
