- New
Last items in stock

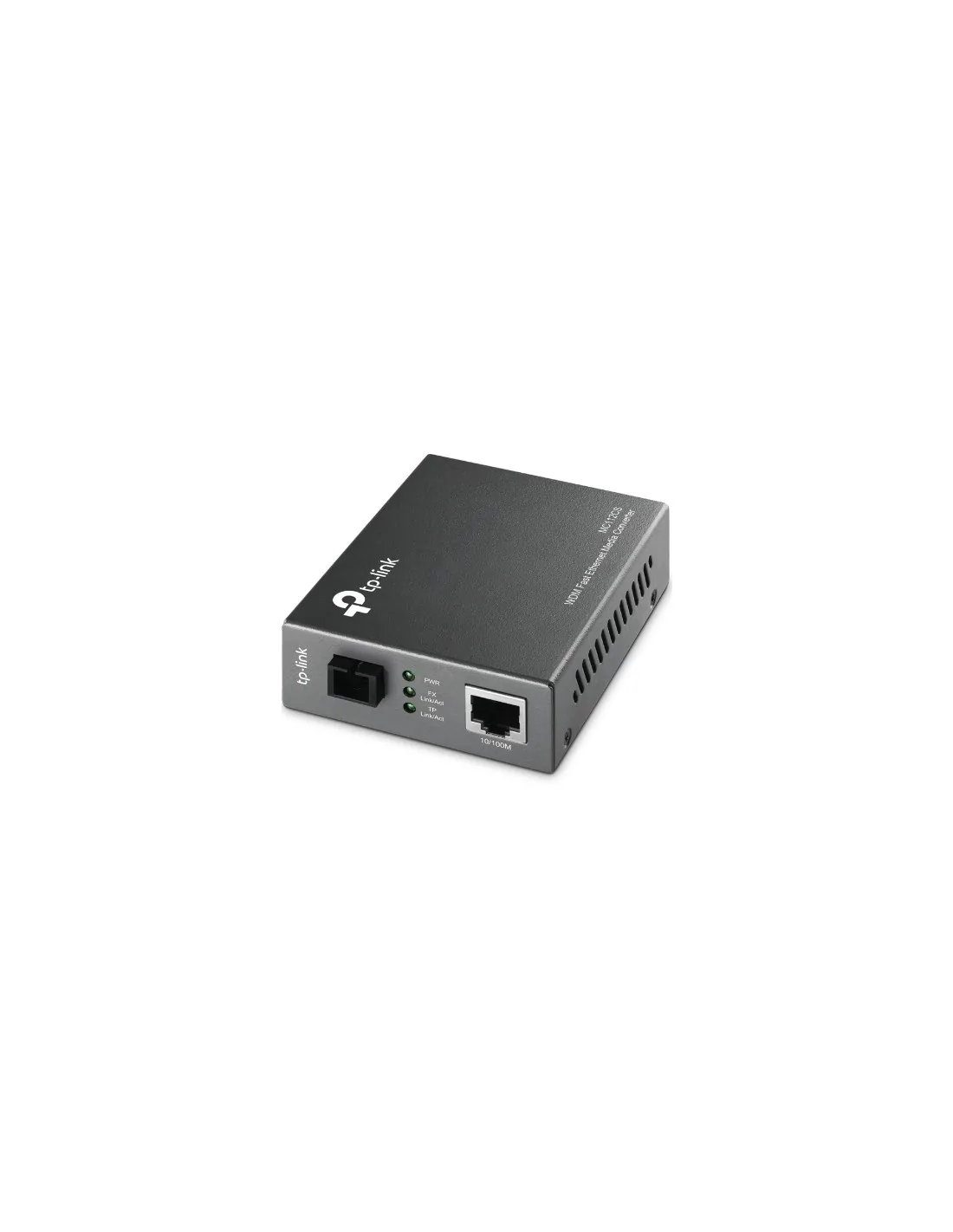

The MC112CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media and vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-Link´s media converter MC111CS is just one of the examples to cooperate with MC112CS. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers (12.5 miles).
| Network | |
|---|---|
| Cable types supported | Cat3, Cat4, Cat5 |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-FX, 100BASE-TX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength-division multiplexing (WDM) | Yes |
| Maximum transfer distance | 20000 m |
| Fiber mode structure | Single-mode |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Power consumption (max) | 2.41 W |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Technical details | |
| Maximum transfer distance | 20000 m |
| Fiber mode structure | Single-mode |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
