Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber
This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.
Extend your GbE network cost-effectively
The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.
Extend your GbE network cost-effectively
The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Flow control support | Yes |
| Jumbo frames | 9000 |
| Converter input interface | 100Base-TX, 1000Base-T |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Duplex system | Full |
| Converter output interface | 1000Base-SX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength-division multiplexing (WDM) | No |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 50000 h |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Flow control support | Yes |
| Features | |
| Housing material | Steel |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Power over Ethernet (PoE) ports quantity | 0 |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Power plug type | Type N |
| Input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Output voltage | 5 V |
| Output current | 2.6 A |
| Power consumption (typical) | 5 W |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 97 mm |
| Depth | 70 mm |
| Weight | 200 g |
| Height | 26 mm |
| Package depth | 284 mm |
| Package width | 138 mm |
| Package height | 66 mm |
| Package weight | 564 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quick installation guide | Yes |

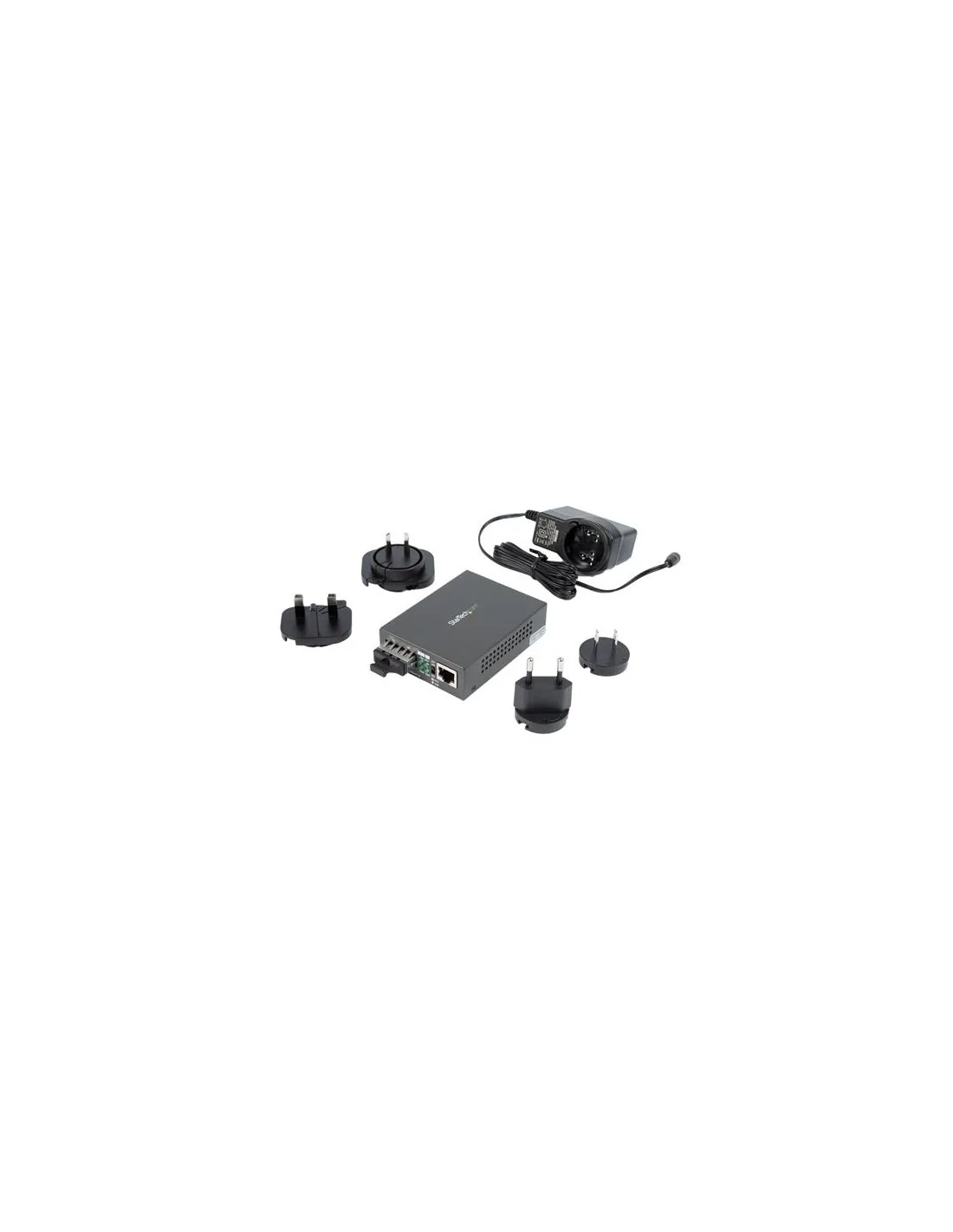

| AC adapter included | Yes |
| Packaging data | |
| Package depth | 284 mm |
| Package width | 138 mm |
| Package height | 66 mm |
| Package weight | 564 g |
| Technical details | |
| Housing material | Steel |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Activity, Link, Power |
| Design | |
| Housing material | Steel |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 50000 h |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC, REACH |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 595 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 85176990 |
