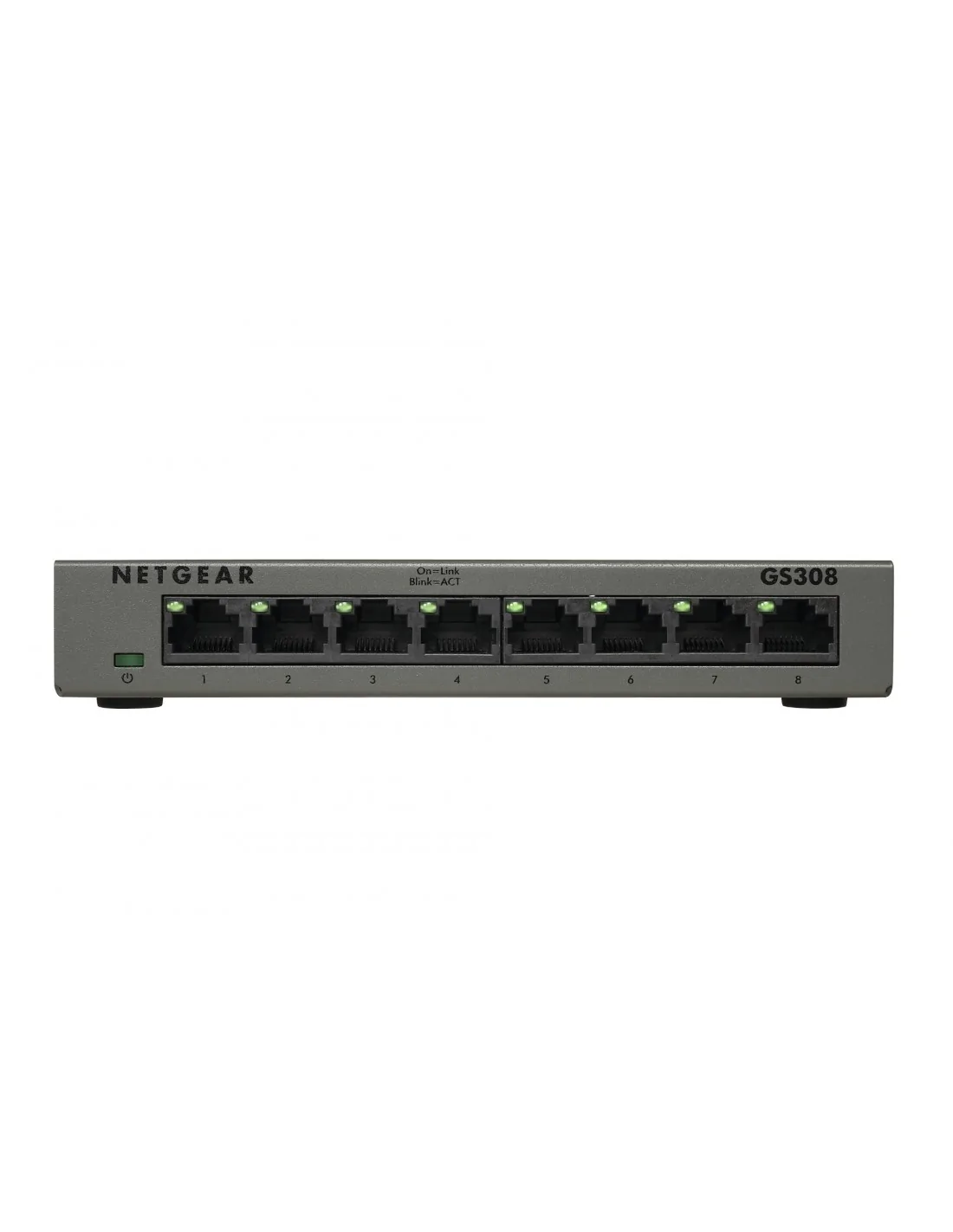

SOHO Ethernet Switch Series Expanding Wired Connectivity for SOHO Networks The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.
| Performance | |
|---|---|
| Packet buffer memory | 0.128 MB |
| Stackable | No |
| Mean time between failures (MTBF) | 3711898 h |
| Harmonized System (HS) code | 85176990 |
| Fanless | Yes |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Mean time between failures (MTBF) | 3711898 h |
| Housing material | Metal |
| Rack mounting | No |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Data transmission | |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Jumbo frames | 9216 |
| Latency (1 Gbps) | 2.6 µs |
| Packet buffer memory | 0.128 MB |
| MAC address table | 2000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Certificates | |
| Certification | CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, KC, CB, CE LVD |
| Memory | |
| Packet buffer memory | 0.128 MB |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| Stackable | No |
| LED indicators | Activity, Link, Power |
| Housing material | Metal |
| Certification | CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, KC, CB, CE LVD |
| Rack mounting | No |
| Indication | |
| LED indicators | Activity, Link, Power |
| Power | |
| Power consumption (max) | 3.04 W |
| Input current | 0.5 A |
| DC input voltage | 12 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 10.4 BTU/h |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 29 mm |
| Weight | 390 g |
| Packaging data | |
| Package width | 192 mm |
| Package depth | 228 mm |
| Package height | 60 mm |
| Package weight | 648 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
