Dual Display Mount | Full Motion | For 32" to 75" Displays
Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.

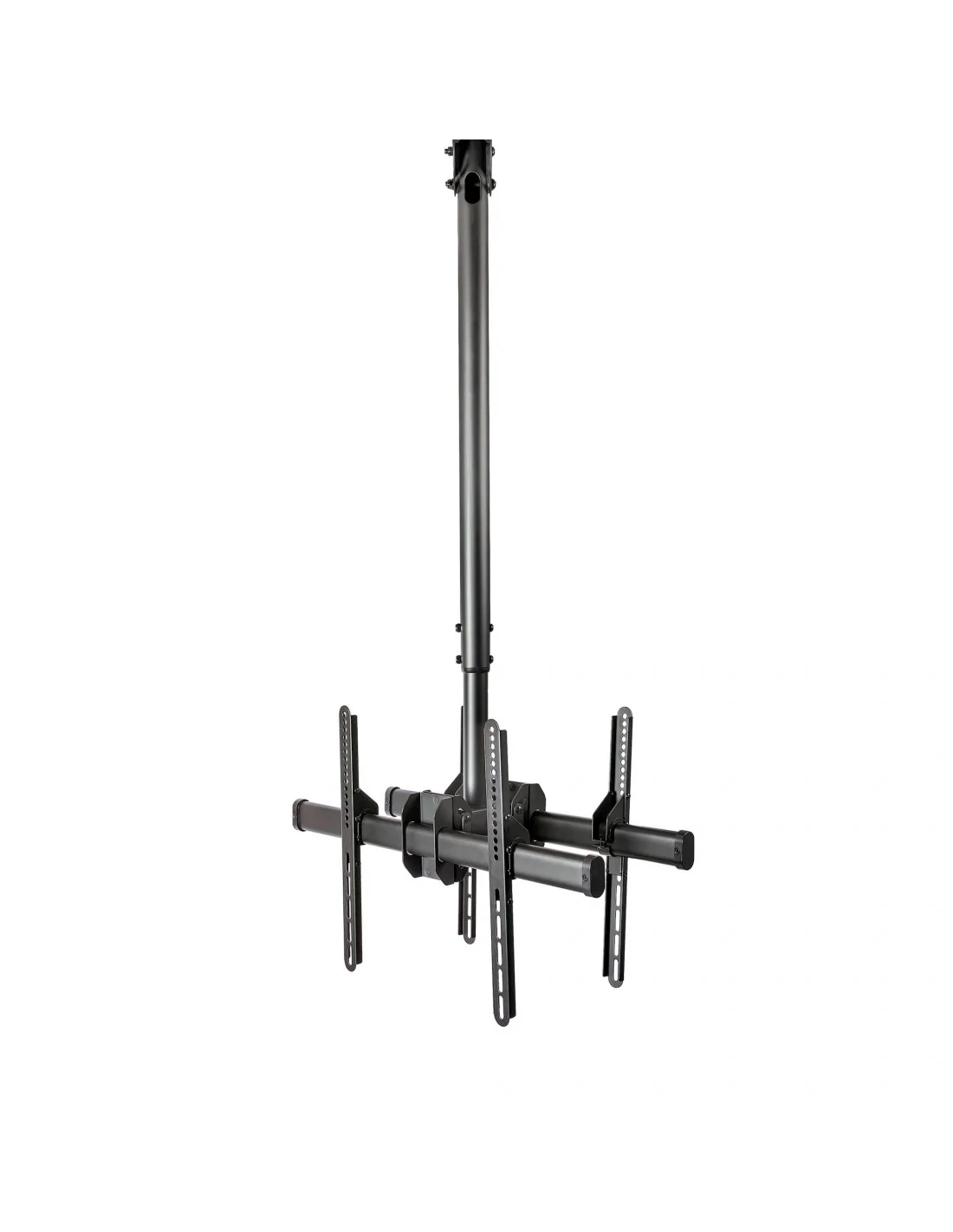

Back-to-Back TV Mount
The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.
Adjustable Height
With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).
Easy Screen Adjustment
For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.

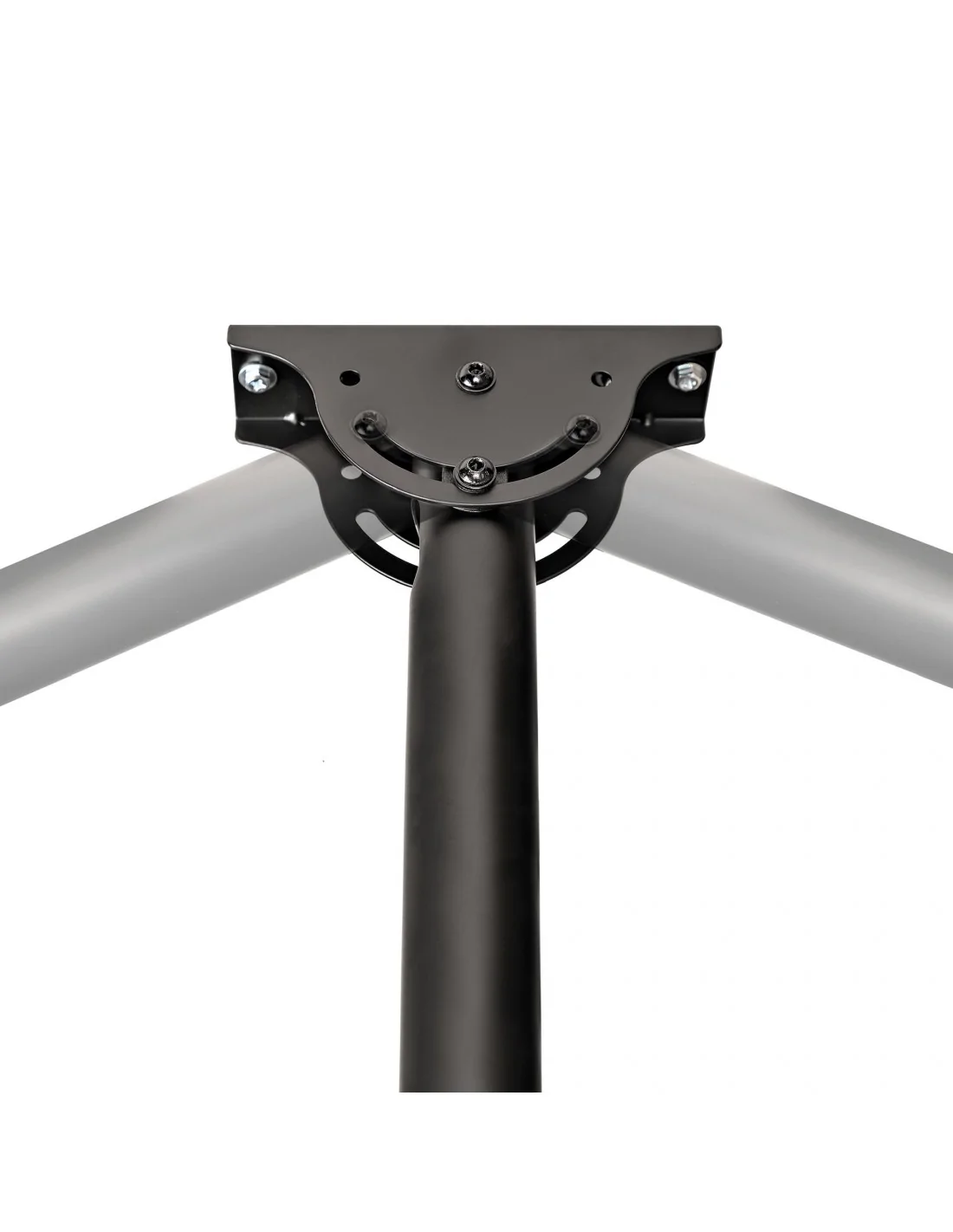

Swivels to Suit Your Ceiling
The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.
Simple Setup and Cable Management
The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.
Back-to-Back TV Mount
The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.
Adjustable Height
With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).
Easy Screen Adjustment
For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.
Swivels to Suit Your Ceiling
The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.
Simple Setup and Cable Management
The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 45 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum weight capacity | 90 kg |

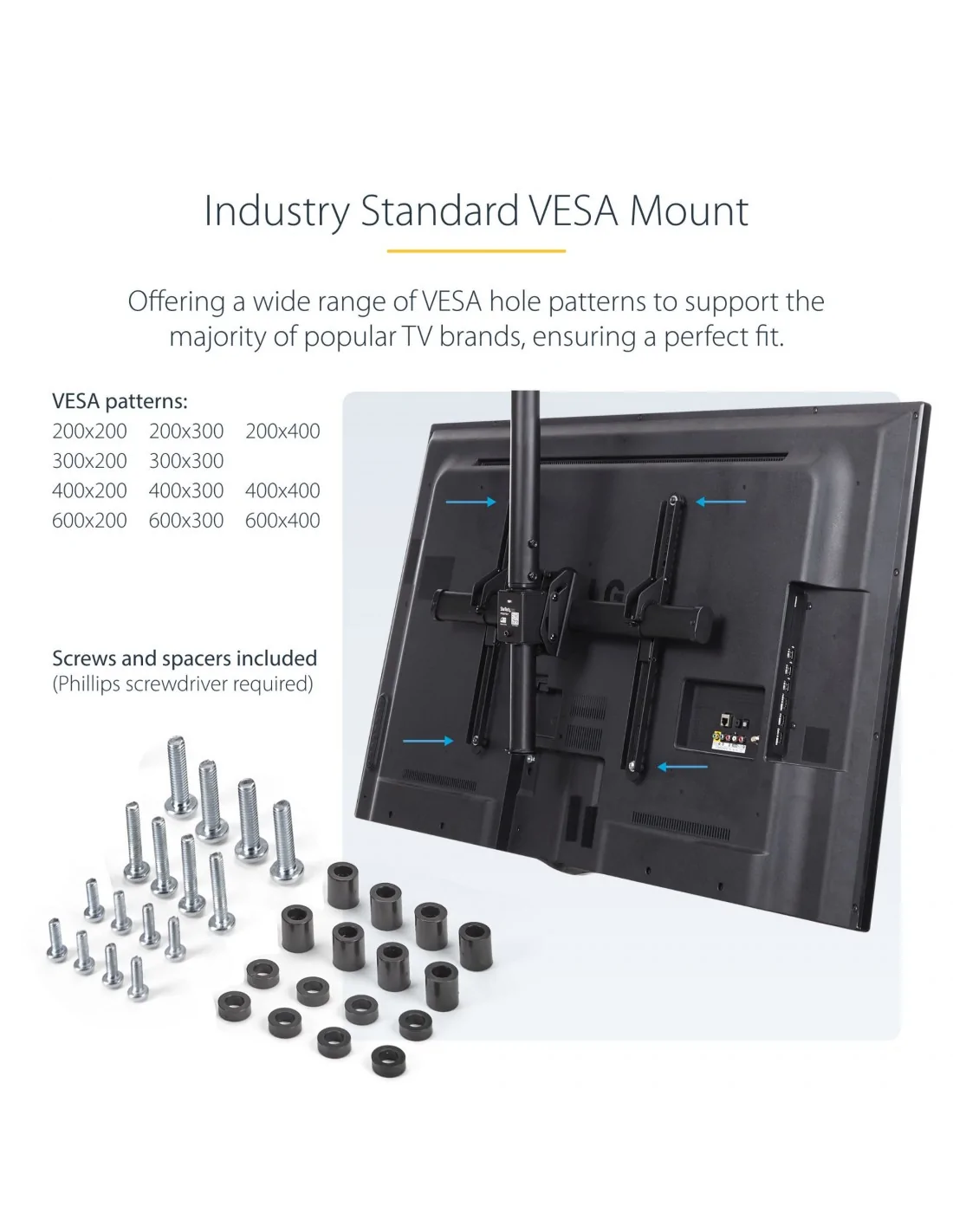

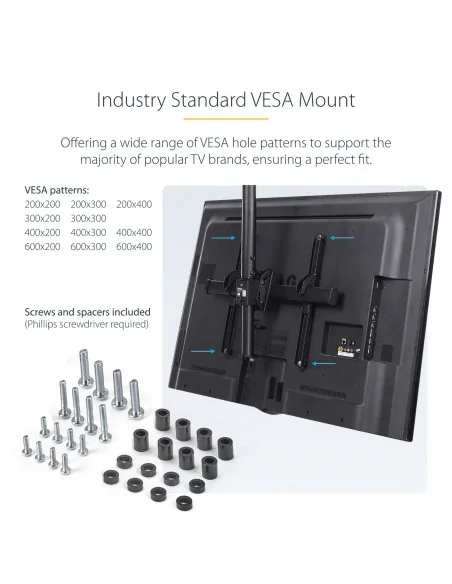

| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Number of displays supported | 2 |
| Mounting type | Ceiling |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Maximum screen size | 190.5 cm (75") |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 1060 - 1560 mm |
| Swivel angle range | -180 - 180° |
| Tilt angle range | -20 - 5° |
| Angle of rotation | 360° |
| Adjustable | Yes |
| Design | |
| Housing material | Steel |
| Product colour | Black |
| Anti-theft function | No |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 680 mm |
| Height | 835 mm |
| Weight | 9.8 kg |
| Depth (max) | 68 cm |
| Package width | 934 mm |
| Package depth | 317 mm |
| Package height | 153 mm |
| Package weight | 10.8 kg |
| Packaging data | |
| Package width | 934 mm |
| Package depth | 317 mm |
| Package height | 153 mm |
| Package weight | 10.8 kg |
| Packaging content | |
| Wrench included | Yes |
| Washers included | Yes |
| Spacer included | Yes |
| Screws included | Yes |
| Nuts included | Yes |
| Number of washers included | 12 |
| Number of spacers included | 32 |
| Number of screws | 46 |
| Number of nuts | 2 |
| Manual | Yes |
| Technical details | |
| Angle of rotation | 360° |
| Number of displays supported | 2 |
| Mounting type | Ceiling |
| Adjustable | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 345 mm |
| Master (outer) case length | 960 mm |
| Master (outer) case height | 312 mm |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 85299097 |
