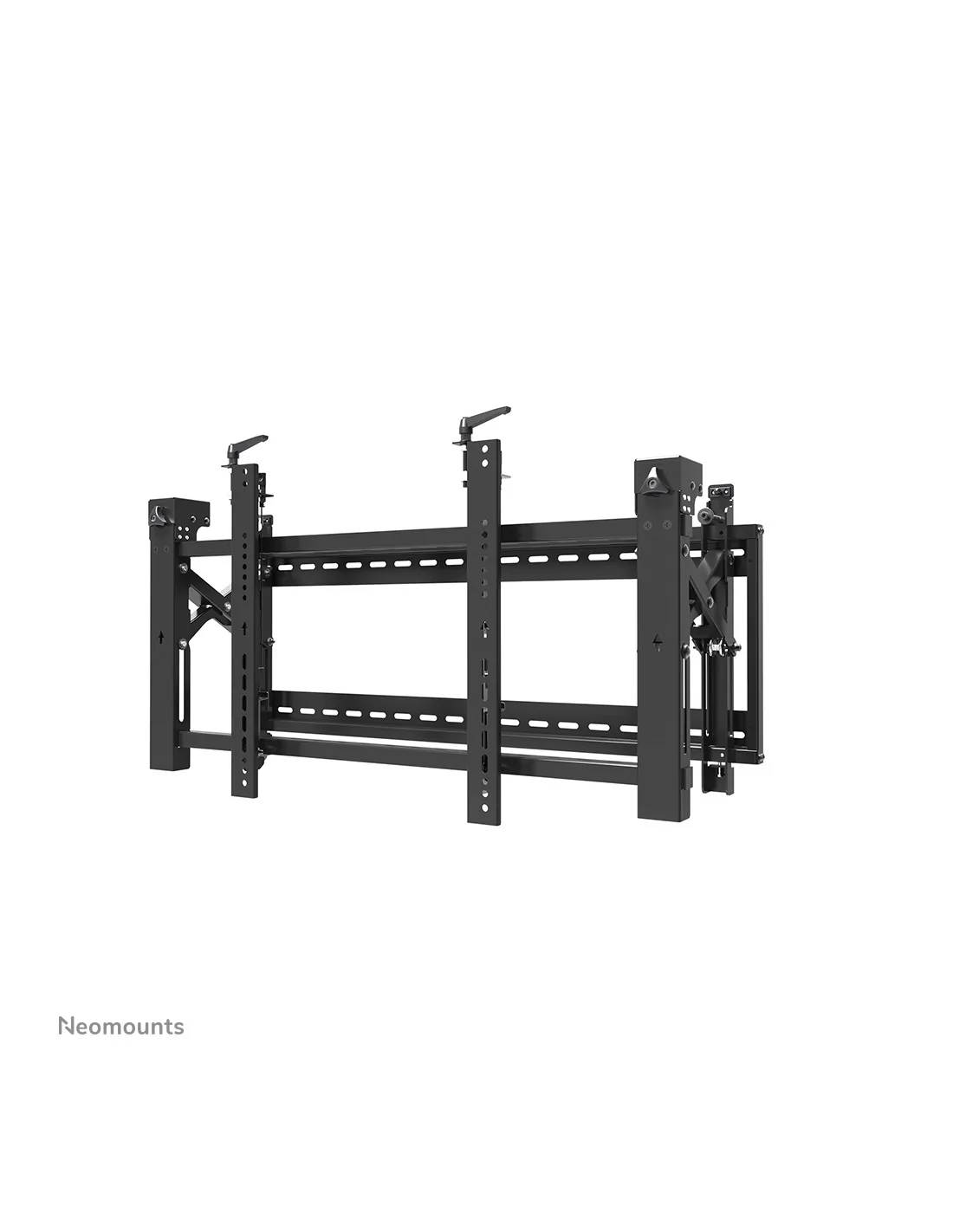

Neomounts LED-VW2000BLACK Videowall wall mount 32-75" - pop-out - max 70 kg

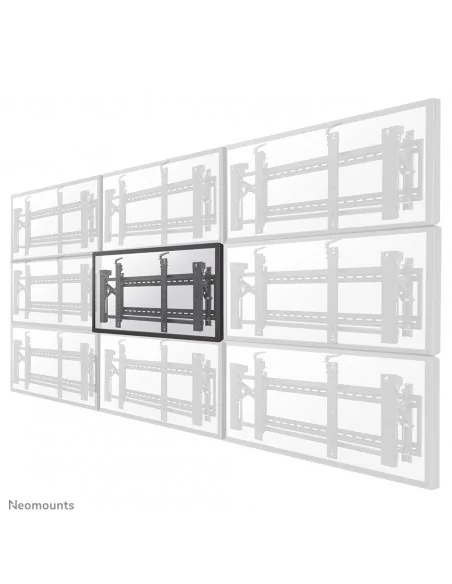

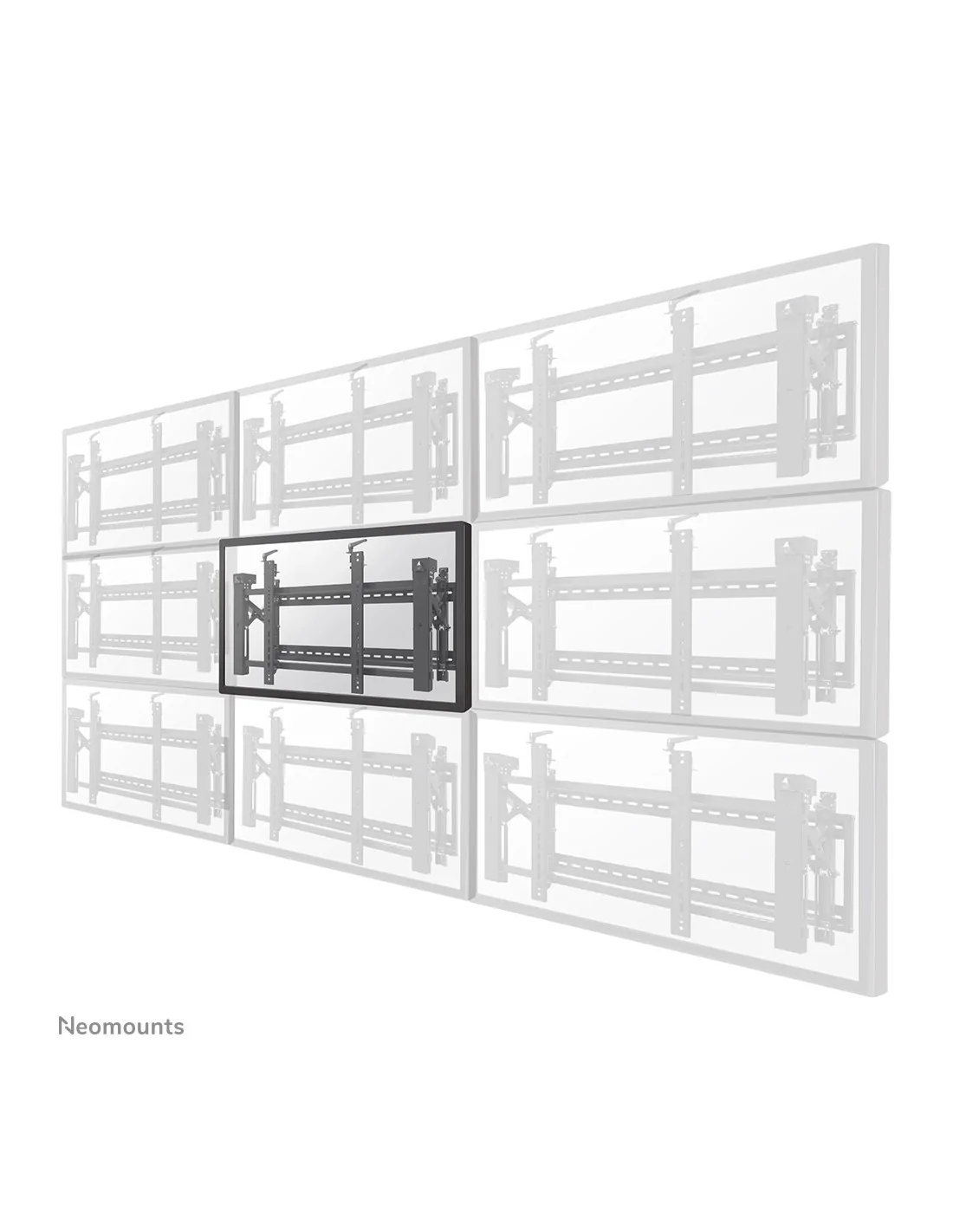

The Neomounts wall mount, model LED-VW2000BLACK is a fixed wall mount for flat screens up to 75" (191 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 14 to 30 centimetres. This wall mount is specially made to be used in video walls. The screen easily can be pulled out.

Neomounts LED-VW2000BLACK is suitable for flat screens up to 75" (191 cm). The weight capacity of this product is 70 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.

Create a clean design videowall presentation with the Neomounts LED-VW2000BLACK videowall mount solution!

- Pop-out Video Wall Mount

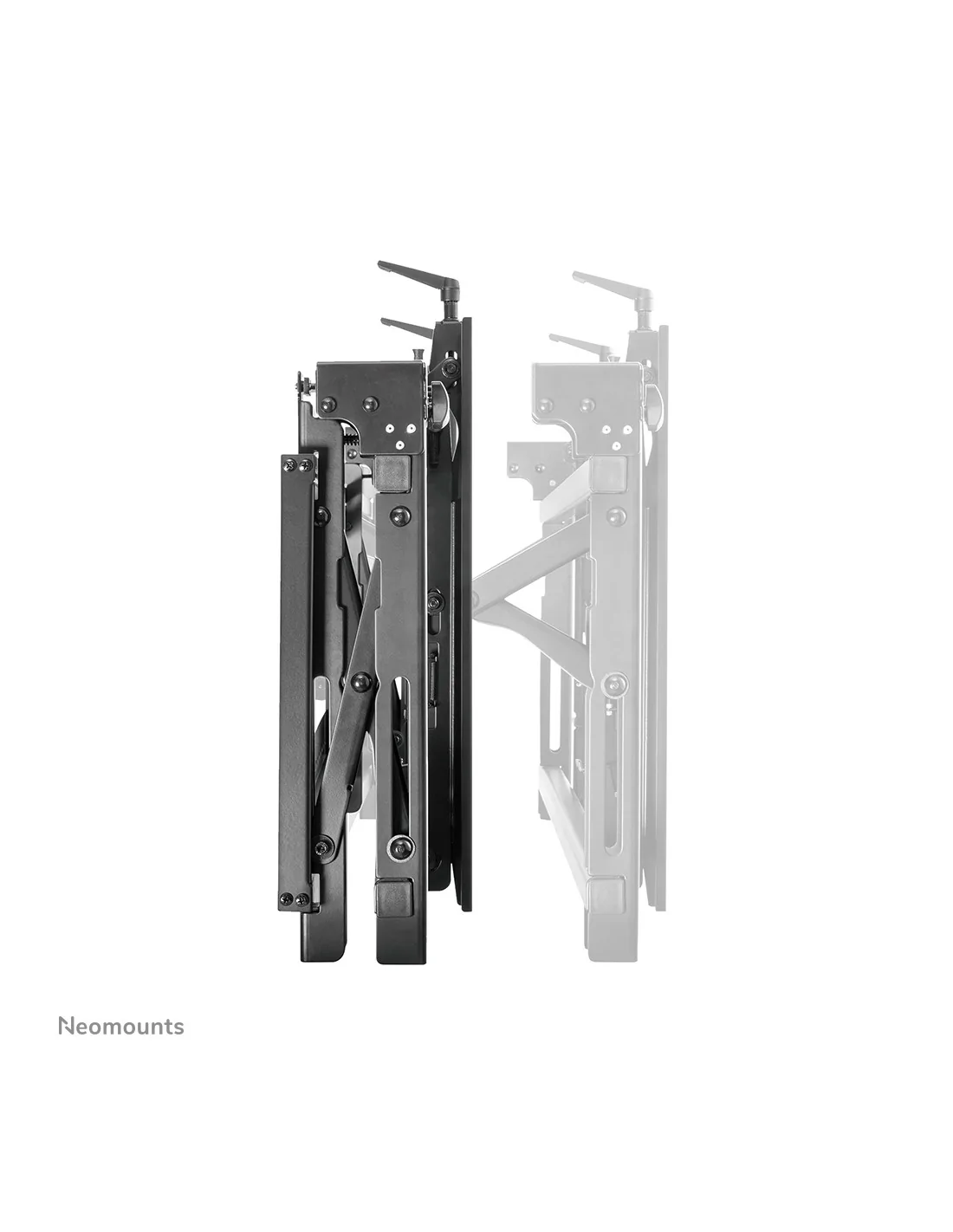

- Pop-out function allows quick release for access
- Lateral shift brackets enable fast alignment
- Micro-adjustment at 8 points for seamless display alignment and level
- Lock and unlock switch knob help to lock/release display out of the pop-out module
- Kickstand provides 12° of tilt for easy cable management and maintenance
- Anti-theft design for additional security (require for a padlock)
- Protects displays by removing the possibility of accidental pop-outs via the plastic locking pieces.

All installation material is included with the product.

Mounting
Maximum weight capacity (per display)	70 kg
Minimum screen size	81.3 cm (32")
Maximum weight capacity	70 kg
Panel mounting interface	200 x 300,200 x 400,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	190.5 cm (75")
Ergonomics
Tilt angle range	0 - 12°
Distance to the wall (min)	14.3 cm
Distance to the wall (max)	30.6 cm
Design
Type	Fixed floor stand
Housing material	Steel
Product colour	Black
Accepts padlock	Yes
Weight & dimensions
Weight	12.8 kg
Package width	200 mm
Package depth	510 mm
Package height	1030 mm
Package weight	13.7 kg
Packaging data
Package width	200 mm
Package depth	510 mm
Package height	1030 mm
Package weight	13.7 kg
Technical details
Number of displays supported	1
Mounting type	Wall
Distance to the wall (min)	14.3 cm
Distance to the wall (max)	30.6 cm
Package net weight	13.7 kg
Master (outer) case net weight	13.7 kg
Other features
Country of origin	China
Logistics data
Master (outer) case width	1030 mm
Master (outer) case length	510 mm
Master (outer) case height	200 mm
Master (outer) case gross weight	16.3 kg
Products per master (outer) case	1 pc(s)
Master (outer) case net weight	13.7 kg
Harmonized System (HS) code	7326909890
Products per pallet (EU)	11 pc(s)
Quantity per master (outer) case	1 pc(s)
