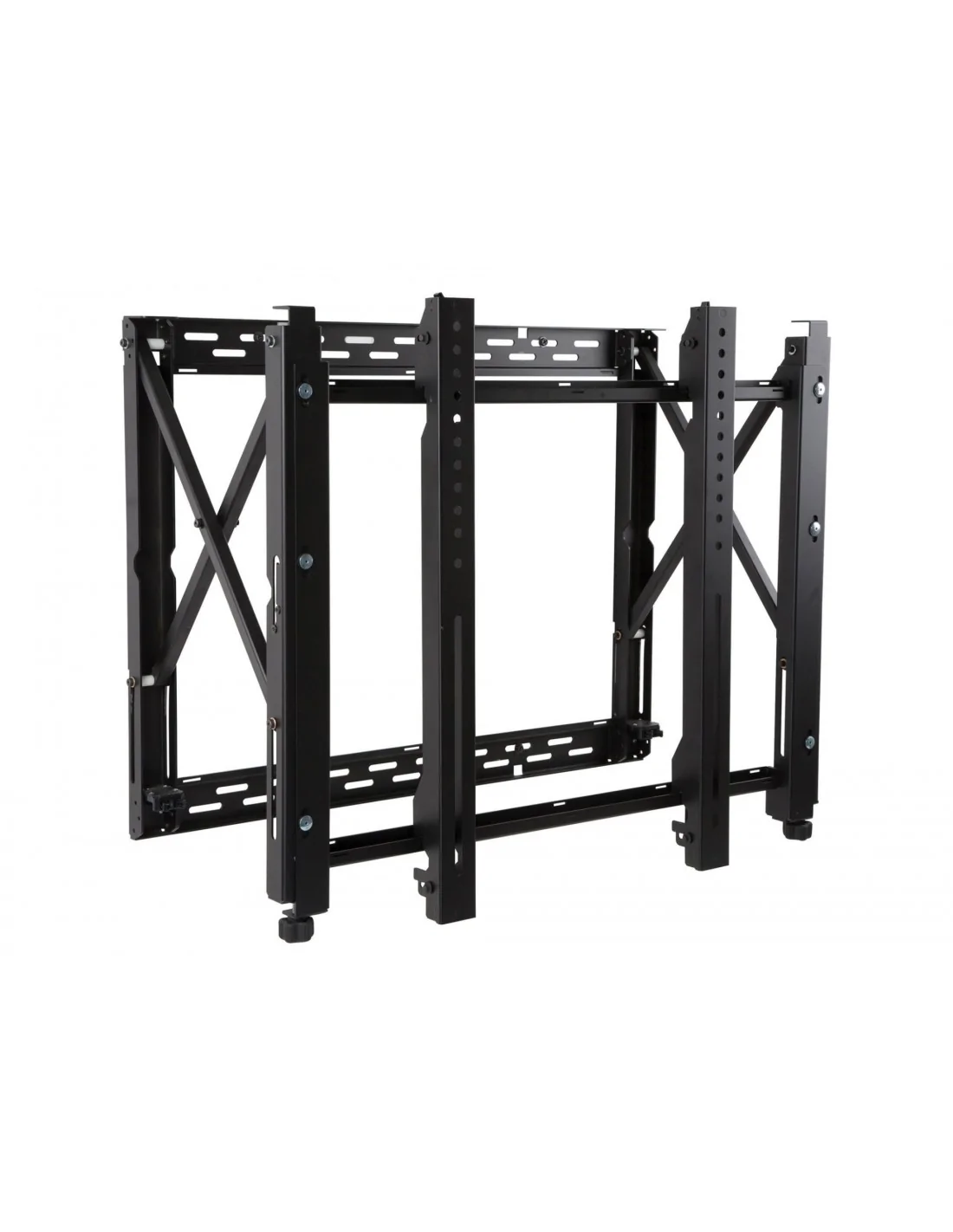

The DS-VW795-QR full service video wall mount with quick release offers an easy to install and service solution for both landscape and portrait large format displays. Designed for quick service access in recessed video wall applications, the DS-VW795-QR provides versatility demanded by today's integrator. With the quick-release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. Featuring tool-less micro adjustment at eight points, the mounts can overcome uneven walls to create a seamless video wall display. In addition, custom wall plate spacers eliminating the guesswork and on-site installation calculations and measurement reducing installation time and cost. With no-tool-required micro-adjustments and easy-access to any display for quick serviceability it’s the ultimate video wall mounting solution.
| Mounting | |
|---|---|
| Minimum screen size | 165.1 cm (65") |
| Maximum weight capacity | 102 kg |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 600 mm |
| Maximum screen size | 2.49 m (98") |
| Ergonomics | |
| Distance to the wall (min) | 10.4 cm |
| Distance to the wall (max) | 41 cm |
| Design | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 835 mm |
| Depth | 113 mm |
| Height | 700 mm |
| Weight | 18.1 kg |
| Depth (max) | 11.3 cm |
| Package width | 864 mm |
| Package depth | 95 mm |
| Package height | 711 mm |
| Package weight | 19.5 kg |
| Packaging data | |
| Package width | 864 mm |
| Package depth | 95 mm |
| Package height | 711 mm |
| Package weight | 19.5 kg |
| Technical details | |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Distance to the wall (min) | 10.4 cm |
| Distance to the wall (max) | 41 cm |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
