What it is

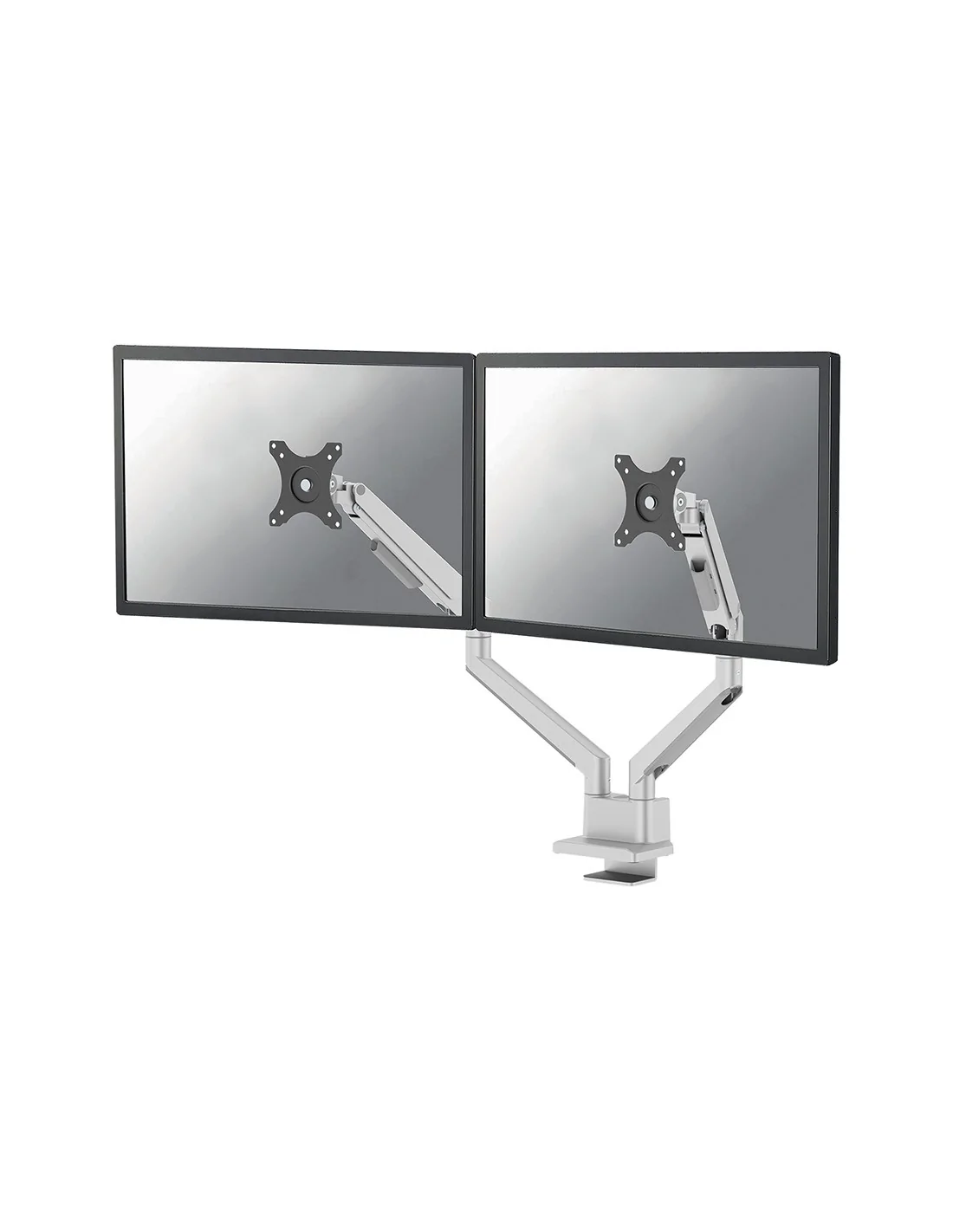

The Neomounts DS70-250SL2 is a dual monitor arm designed for screens between 17 and 32 inches. It uses gas spring technology for smooth height adjustment and has a 180° rotation stop. The model mounts to the desk from above (Topfix) and comes in silver.
Who it's for
For users who need flexible positioning of two monitors within the 17" to 32" size range and weighing up to 9 kg each. Suitable for office setups aiming to save desk space or improve ergonomics without extra plastic packaging waste.
Why it's good
This arm offers a gas spring for easy adjustment, supports standard VESA mounts (75x75 and 100x100 mm), and holds curved screens up to 8 kg. Its 180° stop helps limit movement to avoid collisions.
When to choose it
Use this when you want a reliable, easy-to-install dual arm for medium-sized monitors and prefer an ecological packaging option without plastics.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 9 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 5 cm |
| Minimum screen size | 43.2 cm (17") |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Distance to the wall (min) | 12 cm |
| Distance to the wall (max) | 40.4 cm |
| Maximum weight capacity | 9 kg |
| Maximum screen size | 81.3 cm (32") |
| Maximum weight capacity (per curved/ultra-wide display) | 8 kg |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 70 - 525 mm |
| Height adjustment | Yes |
| Height adjustment range | 215 - 495 mm |
| Pivot angle | -180 - 180° |
| Swivel angle range | -90 - 90° |
| Swivel angle | 90° |
| Tilt angle range | -45 - 45° |
| Angle of rotation | 360° |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Width adjustment | 98.4 cm |
| Design | |
| Product colour | Silver |
| Housing material | Aluminium |
| Orientation | Landscape/Portrait |
| Accepts padlock | No |
| Technical details | |
| Mounting type | Desk |
| Minimum weight | 1 kg |
| Distance to the wall (min) | 12 cm |
| Distance to the wall (max) | 40.4 cm |
| Product colour | Silver |
| Width adjustment range | 0 - 984 mm |
| Cable management | Yes |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Width | 114 mm |
| Depth | 580 mm |
| Height | 552 mm |
| Weight | 4.35 kg |
| Package width | 192 mm |
| Package depth | 147 mm |
| Package height | 430 mm |
| Package weight | 4.9 kg |
| Packaging data | |
| Package width | 192 mm |
| Package depth | 147 mm |
| Package height | 430 mm |
| Package weight | 4.9 kg |
| Other features | |
| Minimum weight | 1 kg |
| Width adjustment range | 0 - 984 mm |
| Warranty period | 5 year(s) |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 405 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 445 mm |
| Master (outer) case gross weight | 20.7 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 80 pc(s) |
| Master (outer) case net weight | 17.4 kg |
| Harmonized System (HS) code | 7616991099 |
Please contact Creative Systems to verify your monitor sizes, desk thickness, and stock levels before purchase.
