What it is

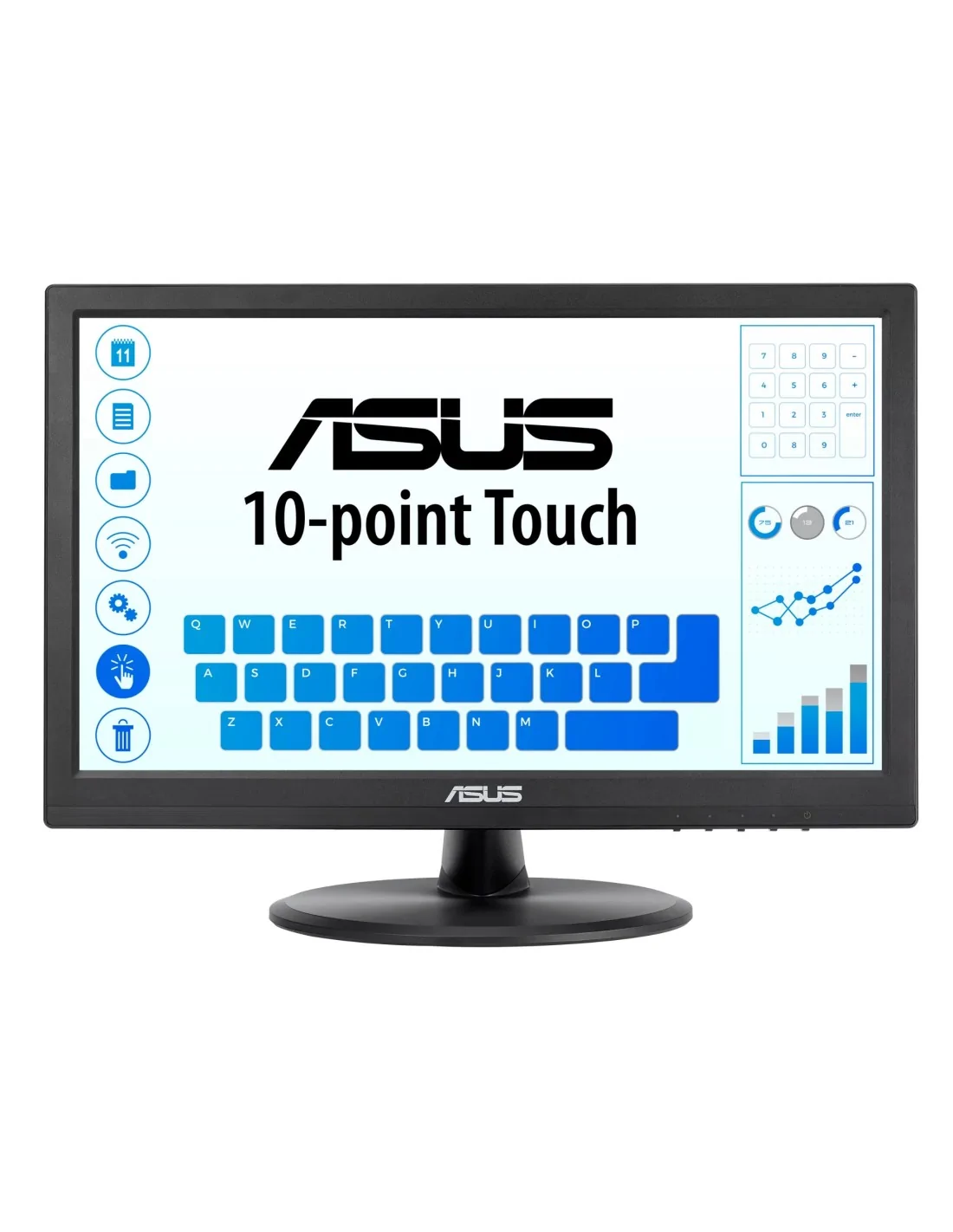

The ASUS VT168HR is a 15.6-inch touchscreen monitor featuring a TN panel with 1366x768 resolution. It includes HDMI and VGA inputs, supports USB B interface, and HDCP content protection.
Who it's for
This unit suits users needing a modest-sized, touch-enabled monitor with basic HD resolution, useful for certain point-of-sale, kiosk, or light interactive applications where full HD isn’t critical.
Why it's good
The touchscreen functionality combined with HDMI and VGA connectivity offers versatility. Its flat screen and 60 Hz refresh rate provide usable responsiveness for general tasks, though TN panels have limited viewing angles.
When to choose it
Opt for this display if a touchscreen with basic HD clarity fits your use case and you require multiple connectivity options including legacy VGA. Higher resolution needs or wider viewing angles would call for alternative models.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Screen shape | Flat |
| Display number of colours | 262144 colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 60 Hz |
| HD type | WXGA |
| Display technology | LED |
| Contrast ratio (dynamic) | 100000000:1 |
| Viewing angle, horizontal | 90° |
| Viewing angle, vertical | 60° |
| Pixel pitch | 0.252 x 0.252 mm |
| Display resolution | 1366 x 768 pixels |
| Response time | 5 ms |
| Display diagonal | 39.6 cm (15.6") |
| Contrast ratio (typical) | 400:1 |
| Touchscreen | Yes |
| Panel type | TN |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| LED backlight | Yes |
| Display brightness | 220 cd/m² |
| Anti-glare screen | Yes |
| Performance | |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Product colour | Black |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 0 |
| HDCP | Yes |
| HDMI | Yes |
| HDMI version | 1.4 |
| Technical details | |
| Height (without stand) | 235.9 mm |
| Depth (without stand) | 44 mm |
| Width (without stand) | 377.8 mm |
| Cable lock slot | Yes |
| HDMI | Yes |
| Display viewable area (HxV) | 344.23 x 193.54 mm |
| Built-in microphone | No |
| Product colour | Black |
| Weight (with stand) | 1.51 kg |
| Touchscreen | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 75 x 75 mm |
| Tilt angle range | -5 - 30° |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 8 W |
| Power consumption (off) | 0.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | B |
| Energy consumption (SDR) per 1000 hours | 6 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 908289 |
| Weight & dimensions | |
| Height (without stand) | 235.9 mm |
| Depth (without stand) | 44 mm |
| Width (without stand) | 377.8 mm |
| Width (with stand) | 377.8 mm |
| Depth (with stand) | 189.4 mm |
| Height (with stand) | 280.7 mm |
| Weight (with stand) | 1.51 kg |
| Package width | 433.8 mm |
| Package depth | 122 mm |
| Package height | 349.7 mm |
| Package weight | 2.93 kg |
| Packaging data | |
| Package width | 433.8 mm |
| Package depth | 122 mm |
| Package height | 349.7 mm |
| Package weight | 2.93 kg |
| Stand included | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-B, VGA |
| Packaging content | |
| Stand included | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-B, VGA |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 908289 |
| Other features | |
| Display viewable area (HxV) | 344.23 x 193.54 mm |
| Height (without stand) | 235.9 mm |
| Depth (without stand) | 44 mm |
| Width (without stand) | 377.8 mm |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Touchscreen | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
Discuss your requirements with Creative Systems to ensure this ASUS screen meets your interactive display needs.
