What it is

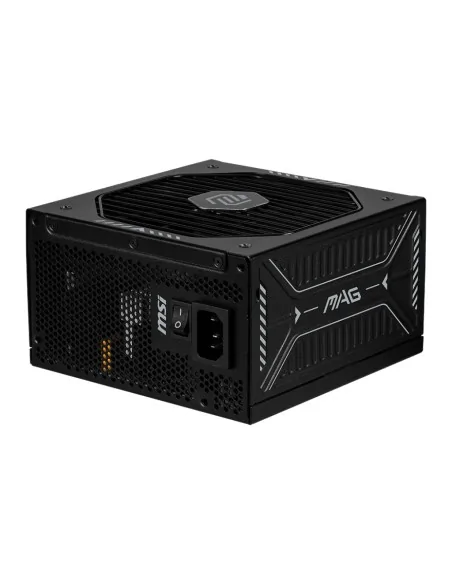

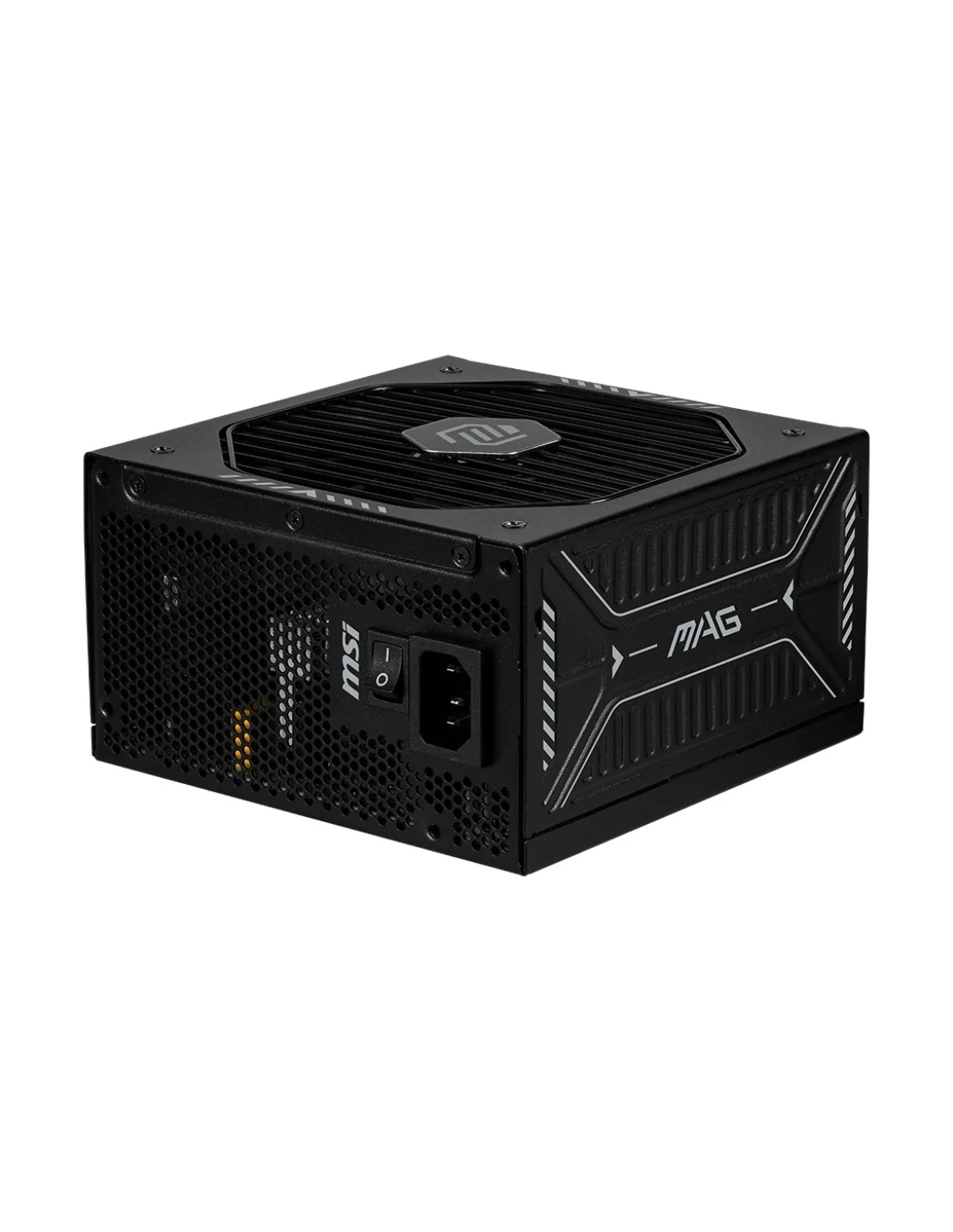

The MSI MAG A1000GLS is a 1000W power supply unit certified 80 PLUS Gold, featuring full modular cabling and active cooling via a 135 mm fan.
Who it's for
This PSU fits build projects that require reliable power delivery with modular cables to reduce clutter. Suitable for high-performance PCs where efficiency and thermal management are priorities.
Why it's good
It offers 90% efficiency typical of Gold certification plus multiple protections (OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO) for system safety. The full modular design lets you connect just the cables you need.
When to choose it
If your PC build calls for a 1000W PSU with PCIe 5 support and you want quieter cooling and efficient power use, this MSI unit is a solid choice.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | Black |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Cooling type | Active |
| Power | |
| Total power | 1000 W |
| Peak power | 2200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Power protection features | No load operation, Over power, Over total voltage, Over voltage, Overcharge, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Efficiency | 90% |
| Ports & interfaces | |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 11 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Fully-Modular |
| PCI Express power connectors (16-pin) | 1 |
| Number of EPS connectors | 2 |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Bearing technology | FDB |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Packaging data | |
| Package type | Box |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
Please check your system requirements with Creative Systems to ensure this PSU fits your build and has the right connectors.
