What it is

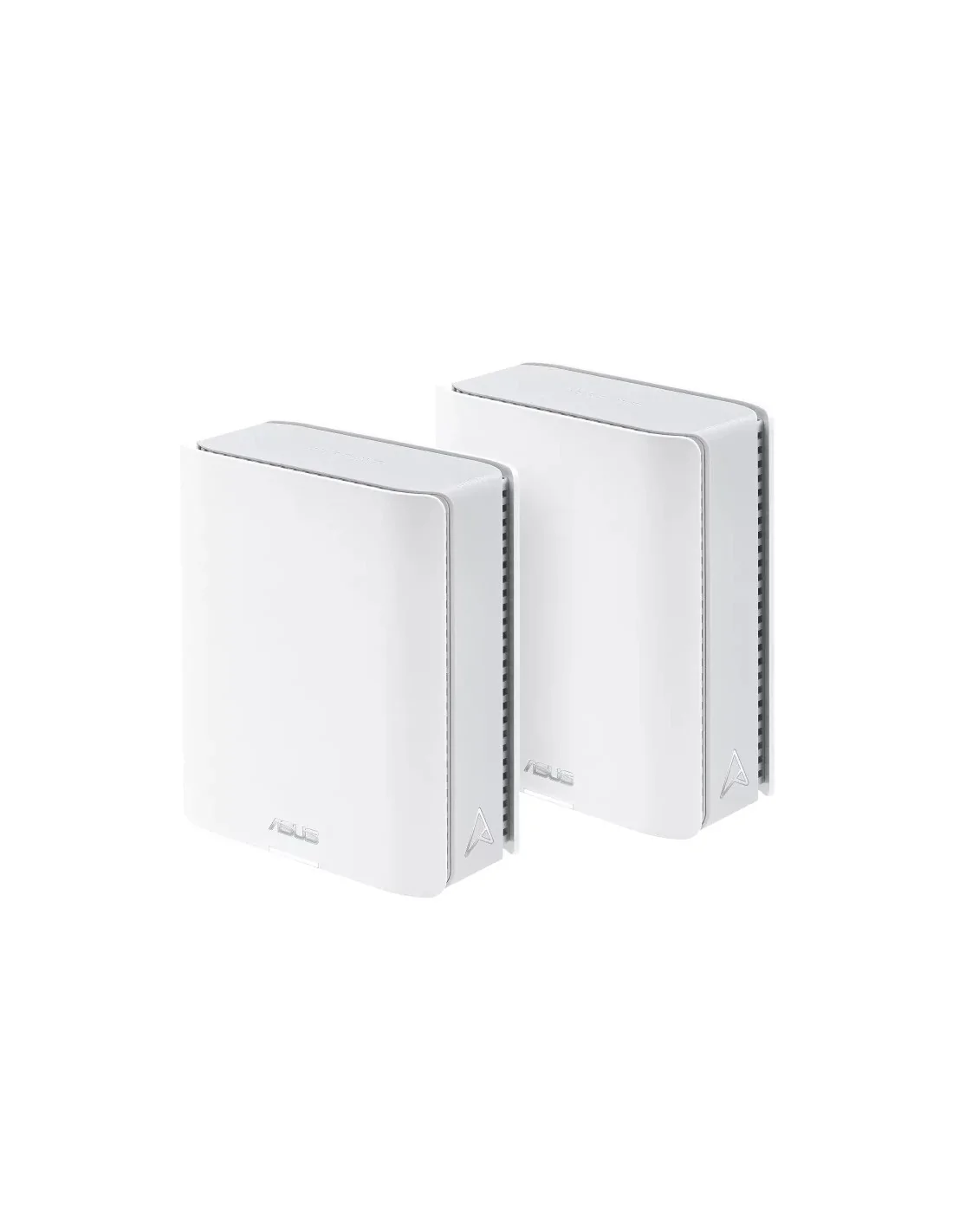

The ASUS ZenWiFi BT10 (2-pack) is a tri-band Wi-Fi 7 mesh system designed to cover up to 6000 square feet. It offers combined speeds up to 18 Gbps and includes dual 10G Ethernet ports alongside dedicated support for IoT devices and parental controls.
Who it's for
This mesh system is aimed at users needing wide, reliable Wi-Fi coverage with high throughput for multiple devices, including smart home gadgets. It's suitable for homes or small offices that prefer a managed mesh solution with advanced security.
Why it's good
Tri-band Wi-Fi 7 and 8 internal antennas improve wireless capacity and coverage. The Smart Home Master SSID helps segment IoT devices, and the system includes VPN and parental control features for better network management.
When to choose it
Consider this system if you require whole-premises Wi-Fi 7 coverage with a mesh setup, need up to dual 10G wired connections, or want to separate IoT devices for security. It's a good step for expanding or upgrading high-performance networks.
Specifications
| Design | |
|---|---|
| Product colour | White |
| LED indicators | Power |
| Antenna type | Internal |
| Antennas quantity | 8 |
| Reset button | Yes |
| Product type | Mesh system |
| Wireless LAN features | |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Security algorithms | WPA, WPA2, WPA2-Enterprise, WPA3-Personal |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 5764 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Guest access | Yes |
| Dynamic DNS (DDNS) | Yes |
| VPN support | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| WLAN data transfer rate (third band) | 11529 Mbit/s |
| IGMP snooping | Yes |
| Apps supported | ASUS Router |
| WLAN data transfer rate (max) | 11529 Mbit/s |
| Features | |
| DHCP server | Yes |
| Processor cores | 4 |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | Firewall |
| Parental control | Yes |
| Built-in processor | Yes |
| Internal memory | 2000 MB |
| Flash memory | 256 MB |
| Processor frequency | 2 GHz |
| MU-MIMO technology | Yes |
| Protocols | |
| DHCP server | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| DC-in jack | Yes |
| Ethernet WAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 3 A |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 159 mm |
| Depth | 72 mm |
| Height | 186 mm |
| Packaging content | |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Number of products included | 2 pc(s) |
Contact Creative Systems to check your coverage needs and confirm this mesh system fits your environment before purchase.
