What it is

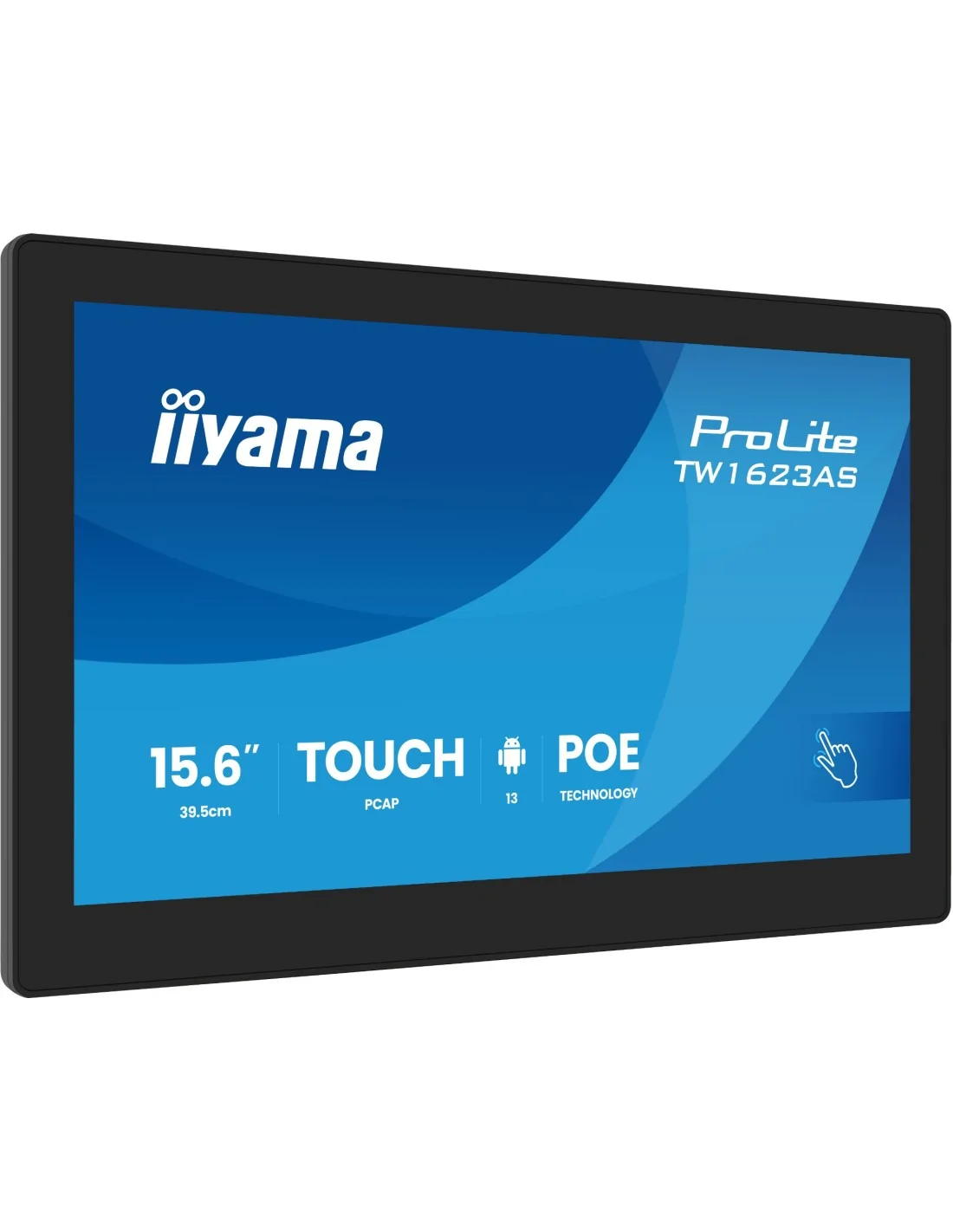

The iiyama TW1623AS-B3P is a 15.6-inch Full HD PCAP touchscreen monitor with Android support, PoE technology, and iiSignage² software.
Who it's for
It's suitable for interactive kiosks, digital signage, or compact touch-based applications where reliable touch input and network power delivery are needed.
Why it's good
This model offers a bright 450 cd/m² display with accurate 16.7 million colours, and its integration with PoE reduces cable clutter and simplifies installation.
When to choose it
Consider this touchscreen when you want a compact, versatile touch monitor that supports Android apps and can be powered over Ethernet for flexible deployment.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 450 cd/m² |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Pixel pitch | 0.1792 x 0.1792 mm |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 30 ms |
| Display diagonal | 39.6 cm (15.6") |
| Contrast ratio (typical) | 1000:1 |
| Surface hardness | 6H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Colour depth | 8 bit |
| Display diagonal (metric) | 39.5 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 385 cd/m² |
| Response time measurement type | GTG (Gray to Gray) |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Operating system installed | Android |
| Operating system version | 13 |
| Operating hours (hours/days) | 24/7 |
| Management features | |
| On Screen Display (OSD) | Yes |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Design | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 1.8 mm |
| Ports & interfaces | |
| USB version | 2.0 |
| HDMI ports quantity | 1 |
| HDCP | Yes |
| Audio input | Mini Jack |
| Microphone in | Yes |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Mini HDMI ports quantity | 1 |
| USB Touch port | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Technical details | |
| Placement supported | Indoor |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Product colour | Black |
| User controls | Power switch, volume/ button +, volume/ button - |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Packaging content | AC adapter, interchangeable plugs (EU/UK) |
| Brightness | 385 cd/m² |
| Built-in processor | Yes |
| Google applications | Google Chrome, Gmail, Google Calendar |
| Power supply type | External |
| Active display area (W x H) | 344.2 x 193.6 mm |
| Weight (with stand) | 1.5 kg |
| Touch method | finger, glove (latex), capacitive stylus |
| Surface hardness | 6H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| Cable management | Yes |
| Power | |
| Power supply type | External |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 9 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Weight & dimensions | |
| Width (with stand) | 387 mm |
| Depth (with stand) | 30.5 mm |
| Height (with stand) | 244 mm |
| Weight (with stand) | 1.5 kg |
| Package width | 477 mm |
| Package depth | 75 mm |
| Package height | 298 mm |
| Package weight | 2.45 kg |
| Width | 387 mm |
| Weight | 1.5 kg |
| Height | 244 mm |
| Packaging data | |
| Package width | 477 mm |
| Package depth | 75 mm |
| Package height | 298 mm |
| Package weight | 2.45 kg |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Power adapter included | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Power adapter included | Yes |
| AC adapter included | Yes |
| Sustainability | |
| Sustainability certificates | ErP |
| Thin Client | |
| Operating system installed | Android |
| Processor cores | 4 |
| Processor frequency | 2 GHz |
| Processor family | ARM Rockchip |
| Processor model | RK3568 |
| Processor architecture | ARM Cortex-A55 |
| Other features | |
| Packaging content | AC adapter, interchangeable plugs (EU/UK) |
| Brightness | 385 cd/m² |
| Built-in processor | Yes |
| Google applications | Google Chrome, Gmail, Google Calendar |
| Active display area (W x H) | 344.2 x 193.6 mm |
| USB ports quantity | 3 |
| AC adapter included | Yes |
| Placement supported | Indoor |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Ethernet LAN (RJ-45) ports | 1 |
| User controls | Power switch, volume/ button +, volume/ button - |
| Touch method | finger, glove (latex), capacitive stylus |
| Width | 387 mm |
| Weight | 1.5 kg |
| Height | 244 mm |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Control panel | Power switch, volume/ button +, volume/ button - |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Quick start guide | Yes |
| Surface hardness | 6H |
| Power supply type | External |
| Ethernet LAN | Yes |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
| Certificates | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
Please contact Creative Systems to confirm this touchscreen suits your application and for stock details.
