What it is

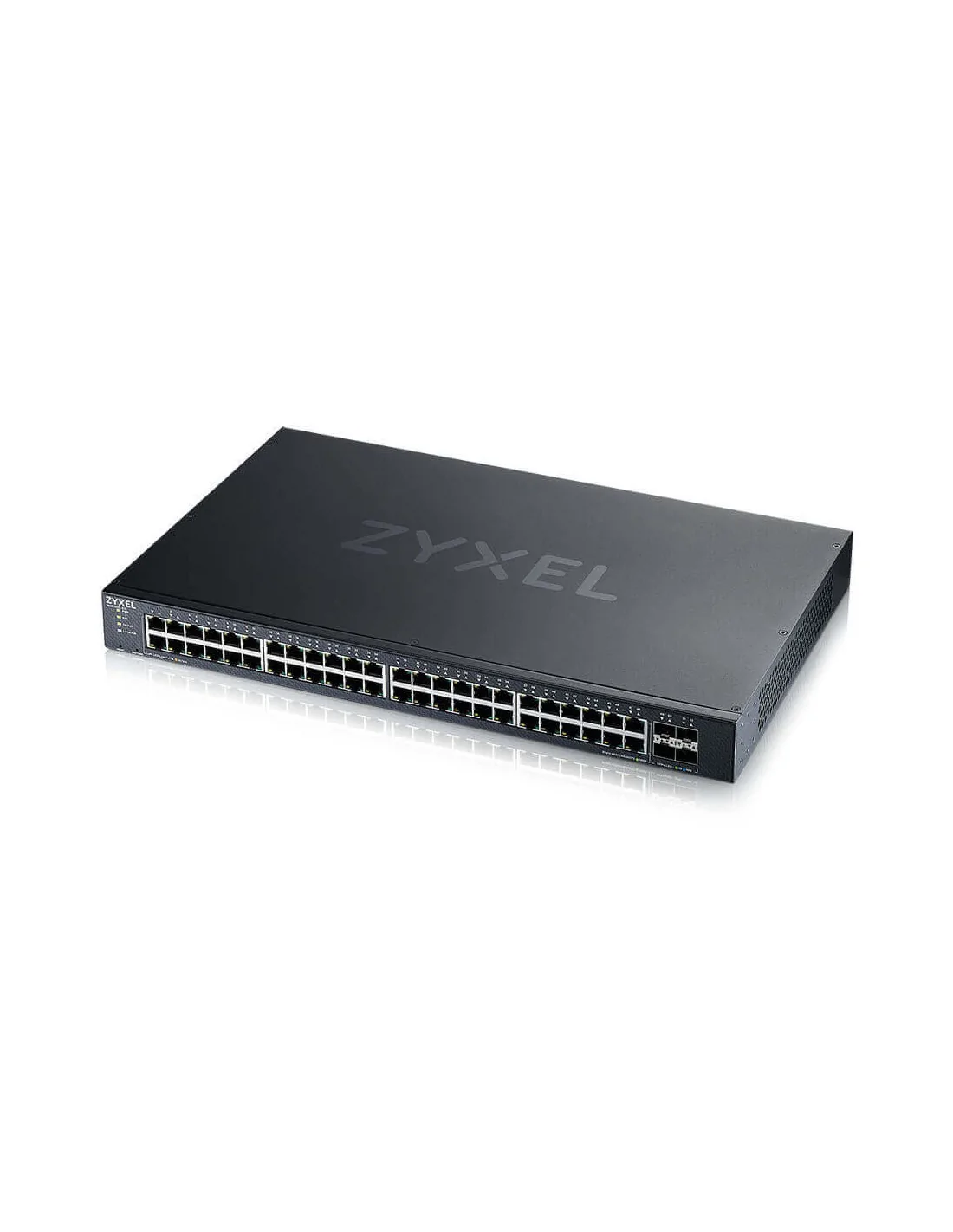

The Zyxel XGS1935-52 is a 52-port smart managed switch combining 48 gigabit Ethernet RJ-45 ports with four 10G SFP+ uplink slots. It supports Layer 2+ and Layer 3 functions, including traffic shaping and classification, managed via a web interface or command line.
Who it's for
This switch suits organisations needing robust network management and moderate Layer 3 routing, with a flexible number of high-speed connections. It's a fit for businesses requiring mostly gigabit Ethernet with some 10G uplink capacity.
Why it's good
With a total of 52 ports, including 4 SFP+ slots, it offers scalability and management features like traffic shaping and classification. The mix of ports supports typical office networking demands without overspending on higher port speeds where they're not needed.
When to choose it
Opt for this switch when you require a mostly gigabit environment with a few 10G uplinks, and need Layer 2+/Layer 3 smart management features for traffic control. It works well in medium to large local networks prioritising performance and control.
Specifications
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2+/L3 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 130.9 Mpps |
| Security | |
| IGMP snooping | Yes |
| DHCP features | DHCP client, DHCP relay |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Performance | |
| Mean time between failures (MTBF) | 919583 h |
| Internal memory | 512 MB |
| Flash memory | 32 MB |
| Packet buffer memory | 1.5 MB |
| Power | |
| Power consumption (max) | 45.6 W |
| Power supply included | Yes |
| Power protection features | Surge protection |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 24.7 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Power protection features | Surge protection |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 155.594 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 270 mm |
| Height | 43 mm |
| Weight | 3.7 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
| Technical details | |
| Mean time between failures (MTBF) | 919583 h |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Internal memory | 512 MB |
| Flash memory | 32 MB |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | AC |
Get in touch with us to confirm this switch matches your network size and management needs, and to check current availability.
