What it is

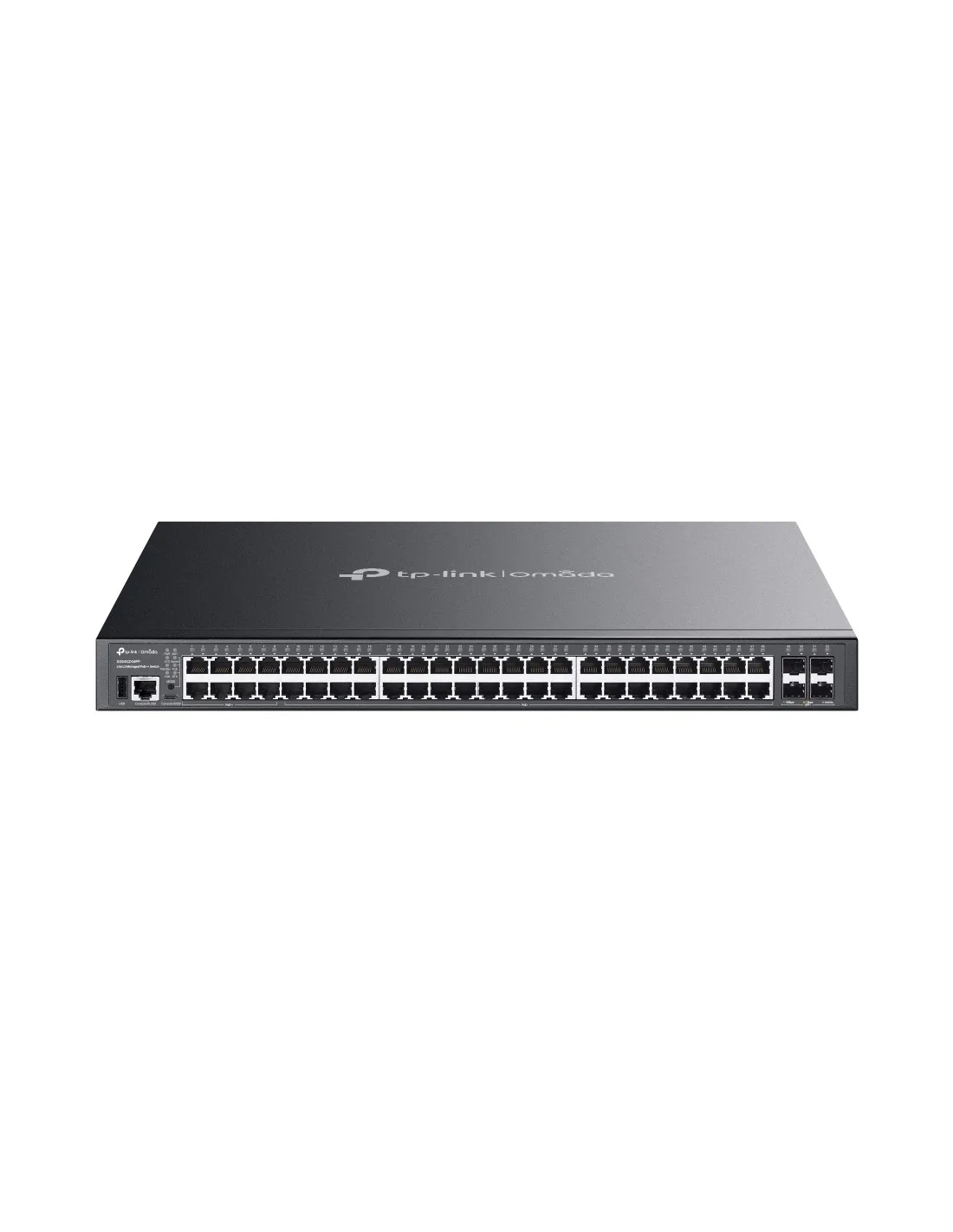

The TP-Link Omada SG5452XMPP is a Layer 3 managed switch offering 48 Gigabit Ethernet ports with PoE++ support and 4 dedicated 10Gb SFP+ slots for uplinks or stacking.
Who it's for
This switch suits small to medium-sized networks requiring centralized management, power over Ethernet for devices like IP cameras or phones, and high-speed backbone connections.
Why it's good
It supports ARP inspection for security, web-based management for easy setup, and cloud management options, making it versatile for IT teams that need control without complex tooling.
When to choose it
Opt for this switch if you require a stackable device with 48 gigabit PoE++ ports and 10G slots in a Lite Layer 3 managed environment, especially when existing infrastructure demands scalability and secure management.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| USB Type-C ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| VLAN support | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 130.94 Mpps |
| Number of VLANs | 4000 |
| Security | |
| IP-MAC-Port binding | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| DHCP features | DHCP relay, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 3 fan(s) |
| Performance | |
| Physical stacking (units) | 4 |
| Processor frequency | 1200 MHz |
| Noise level | 58.5 dB |
| Memory type | DRAM |
| Mean time between failures (MTBF) | 275.277 h |
| Internal memory | 2000 MB |
| Flash memory | 512 MB |
| Firmware upgradeable | Yes |
| Processor manufacturer | ARM |
| Telnet | Yes |
| Built-in processor | Yes |
| Fanless | Yes |
| Packet buffer memory | 12 MB |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 893.6 W |
| Power supply included | Yes |
| Surge protection voltage | 6 kV |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Surge protection | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 40 |
| Total Power over Ethernet (PoE) budget | 770 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Other features | |
| Management level | 4 |
| Bandwidth | 88 Gbit/s |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 3047.18 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Technical details | |
| Physical stacking (units) | 4 |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1200 MHz |
| Noise level | 58.5 dB |
| Mean time between failures (MTBF) | 275.277 h |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Telnet | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Memory | |
| Packet buffer memory | 12 MB |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 512 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
Get in touch with Creative Systems to confirm compatibility with your setup and check stock before ordering.
