What it is

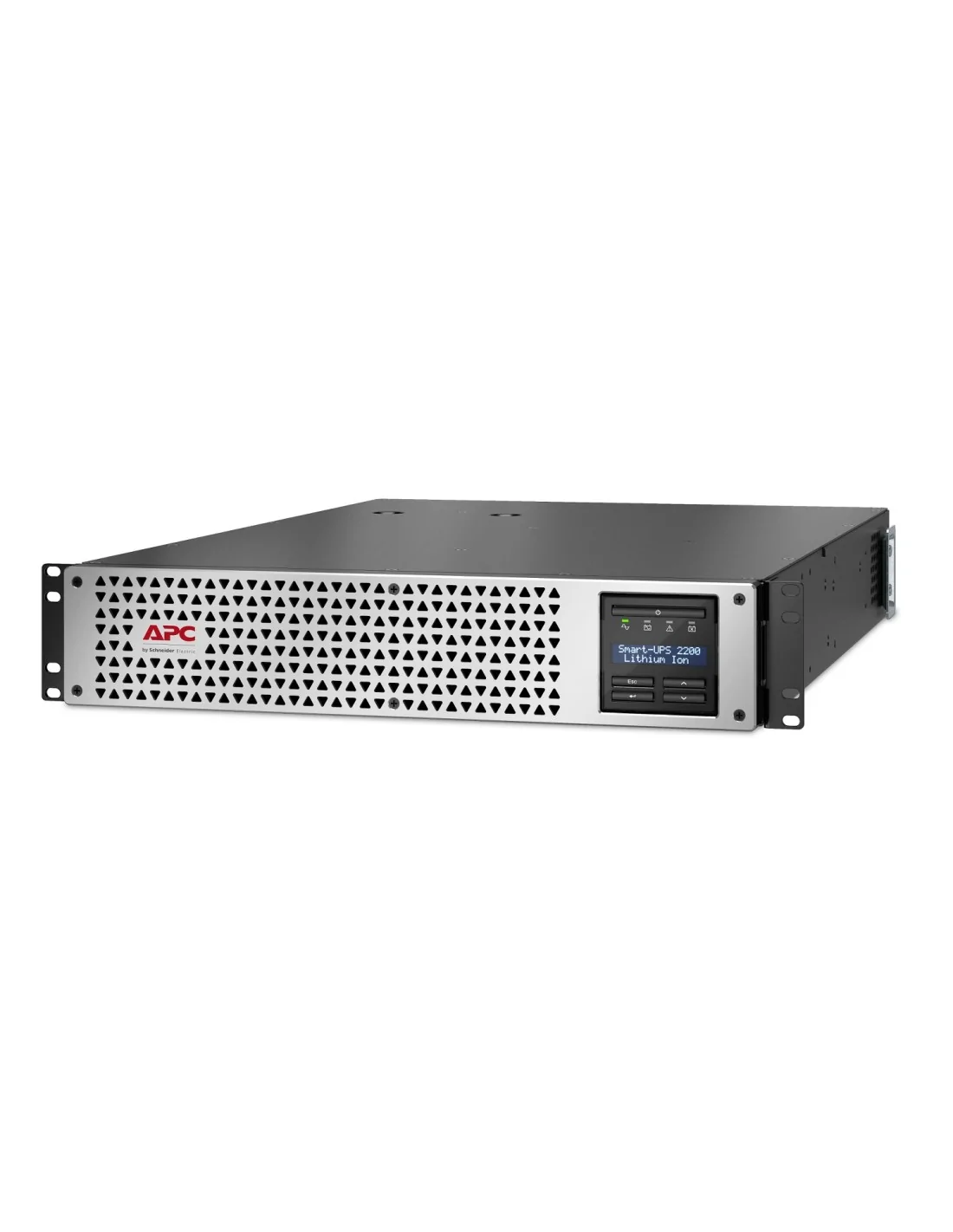

The APC Smart-UPS Li-ion SMTL2200RMI2UC is a 2200VA rackmount UPS designed to provide battery backup and power conditioning for critical equipment. It fits into a 2U rack space and includes a mix of 8 C13 and 1 C19 power outlets.
Who it's for
This UPS suits IT environments needing reliable short-term power support for moderately sized rack-mounted hardware, such as servers and network devices.
Why it's good
Its lithium-ion battery offers longer life and reduced weight compared to traditional UPS batteries. The unit supports SmartConnect remote monitoring, making management easier without extra hardware.
When to choose it
Opt for this APC UPS when you need a 2U rackmount solution that balances power capacity, outlet variety, and remote monitoring, without overbuilding for smaller loads.
Specifications
| Power | |
|---|---|
| Output power | 1980 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 375 J |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Output power capacity | 2.2 kVA |
| Ports & interfaces | |
| Cable length | 2 m |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Number of output IEC jumpers | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| SmartConnect port | Yes |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Response time | 6 ms |
| LED indicators | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Response time | 6 ms |
| Output power | 1980 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 375 J |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 2.2 kVA |
| Input frequency | 50/60 Hz |
| Power source type | AC |
| Heat dissipation | 215 BTU/h |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black, Grey |
| Certification | IRAM, RCM |
| Cable length | 2 m |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Compliance certificates | CE, GS mark, RoHS, VDE |
| Certificates | |
| Certification | IRAM, RCM |
| Compliance certificates | CE, GS mark, RoHS, VDE |
| Packaging content | |
| Cables included | USB cable |
| Rack mount kit | Yes |
| Management card included | No |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Package width | 980 mm |
| Package depth | 600 mm |
| Package height | 254 mm |
| Weight | 42.3 kg |
| Width | 432 mm |
| Package weight | 49.7 kg |
| Height | 86 mm |
| Depth | 683 mm |
| Packaging data | |
| Cables included | USB cable |
| Rack mount kit | Yes |
| Package width | 980 mm |
| Package depth | 600 mm |
| Package height | 254 mm |
| Package weight | 49.7 kg |
| Management card included | No |
| Other features | |
| Input connection type | BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
Check with us to confirm this UPS meets your rack space and power requirements before ordering.
