Uninterruptible Power Supplies (UPSs)

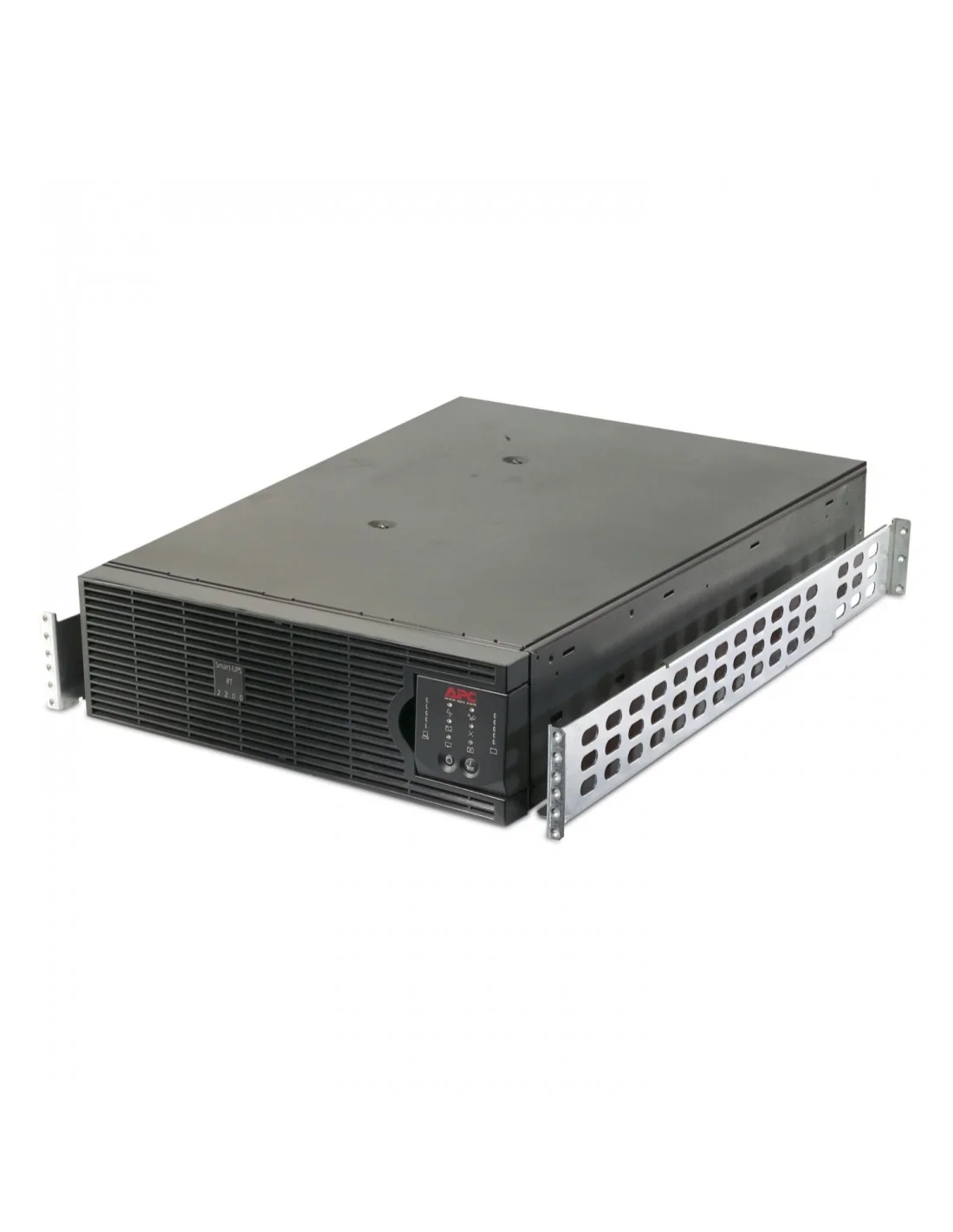

The APC Smart-UPS RT is an online UPS with a power rating of 2200VA and output power capacity of 1540 watts. It includes multiple output connections such as IEC 60230 C19, IEC 60230 C13, and IEC Jumpers. This model is includes a lead-acid battery and is suitable for marine applications. The UPS features double conversion online technology and sine wave output.
| Power | |
|---|---|
| Output power | 1540 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 555 J |
| Efficiency | 92% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Crest factor | 3:1 |
| Output power capacity | 2.2 kVA |
| Ports & interfaces | |
| Cable length | 2.5 m |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Number of output IEC jumpers | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Waveform | Sine |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Country of origin | Philippines |
| Waveform | Sine |
| Output power | 1540 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 555 J |
| Efficiency | 92% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 2.2 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 2.5 h |
| Replacement battery cartridge | APCRBC140 |
| Battery replacement accessibility | End-user |
| Design | |
| Country of origin | Philippines |
| Rack capacity | 3U |
| Form factor | Rackmount |
| Product colour | Black |
| Certification | CE; DNV; KCC |
| Cable length | 2.5 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output voltage | 230 V |
| Mounting | front |
| Voltage | 230 V |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 4342.273094382711 |
| Compliance certificates | RoHS, REACH, WEEE |
| Packaging data | |
| Package dimensions (WxDxH) | 603 x 980 x 347 mm |
| Package weight | 63.6 kg |
| Certificates | |
| Certification | CE; DNV; KCC |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Weight & dimensions | |
| Weight | 54.5 kg |
| Width | 130 mm |
| Package weight | 63.6 kg |
| Height | 432 mm |
| Depth | 660 mm |
| Logistics data | |
| Country of origin | Philippines |
| Customs product code (TARIC) | 8504409590 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 4342.273094382711 |
| Other features | |
| Output voltage | 230 V |
| Mounting | front |
| Voltage | 230 V |
| Input connection type | BS1363A British; IEC 60320 C20; Schuko CEE 7 / EU1-16P |
| Dimensions (WxDxH) | 130 x 660 x 432 mm |
| Package dimensions (WxDxH) | 603 x 980 x 347 mm |

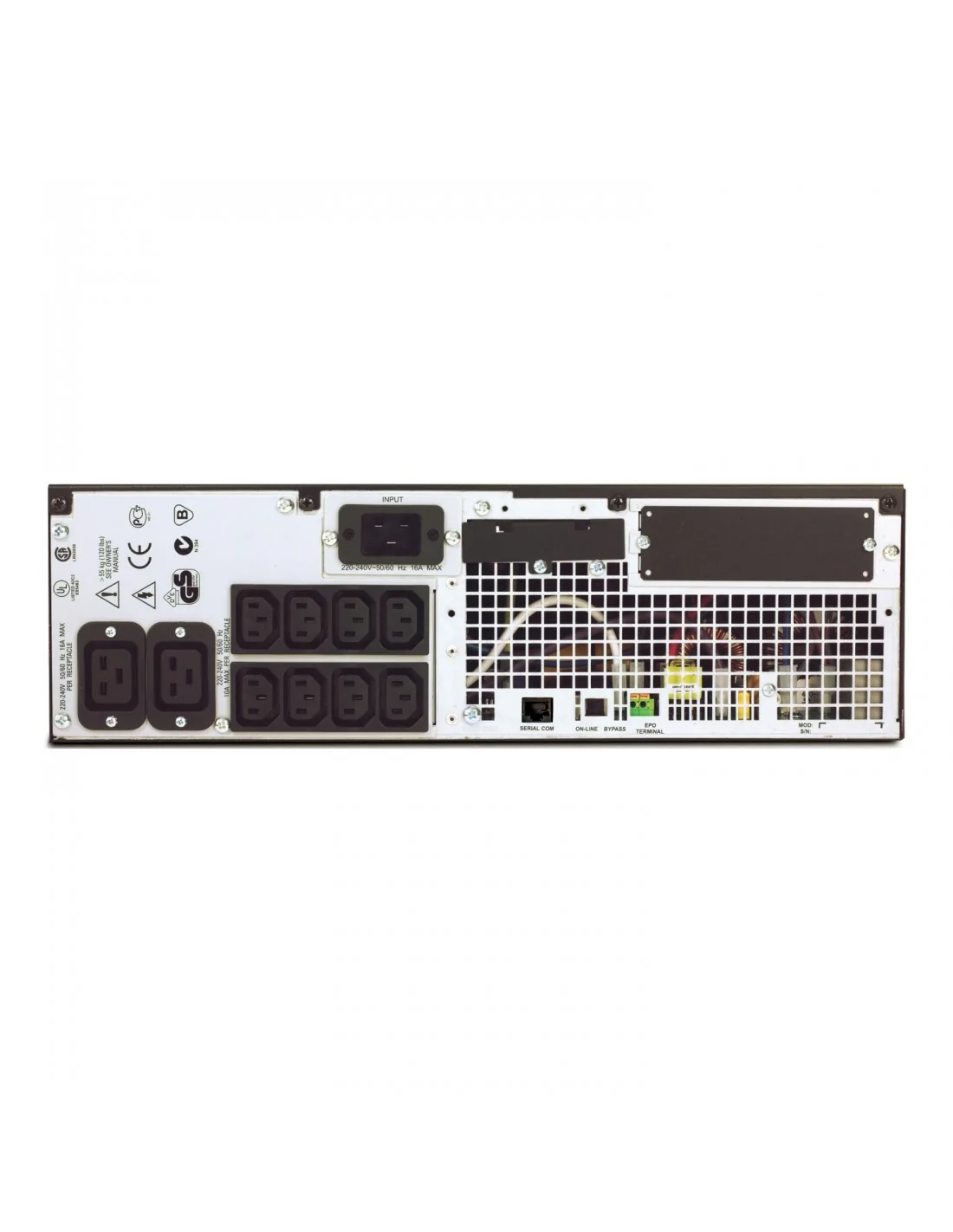

| Output connection type | 8 IEC 60320C13; 2 IEC Jumpers; 2 IEC 60320C19 |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
