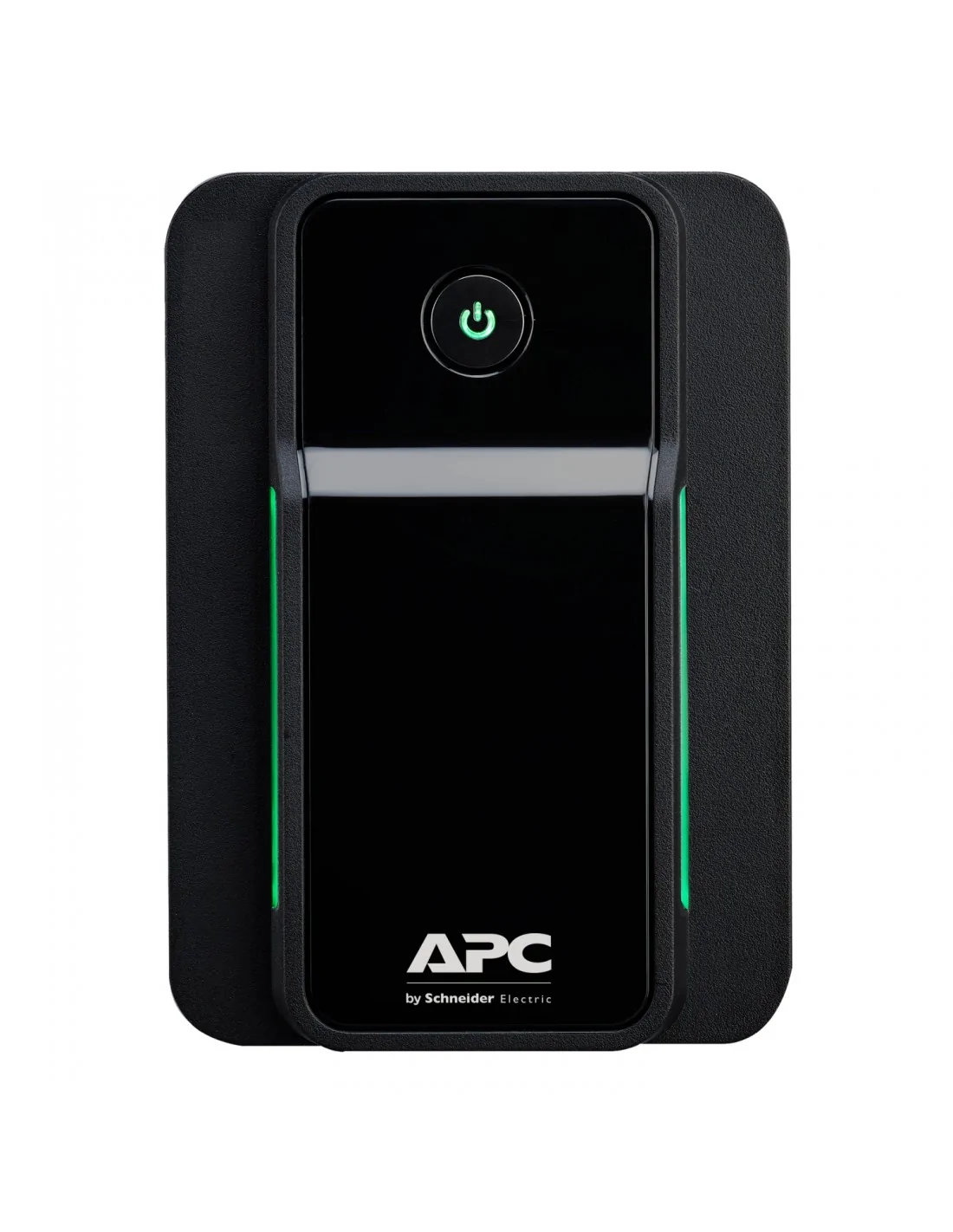

500VA / 300W line-interactive UPS Controls LED brightness , Quick Mute and Generator Setting by pressing one single power button. Our New BX Series offers Dataline protection for data transmission through Network with 1 gigabit speed. Ideal for Home and Office Users USB communication cable ready to use
| Power | |
|---|---|
| Input power factor | 0.63 |
| Output power | 300 W |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Surge energy rating | 273 J |
| Efficiency | 96.1% |
| Output power capacity | 0.5 kVA |
| Ports & interfaces | |
| Cable length | 1.5 m |
| SmartSlot | No |
| Cabling technology | 10/100/1000Base-T(X) |

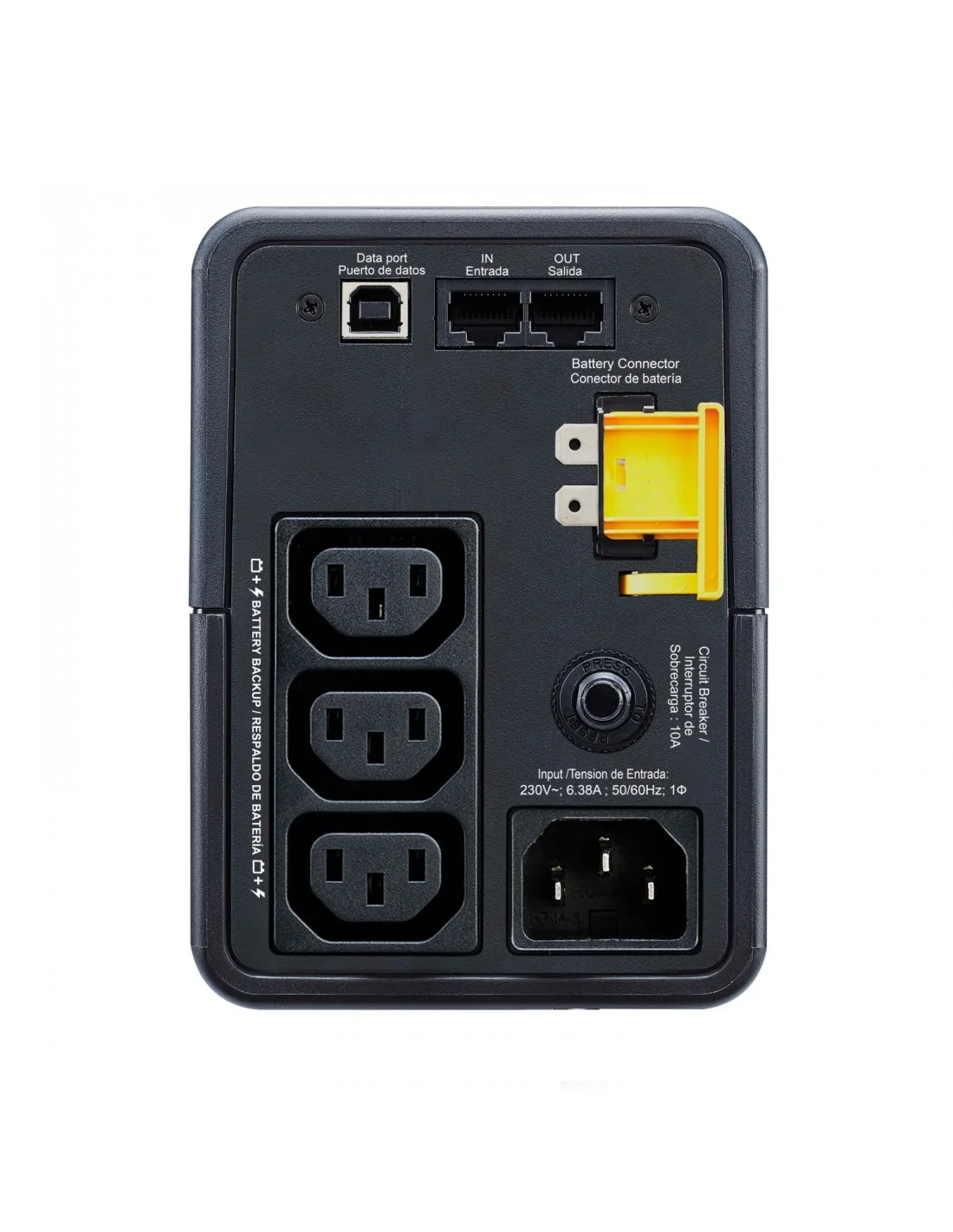

| AC outlets quantity | 3 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Number of output IEC jumpers | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| SmartConnect port | No |
| Performance | |
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| LED indicators | Battery replacement |
| Surge protection | Yes |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Input power factor | 0.63 |
| Output power | 300 W |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Surge energy rating | 273 J |
| Efficiency | 96.1% |
| Surge protection | Yes |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 0.5 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery voltage | 12 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 8 h |
| Automatic battery test | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Tower |
| LED indicators | Battery replacement |
| Product colour | Black |
| Certification | CE, EAC, EN/IEC 62040-1 |
| Cable length | 1.5 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CE, EAC, EN/IEC 62040-1 |
| Compliance certificates | RoHS |
| Packaging content | |
| Management card included | No |
| Weight & dimensions | |
| Package width | 142 mm |
| Package depth | 346 mm |
| Package height | 222 mm |
| Weight | 4.2 kg |
| Width | 98 mm |
| Package weight | 4.5 kg |
| Height | 138 mm |
| Depth | 310 mm |
| Packaging data | |
| Package width | 142 mm |
| Package depth | 346 mm |
| Package height | 222 mm |
| Package weight | 4.5 kg |
| Management card included | No |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
