What it is

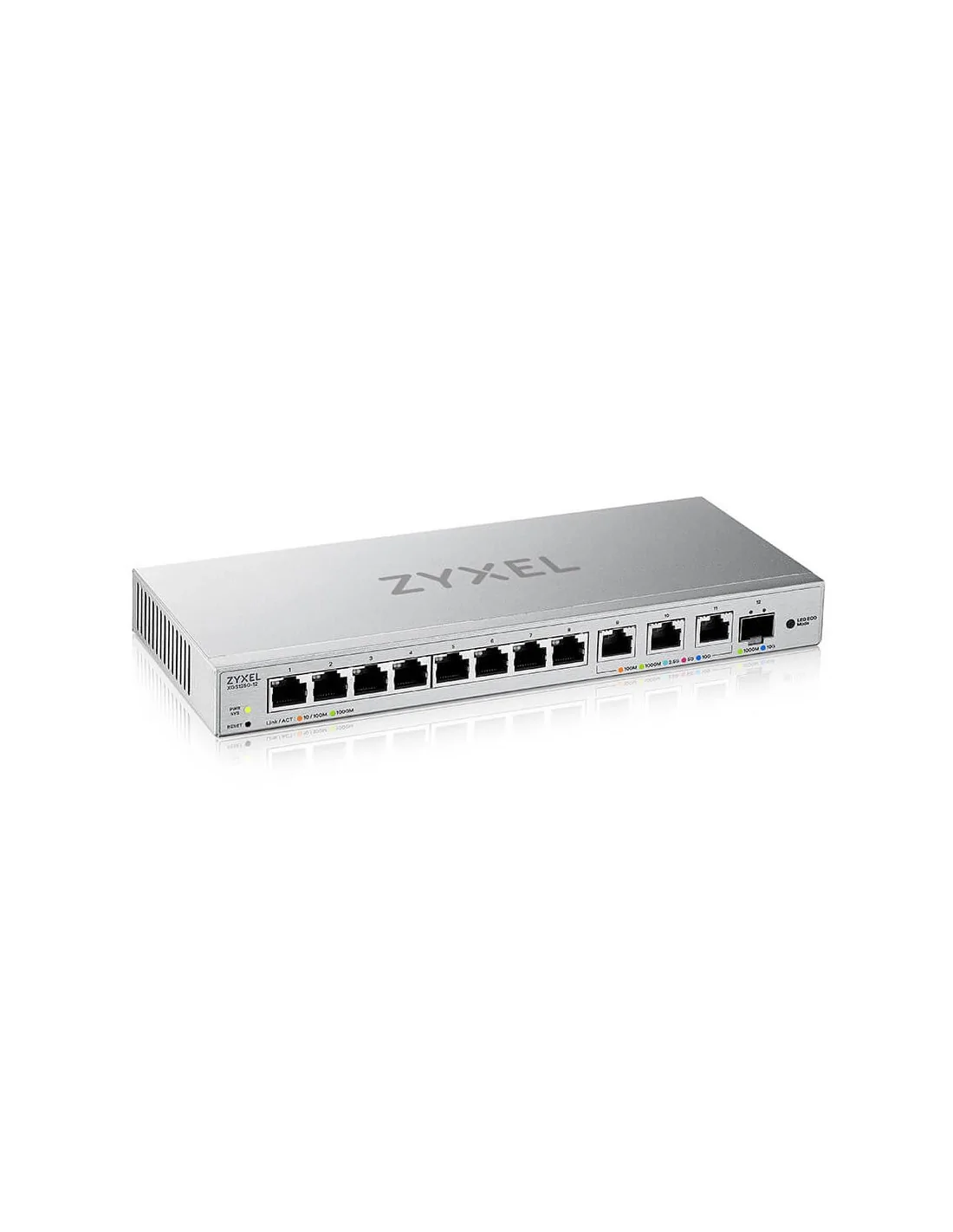

The Zyxel XGS1250-12 is a 12-port managed multi-gigabit Ethernet switch featuring 11 RJ-45 10G ports and one 10G SFP+ slot, suitable for high-speed network environments.
Who it's for
This switch fits small to medium business networks or advanced home setups that require managed L2 features and multi-gigabit speeds for bandwidth-intensive applications.
Why it's good
It provides web-based management, a reset button for easy recovery, and supports 10G Ethernet on most ports. It balances high port density with manageable complexity.
When to choose it
Select this switch when your network demands multiple 10G Ethernet connections with basic L2 management but you don't need full enterprise-grade features or higher port counts.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP+ module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 11 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 12000 |
| MAC address table | 16000 entries |
| Switching capacity | 96 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 71.42 Mpps |
| Security | |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Wall mountable | Yes |
| Reset button | Yes |
| DIN rail mounting | No |
| Product colour | Grey |
| Stackable | No |
| LED indicators | Yes |
| Housing material | Aluminium, Iron |
| Rack mounting | No |
| Number of fans | 1 fan(s) |
| Redundant fans support | Yes |
| Power | |
| Power consumption (max) | 20.06 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 250 mm |
| Depth | 104 mm |
| Height | 27 mm |
| Weight | 783 g |
| Performance | |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Grey |
| Stackable | No |
| Housing material | Aluminium, Iron |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Contact us to ensure this Zyxel 10G switch meets your network setup and to check stock details.
