What it is

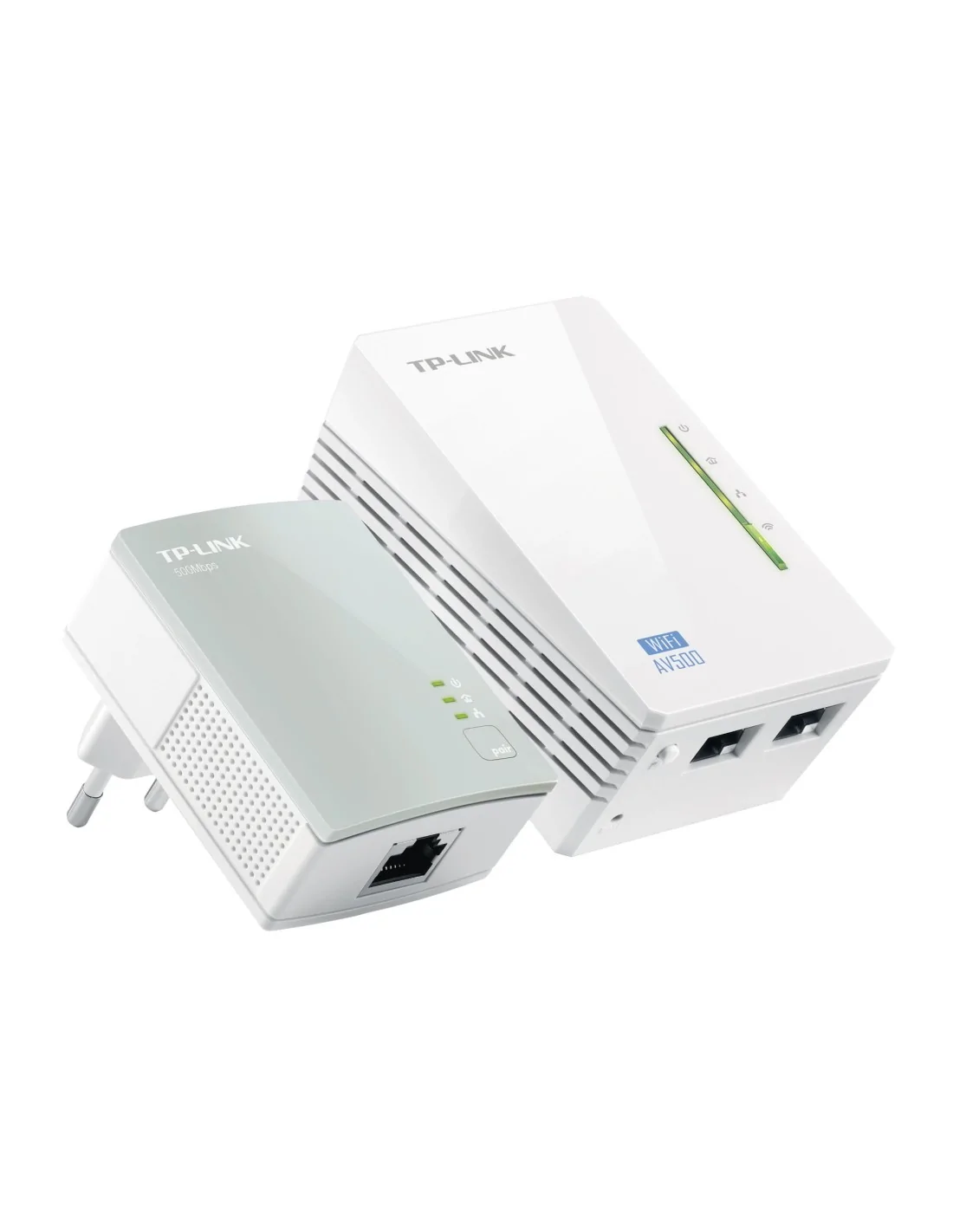

The TP-LINK TL-WPA4220KIT is a Powerline WiFi extender set, including one TL-WPA4220 unit and one TL-PA4010 adapter. It offers a Powerline data rate up to 500Mbps and wireless N speeds up to 300Mbps.
Who it's for
This kit suits users wanting to extend their network via existing electrical wiring, improving Wi-Fi coverage in areas where wireless signals are weak without running new cables.
Why it's good
It provides two Ethernet ports for wired devices, supports Wi-Fi clone to easily copy router settings, and can manage multiple IPTV streams for smooth media playback.
When to choose it
Use this kit when you need a straightforward Wi-Fi coverage boost using your home or office powerlines, especially if you require both wireless and wired connections in multiple rooms.
Specifications
| Performance | |
|---|---|
| Ethernet LAN interface type | Fast Ethernet |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | Yes |
| Maximum data transfer rate | 300 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV |
| Modulation | OFDM |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Maximum operating distance | 300 m |
| Technical details | |
| Ethernet LAN interface type | Fast Ethernet |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | Yes |
| Maximum data transfer rate | 300 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV |
| Modulation | OFDM |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Maximum operating distance | 300 m |
| LED indicators | Yes |
| Product colour | White |
| Certification | CE, FCC |
| Harmonized System (HS) code | 85171800 |
| Compliance certificates | RoHS |
| Power | |
| Power consumption (typical) | 7.216 W |
| Power consumption (standby) | 4.61 W |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Design | |
| LED indicators | Yes |
| Product colour | White |
| Certification | CE, FCC |
| System requirements | |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 94 mm |
| Depth | 54 mm |
| Height | 40 mm |
| Certificates | |
| Compliance certificates | RoHS |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
| Logistics data | |
| Harmonized System (HS) code | 85171800 |
Before ordering, check with Creative Systems that this kit matches your home wiring and speed needs.
