In stock — ready to ship
What it is

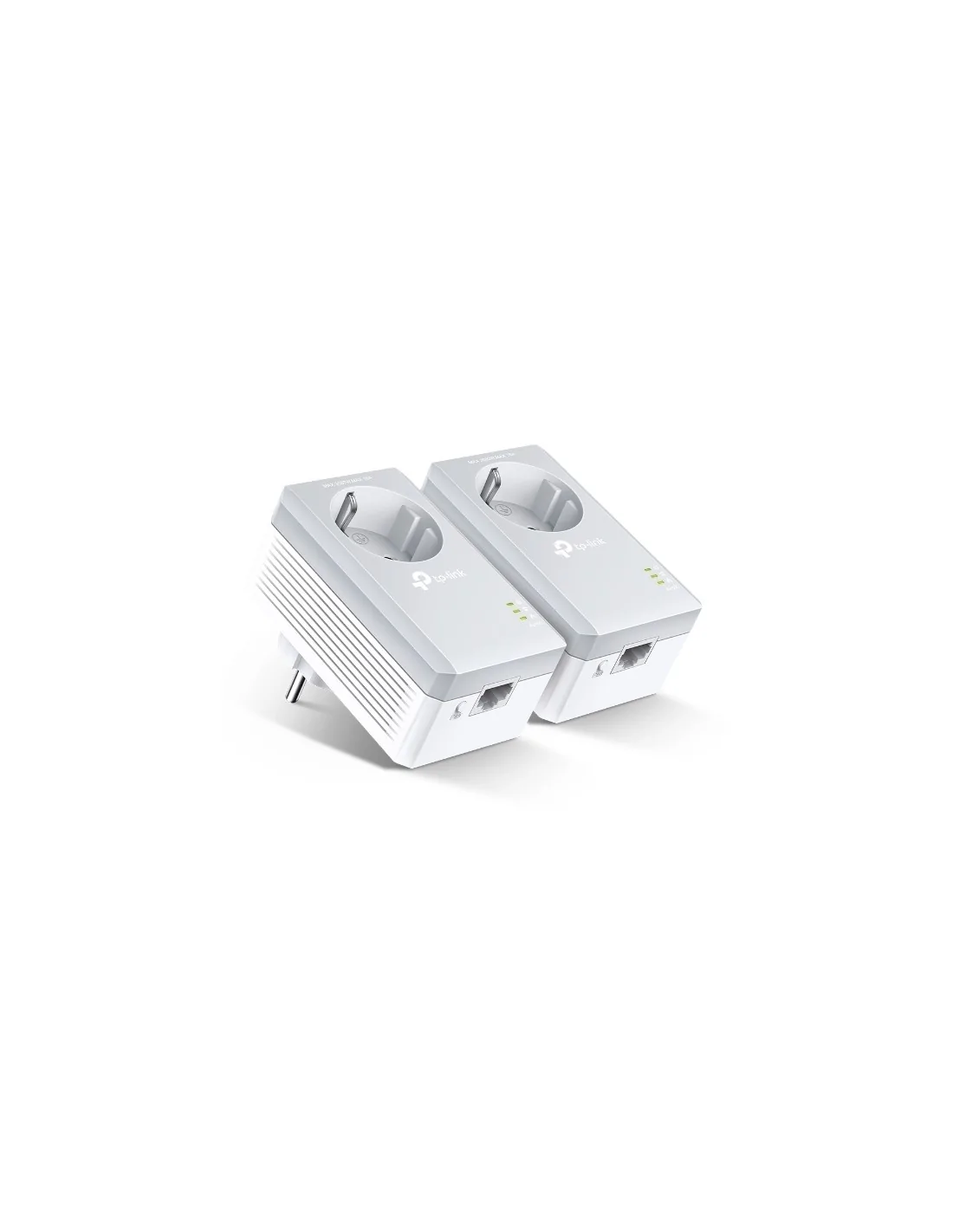

The TP-LINK TL-PA4010PKIT is a Passthrough Powerline 600 starter kit that uses your home’s electrical wiring to extend your network. It includes two adapters with a 10/100Mbps Ethernet port and delivers speeds up to 600Mbps over distances up to 300 metres.
Who it's for
Ideal for users wanting to improve wired network access in areas without direct Ethernet cabling, especially where Wi-Fi signals are weak or inconsistent.
Why it's good
It features 128-bit AES encryption for security and a built-in power socket passthrough to avoid losing a power outlet. The kit supports HomePlug AV standards for compatibility with similar powerline devices.
When to choose it
Choose this kit if you need a straightforward way to extend your network through power lines without running cables, and 100Mbps Ethernet speeds are sufficient.
Specifications
| Performance | |
|---|---|
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Maximum data transfer rate | 600 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Encryption button | Yes |
| Plug and Play | Yes |
| Technical details | |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Maximum data transfer rate | 600 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| LED indicators | Yes |
| Encryption button | Yes |
| Product colour | White |
| Plug and Play | Yes |
| Certification | FCC, CE |
| Harmonized System (HS) code | 85171800 |
| Compliance certificates | RoHS |
| Power | |
| Power consumption (typical) | 4.6 W |
| Power consumption (standby) | 0.72 W |
| Design | |
| LED indicators | Yes |
| Product colour | White |
| Certification | FCC, CE |
| System requirements | |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 58 mm |
| Height | 42 mm |
| Package width | 190 mm |
| Package depth | 136 mm |
| Package height | 100 mm |
| Package weight | 540 g |
| Packaging data | |
| Package width | 190 mm |
| Package depth | 136 mm |
| Package height | 100 mm |
| Package weight | 540 g |
| Certificates | |
| Compliance certificates | RoHS |
| Packaging content | |
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
| Logistics data | |
| Harmonized System (HS) code | 85171800 |
Check with Creative Systems to confirm this kit fits your home setup and network speed needs before ordering.
