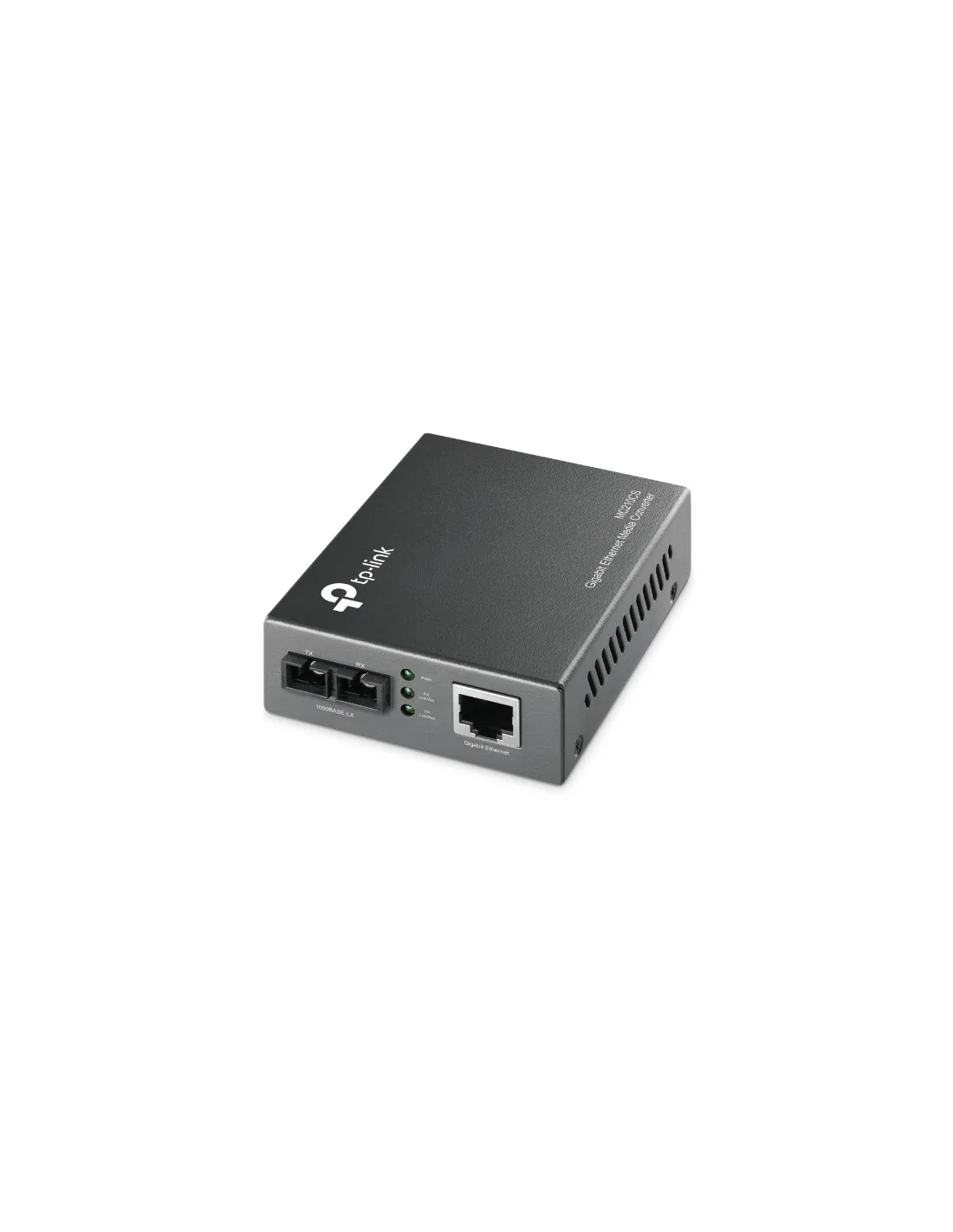

TP-Link Omada MC210CS network media converter 1000 Mbit/s 1310 nm Single-mode Black

TP-LINK
Last items in stock
€27.89 excl. VAT

€34.30 incl. VAT

1000Mbps, Single-Mode, 1310 nm, 15000 m

Description

The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 9.3 miles (15km).
Network
Cable types supportedCat5, Cat5e
Copper ethernet cabling technology1000BASE-LX, 1000BASE-T
Networking standardsIEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet interface typeGigabit Ethernet
Auto MDI/MDI-XYes
Maximum data transfer rate1000 Mbit/s
Fiber optic connectorSC
Performance
Wavelength1310 nm
Maximum transfer distance15000 m
Fiber mode structureSingle-mode
Features
LED indicatorsYes
Product colourBlack
InternalNo
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSC
Power
Power consumption (max)1.8 W
Weight & dimensions
Width95 mm
Depth73 mm
Height27 mm
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Technical details
Wavelength1310 nm
Maximum transfer distance15000 m
Fiber mode structureSingle-mode
InternalNo
Harmonized System (HS) code85176990
Compliance certificatesRoHS
Indication
LED indicatorsYes
Design
LED indicatorsYes
Product colourBlack
InternalNo
Colour
Product colourBlack
Certificates
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code85176990

Product Details

MC210CS
