What This Product Does

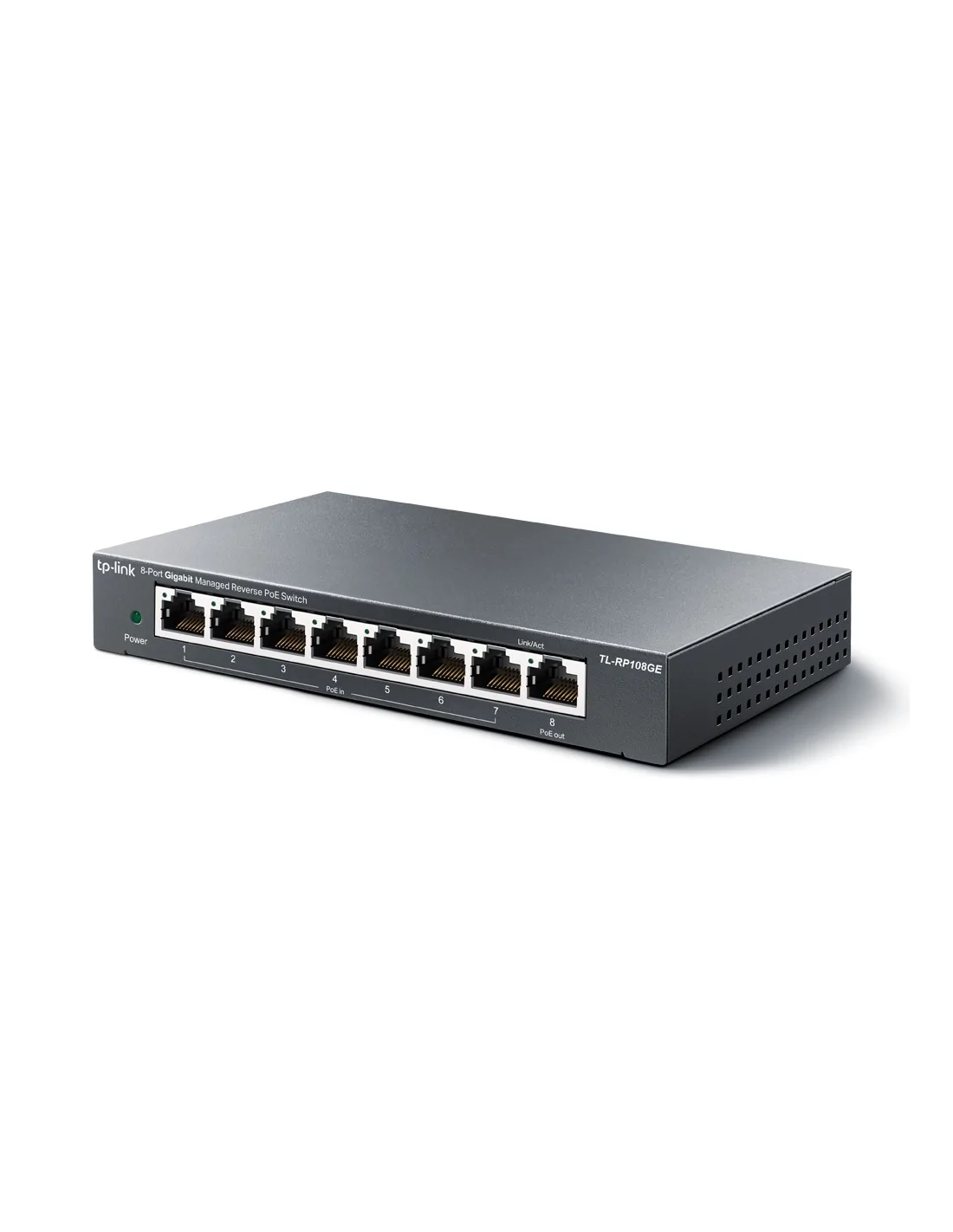

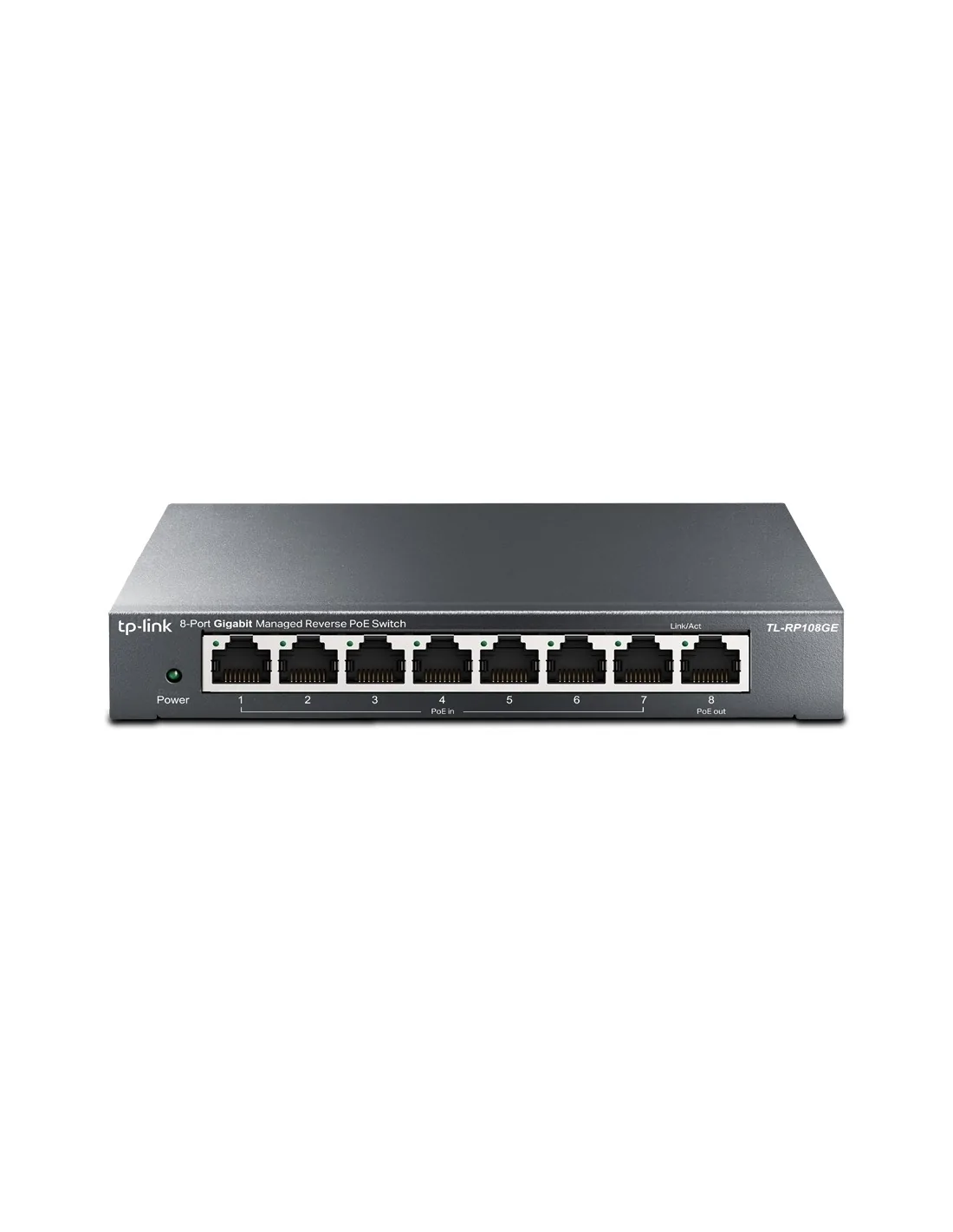

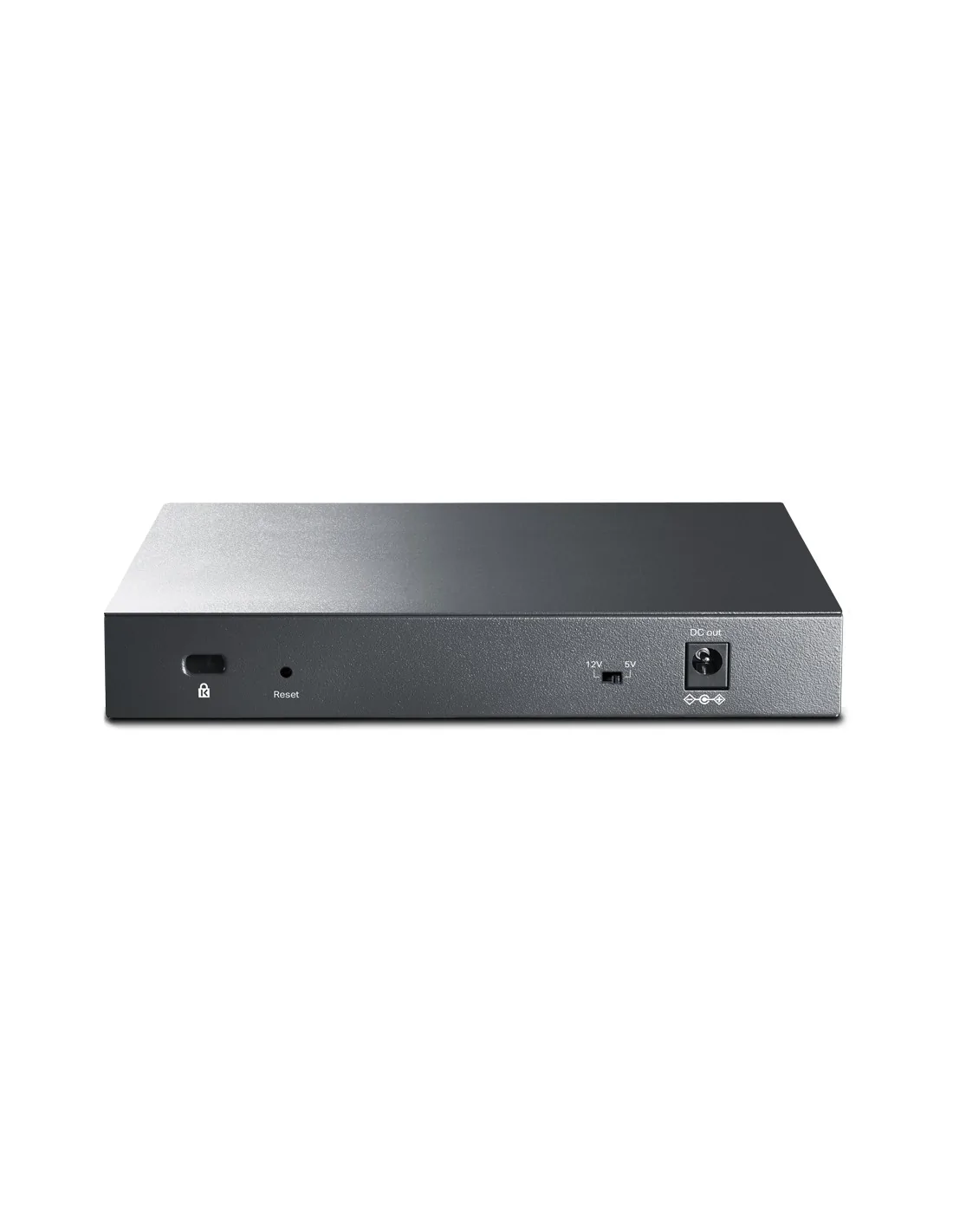

The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.
The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Broadcast storm control | Yes |
| 10G support | No |
| Half duplex | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 16000 |
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 11.9 Mpps |
| Number of VLANs | 4000 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Design | |
| Reset button | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Certification | FCC, CE, RoHS |
| Power | |
| Power supply included | No |
| Input voltage | 5 V |
| Input current | 1 A |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 99.1 mm |
| Height | 25 mm |
| Technical details | |
| Product colour | Black |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Input voltage | 5 V |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
