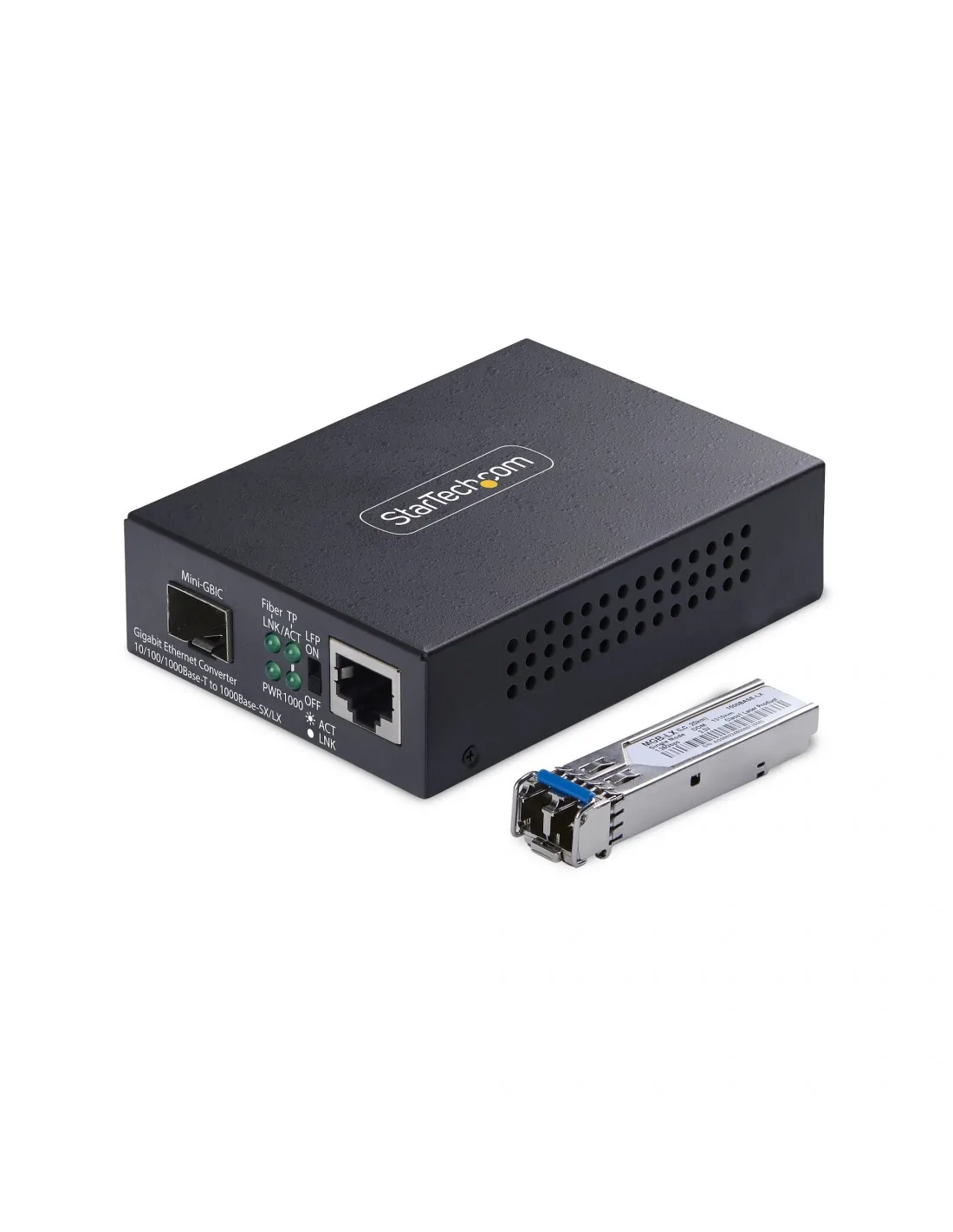

Convert and extend a Gigabit Ethernet connection up to 24.8 miles (40km) over Single Mode LC fiber.
This Gigabit Ethernet to fiber media converter offers a reliable way to extend your network up to 40 km (24.8 mi.) using single-mode LC fiber, providing increased range, enhanced security, and reduced interference compared to copper-based connections. It's TAA compliant and designed for government and commercial applications where long-distance and rack-mountable fiber access is needed.
Built for Versatility and Performance
Convert 10/100/1000 Mbps RJ-45 to Gigabit LC fiber using a media converter that complies with IEEE 802.3 standards. It supports full/half duplex, auto-negotiation, MDI/MDI-X, and 9K jumbo frames for high-performance networking in mixed copper-fiber environments.
Smart Diagnostics and Rugged Design

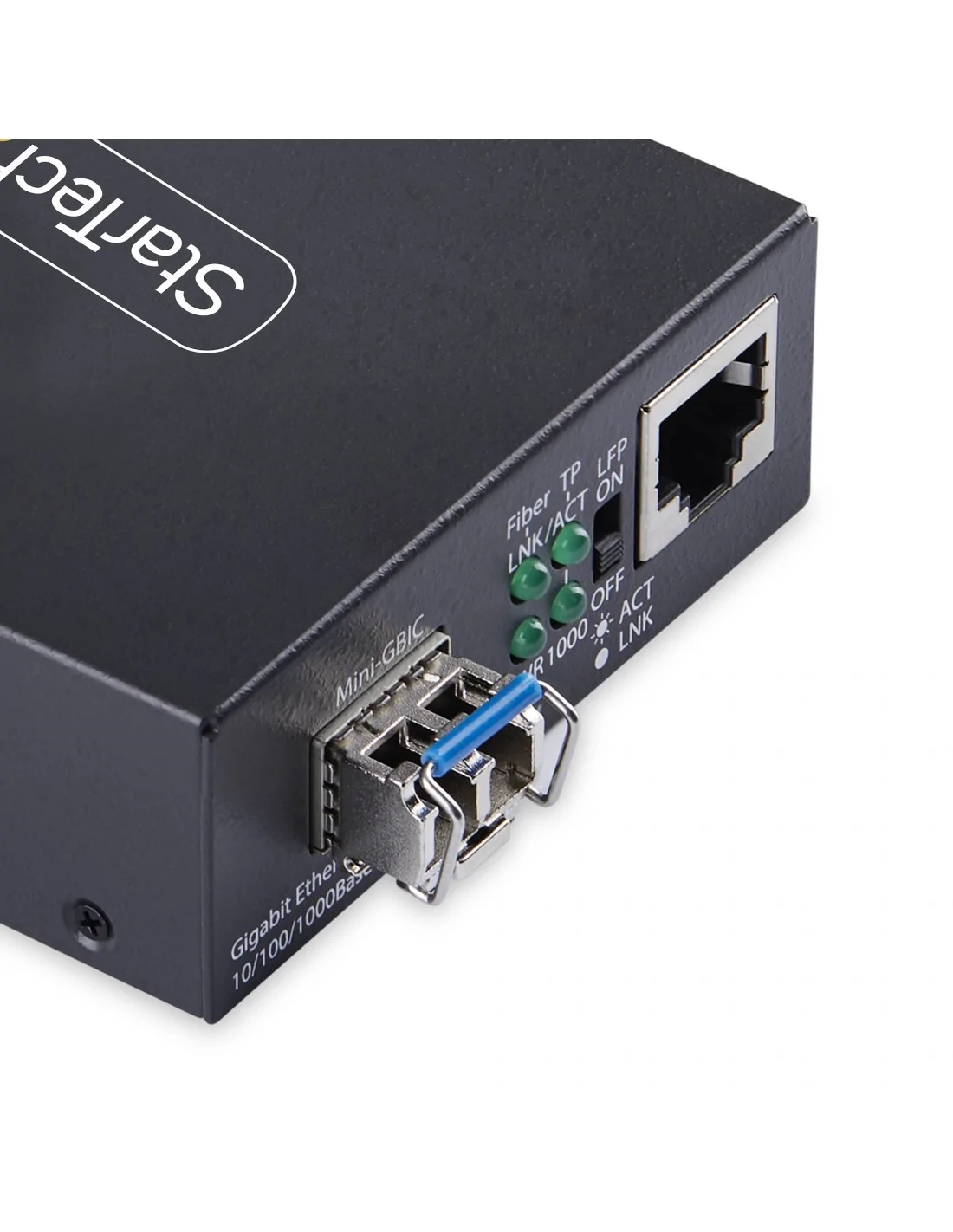

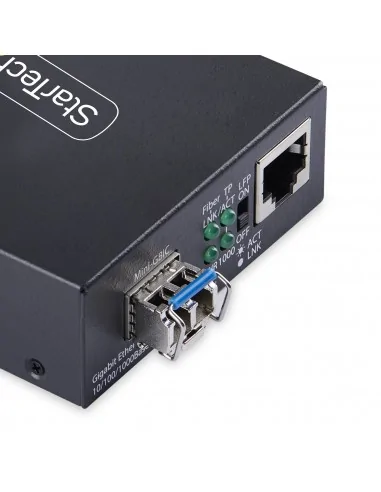

Built with a compact full metal chassis, this converter includes LED indicators for power and link activity, plus a DIP switch to enable Link Fault Passthrough (LFP) with LLCF/LLR for easier network troubleshooting and reliability.
Flexible Installation for Any Network Setup

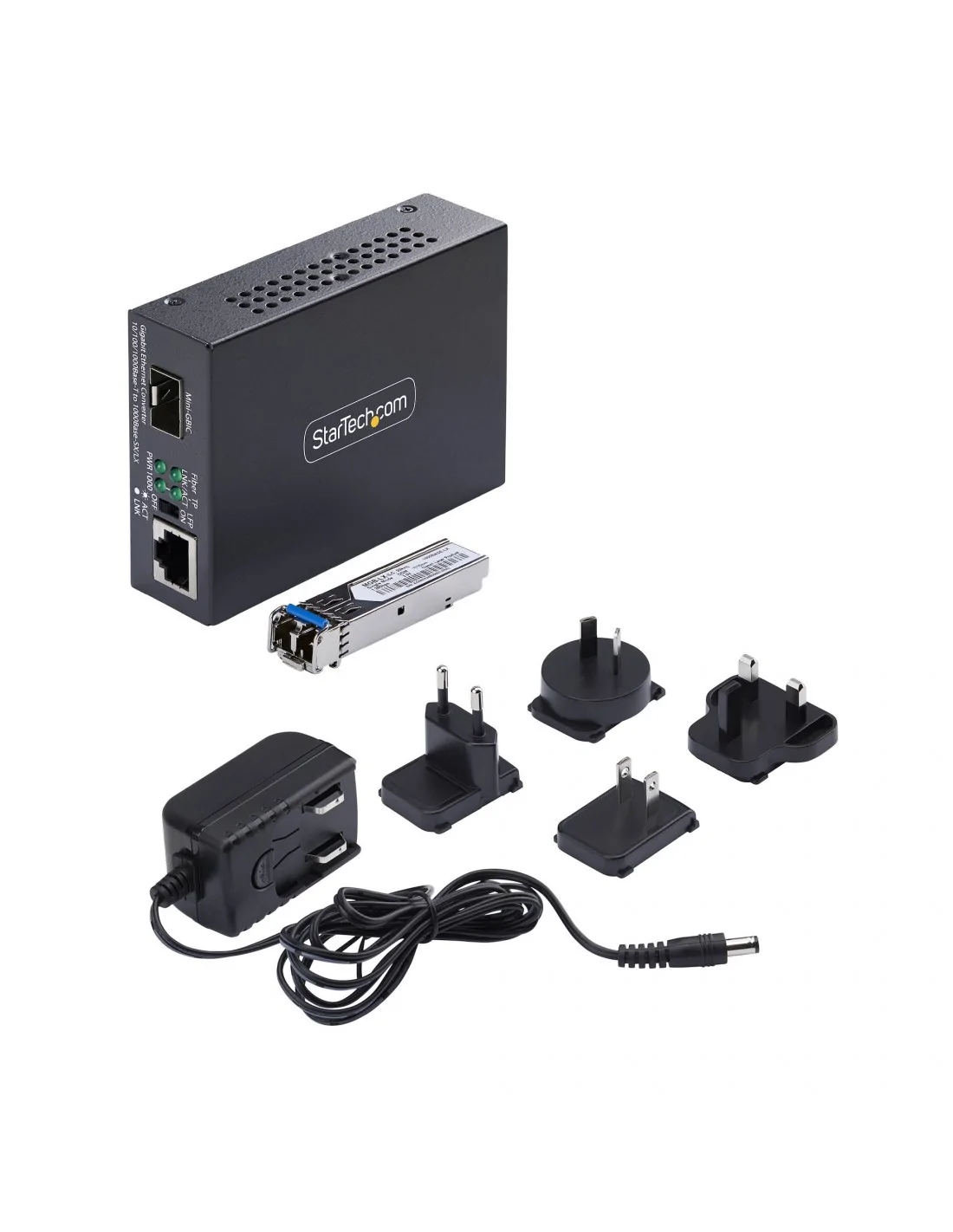

Deploy in minutes with plug-and-play setup and multiple mounting options including wall-mount, DIN-rail, or media chassis installation. It includes a 5V DC, 2A power adapter, making it ideal for server rooms or network closets.
This Gigabit Ethernet to fiber media converter offers a reliable way to extend your network up to 40 km (24.8 mi.) using single-mode LC fiber, providing increased range, enhanced security, and reduced interference compared to copper-based connections. It's TAA compliant and designed for government and commercial applications where long-distance and rack-mountable fiber access is needed.
Built for Versatility and Performance
Convert 10/100/1000 Mbps RJ-45 to Gigabit LC fiber using a media converter that complies with IEEE 802.3 standards. It supports full/half duplex, auto-negotiation, MDI/MDI-X, and 9K jumbo frames for high-performance networking in mixed copper-fiber environments.
Smart Diagnostics and Rugged Design
Built with a compact full metal chassis, this converter includes LED indicators for power and link activity, plus a DIP switch to enable Link Fault Passthrough (LFP) with LLCF/LLR for easier network troubleshooting and reliability.
Flexible Installation for Any Network Setup
Deploy in minutes with plug-and-play setup and multiple mounting options including wall-mount, DIN-rail, or media chassis installation. It includes a 5V DC, 2A power adapter, making it ideal for server rooms or network closets.
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Flow control support | No |
| Auto-negotiation | Yes |
| Jumbo frames | 9000 |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Duplex system | Full, Half |
| Converter output interface | 1000Base-LX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Link Fault Pass-through (LFP) | Yes |
| Fiber optic connector | LC |
| Performance | |
| Wavelength-division multiplexing (WDM) | No |
| Wavelength | 1310 nm |
| Maximum transfer distance | 40000 m |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 50000 h |
| Jumbo frames support | Yes |
| Flow control support | No |
| Auto-negotiation | Yes |
| Features | |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| Power | |
| Power over Ethernet (PoE) | No |
| Input voltage | 100 - 240 V |
| Input current | 0.4 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power consumption (typical) | 4.6 W |
| Weight & dimensions | |
| Width | 94 mm |
| Depth | 79 mm |
| Height | 26 mm |
| Package depth | 280 mm |
| Package width | 133 mm |
| Package height | 66 mm |
| Package weight | 328 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| AC adapter included | Yes |
| User guide | Yes |
| Packaging data | |
| Package depth | 280 mm |
| Package width | 133 mm |
| Package height | 66 mm |
| Package weight | 328 g |
| Technical details | |
| Housing material | Metal |
| Wavelength | 1310 nm |
| Maximum transfer distance | 40000 m |
| Fiber mode structure | Single-mode |
| Internal | No |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Indication | |
| LED indicators | Yes |
| Design | |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 50000 h |
| Colour | |
| Product colour | Black |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 580 mm |
| Master (outer) case height | 305 mm |
| Products per master (outer) case | 20 pc(s) |
