What it is

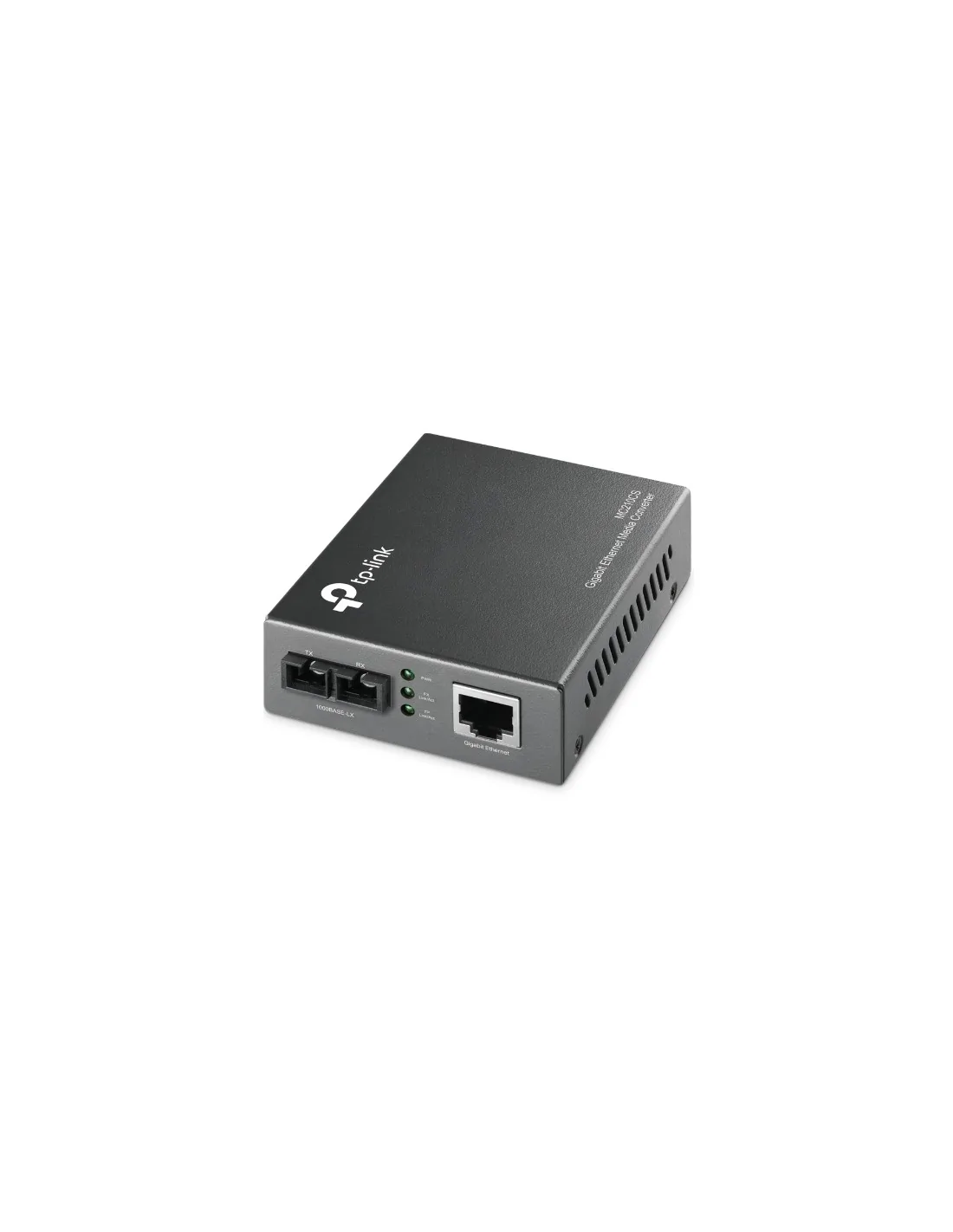

The TP-Link MC210CS is a gigabit media converter supporting single-mode fiber transmission at 1310 nm with a distance capacity of up to 15 km.
Who it's for
This converter suits installations where long-distance gigabit fiber links are needed, such as between buildings or across campuses, using single-mode fiber.
Why it's good
It supports gigabit Ethernet with auto MDI/MDI-X and is compatible with Cat5 and Cat5e copper cabling on the Ethernet side, facilitating integration in mixed-cabling environments.
When to choose it
Select this model when your network setup requires gigabit speed over single-mode fiber for distances beyond 10 km.
Specifications
| Network | |
|---|---|
| Cable types supported | Cat5, Cat5e |
| Copper ethernet cabling technology | 1000BASE-LX, 1000BASE-T |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 15000 m |
| Fiber mode structure | Single-mode |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Power consumption (max) | 1.8 W |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 15000 m |
| Fiber mode structure | Single-mode |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Check your network’s fiber type and distance needs with Creative Systems before purchasing the MC210CS.
