Overview

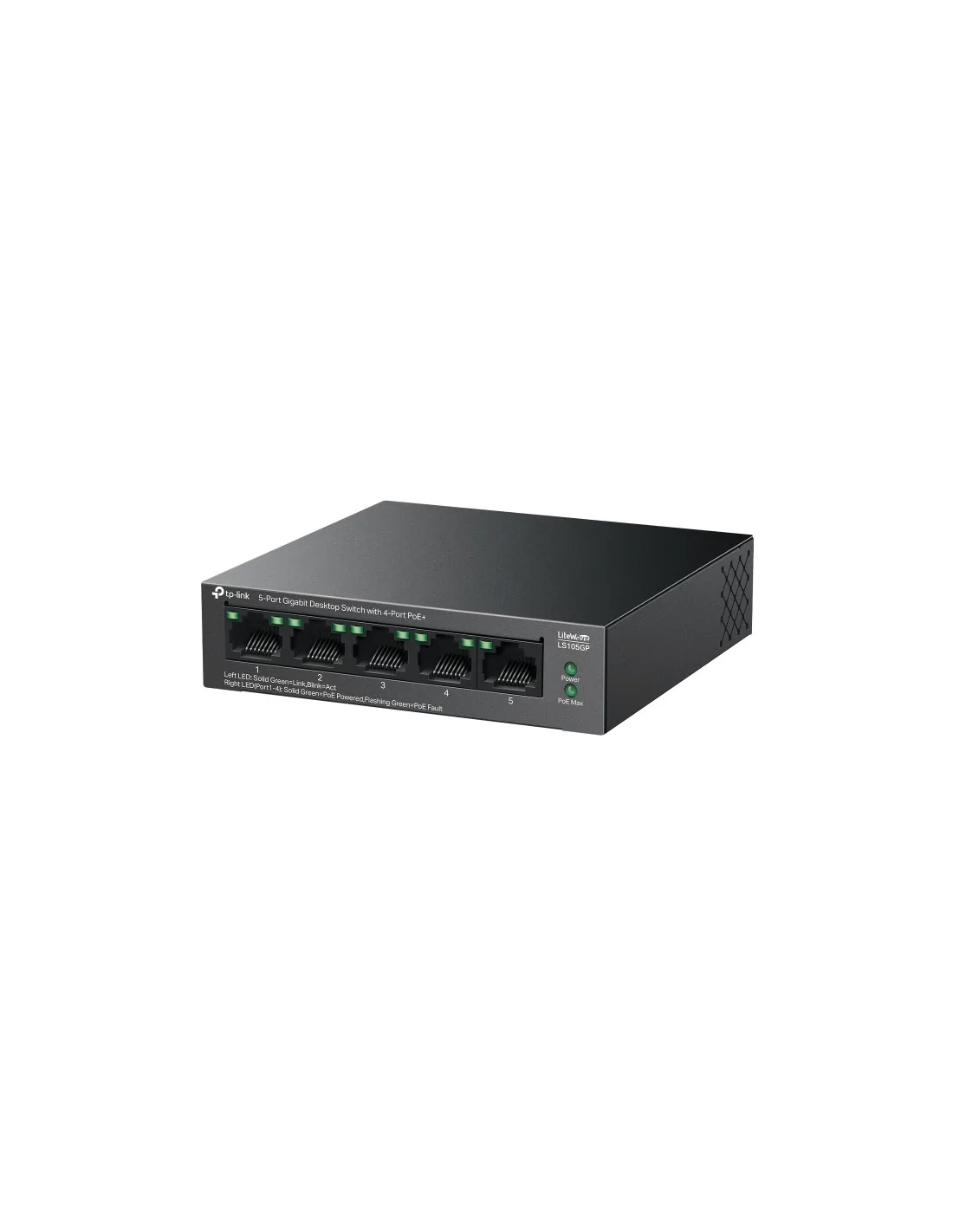

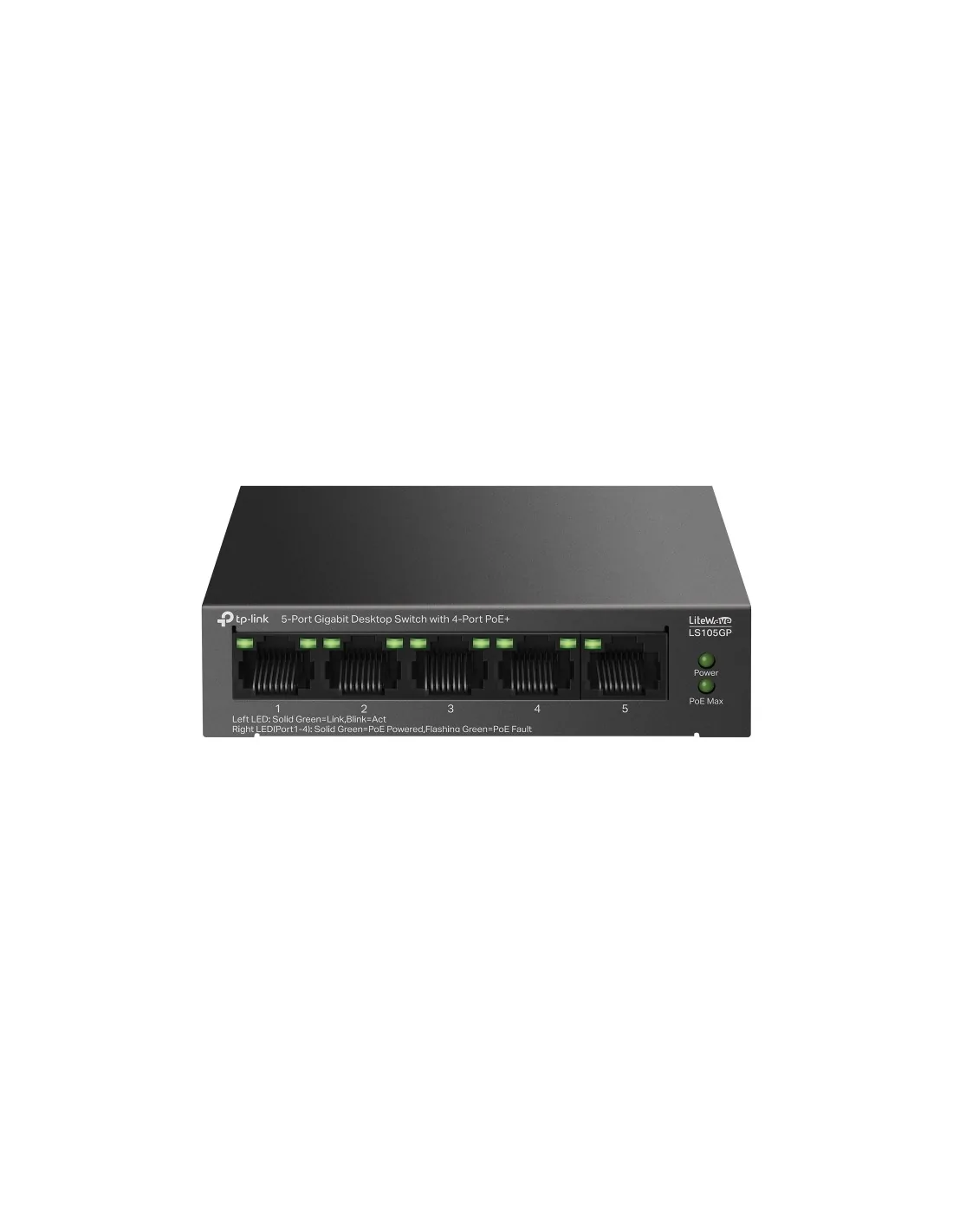

The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Cable types supported | Cat3, Cat5e, Cat4, Cat5 |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 16000 |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 7.44 Mpps |
| Security | |
| IGMP snooping | Yes |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Power | |
| Power consumption (max) | 74.46 W |
| Power supply included | Yes |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| DC input voltage | 53.5 V |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 253.16 BTU/h |
| Weight & dimensions | |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Packaging content | |
| User guide | Yes |
| Packaging data | |
| Package type | Box |
| User guide | Yes |
| Performance | |
| Auto-negotiation | Yes |
| Technical details | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Indication | |
| LED indicators | Yes |
