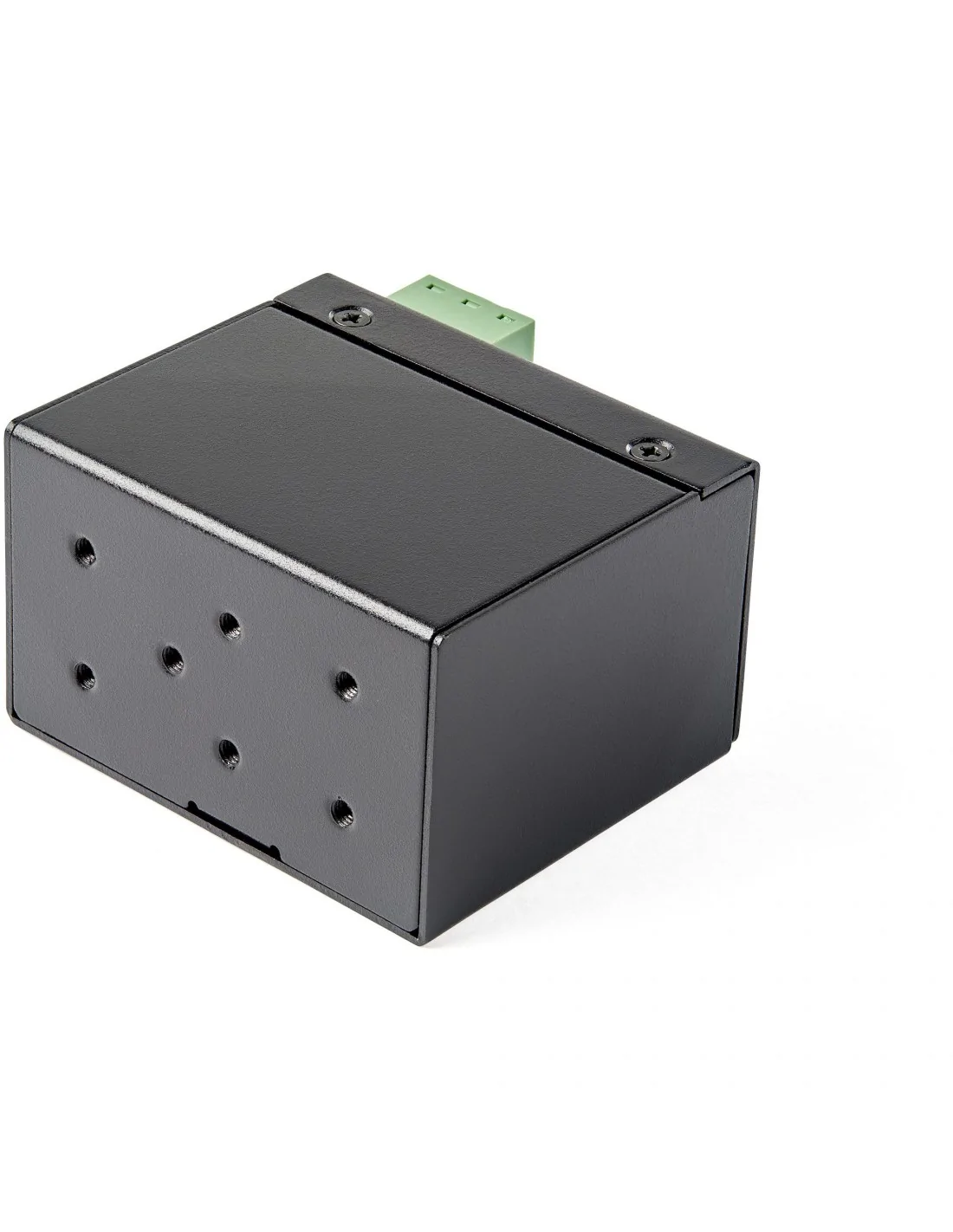

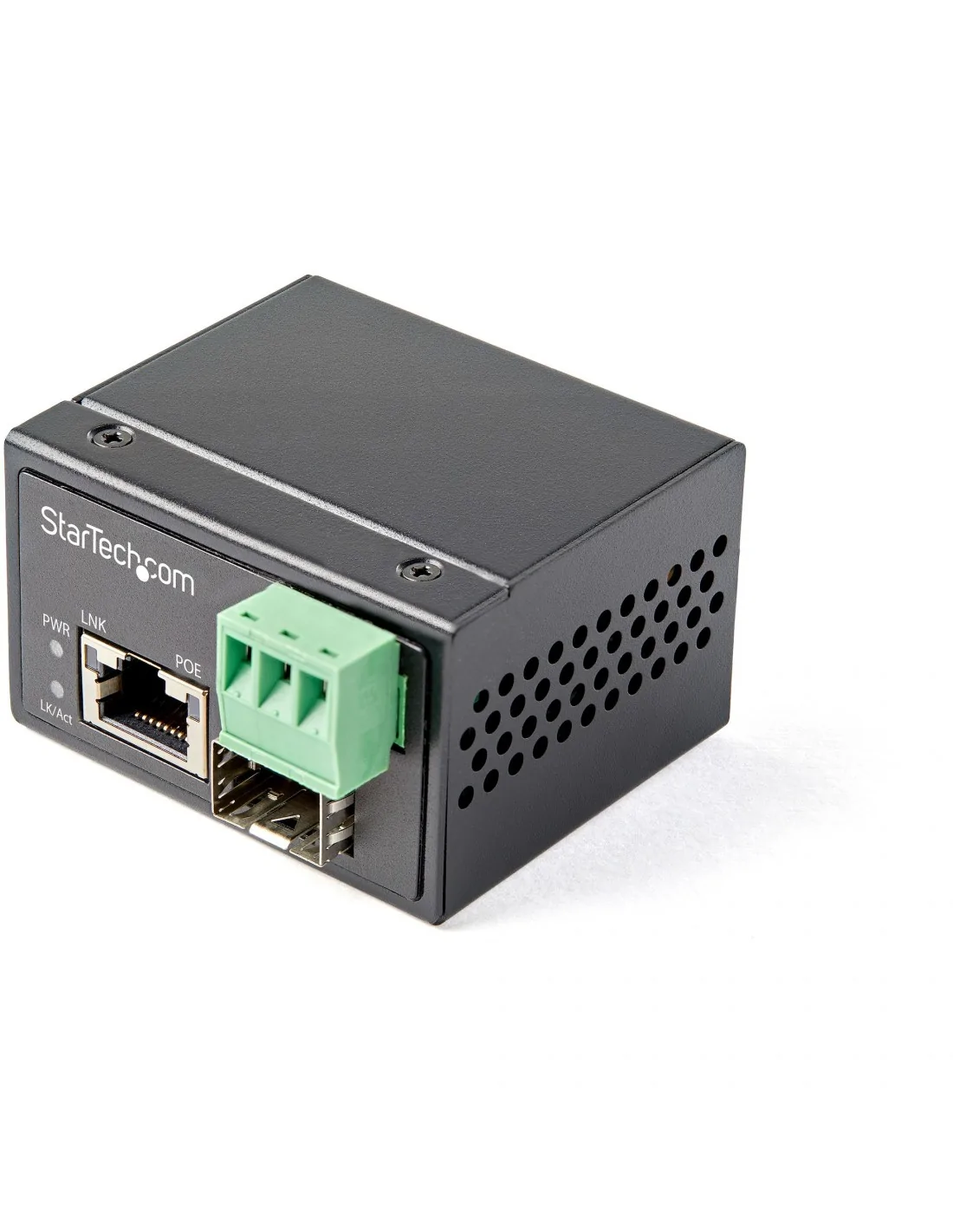

Industrial PoE Media Converter | 10/100/1000 Mbps | 30 Watts | Open SFP | DIN Rail Mountable
This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector
It converts a fiber network link to a POE-enabled copper RJ45 Ethernet connection to provide data and power to remote POE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require POE and connectivity over long distances.
Designed for Small Spaces & Harsh Environments

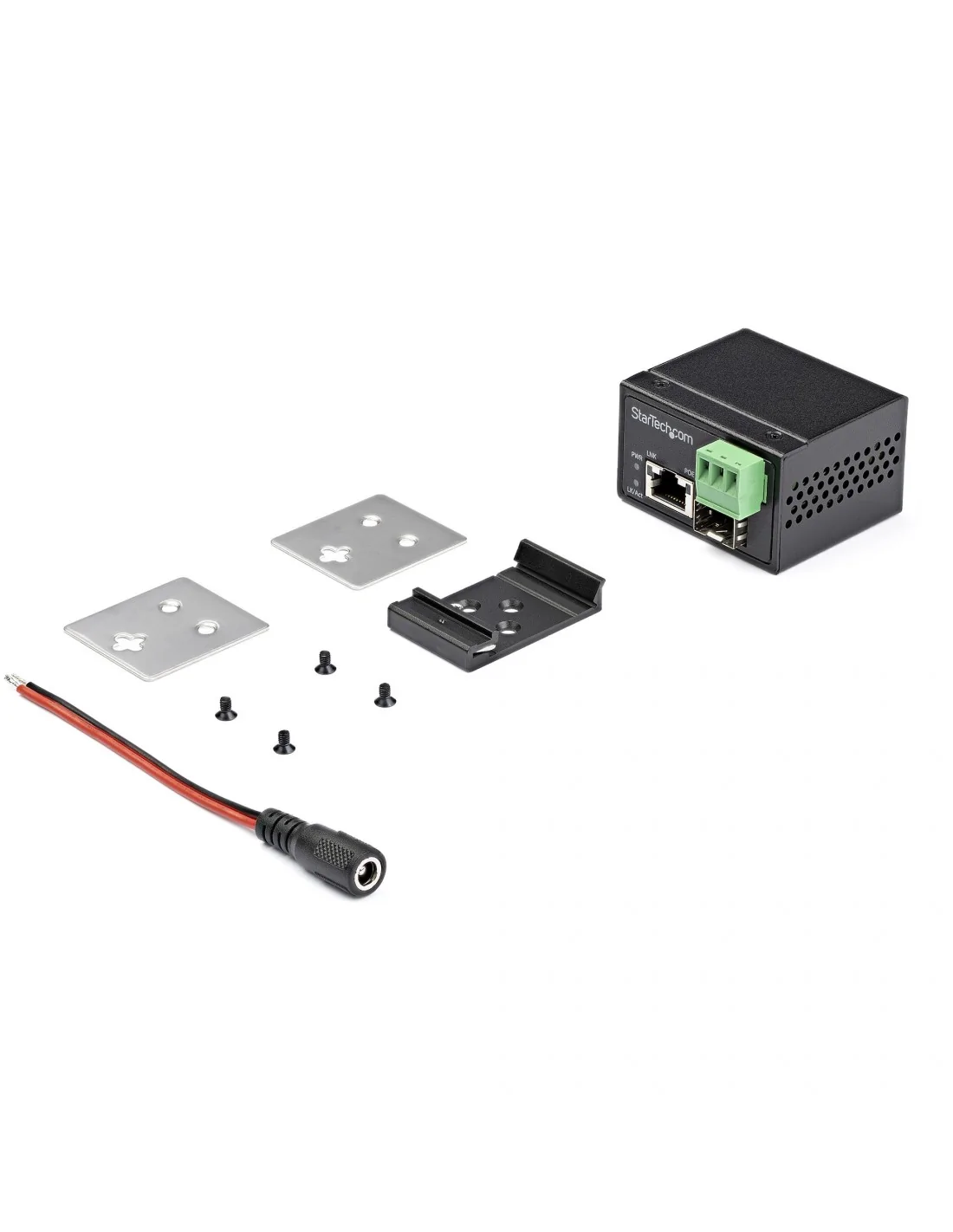

At 4.5 square inches and weighing approximately 80g, this mini media converter can be installed almost anywhere you need it and has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.
Up to 30 Watts of Power for Connected Devices
30 watts of available support a wide range of devices such as:
• Surveillance Cameras
• Wireless Access Points
• Locks & Sensors
• Lighting
Open SFP Slot to Leverage Your Current Infrastructure
The Gigabit fiber media converter provides a cost-efficient way to connect remote devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.
Industrial IoT and Bringing Connectivity Outside of the Data Center
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto-negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
The IMC1GSFP30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector
It converts a fiber network link to a POE-enabled copper RJ45 Ethernet connection to provide data and power to remote POE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require POE and connectivity over long distances.
Designed for Small Spaces & Harsh Environments
At 4.5 square inches and weighing approximately 80g, this mini media converter can be installed almost anywhere you need it and has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.
Up to 30 Watts of Power for Connected Devices
30 watts of available support a wide range of devices such as:
• Surveillance Cameras
• Wireless Access Points
• Locks & Sensors
• Lighting
Open SFP Slot to Leverage Your Current Infrastructure
The Gigabit fiber media converter provides a cost-efficient way to connect remote devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.
Industrial IoT and Bringing Connectivity Outside of the Data Center
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto-negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
The IMC1GSFP30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Flow control support | Yes |
| Jumbo frames | 16000 |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Duplex system | Full |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SFP |
| Performance | |
| Maximum transfer distance | 100 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Buffer size | 512 KB |
| Mean time between failures (MTBF) | 500000 h |
| Jumbo frames support | Yes |
| Flow control support | Yes |
| Features | |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Aluminium |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power | |
| Power plug type | Type N |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
| Input voltage | 48 - 56 V |
| Weight & dimensions | |
| Width | 36 mm |
| Depth | 59 mm |
| Weight | 80 g |
| Height | 49 mm |
| Package depth | 108 mm |
| Package width | 161 mm |
| Package height | 66 mm |
| Package weight | 204.9 g |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Quick installation guide | Yes |
| Packaging data | |
| Package depth | 108 mm |
| Package width | 161 mm |
| Package height | 66 mm |
| Package weight | 204.9 g |
| Technical details | |
| International Protection (IP) code | IP30 |
| Housing material | Aluminium |
| Maximum transfer distance | 100 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Buffer size | 512 KB |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Design | |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Aluminium |
| Product colour | Black |
| Certification | CE, FCC |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 500000 h |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 364 mm |
| Master (outer) case length | 372 mm |
| Master (outer) case height | 250 mm |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 85176990 |
