What it is

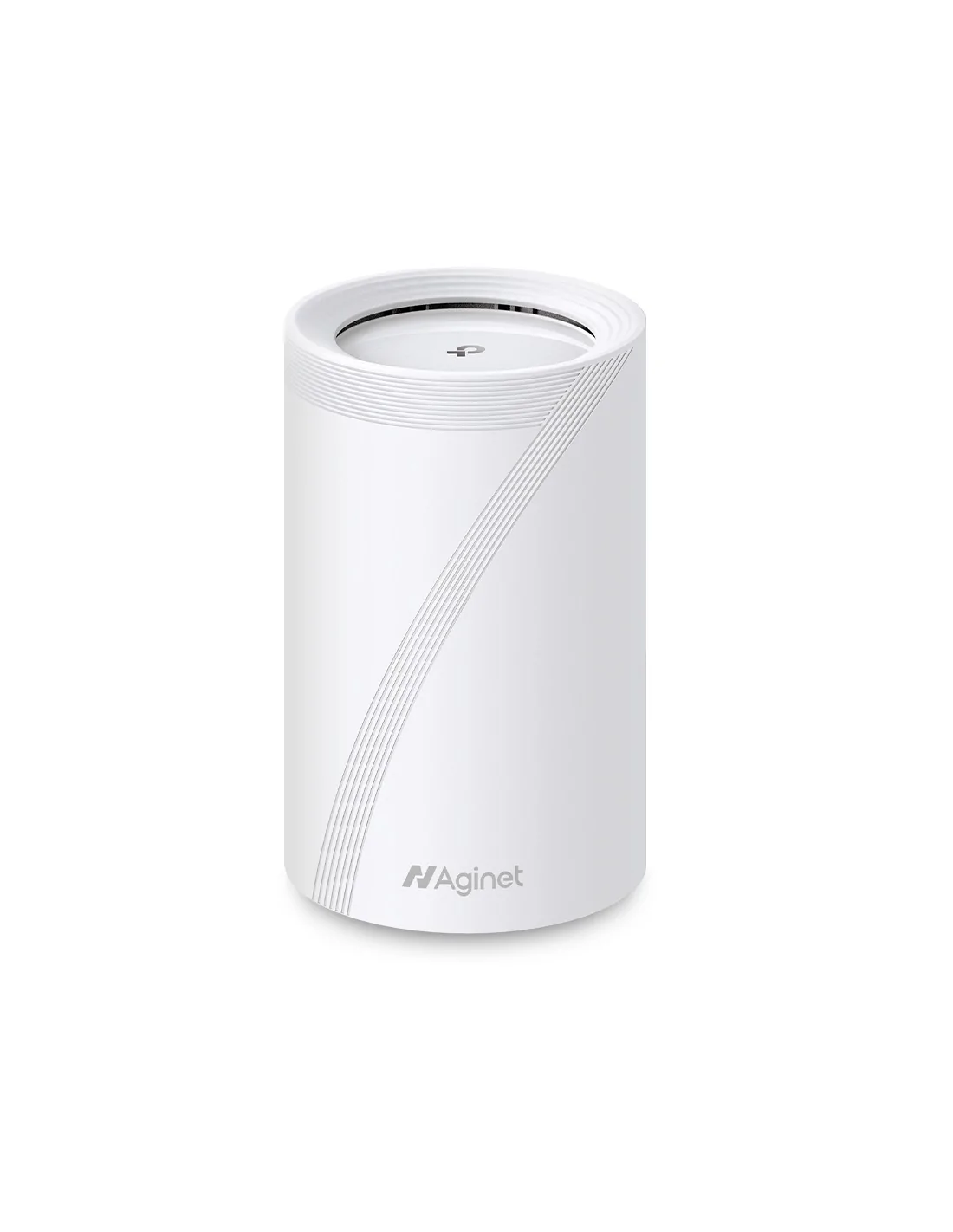

The TP-Link HB610 is a tri-band Wi-Fi 7 (802.11be) mesh node covering 2.4 GHz, 5 GHz, and 6 GHz. It delivers up to 5,760 Mbps wireless throughput and comes with four Ethernet LAN ports, one WAN port, and a USB 3.2 Gen 1 port — all in a compact white unit.
Who it's for
This suits installers and IT managers deploying high-performance wireless across offices, schools, or larger homes. If you're building a mesh network that needs to handle heavy device loads and the latest client hardware, this is a solid node to base the system on.
Why it's good
Wi-Fi 7 brings real improvements over Wi-Fi 6E — lower latency and better handling of congested airspace. The dedicated 6 GHz band keeps fast devices off the crowded 2.4 and 5 GHz channels. MU-MIMO and beamforming ensure consistent signal across the coverage zone. QoS, VPN support (OpenVPN, IPSec, PPTP), and SPI firewall make it a practical choice for business environments too, not just residential installs.
When to choose it
Choose the HB610 when you're deploying a Wi-Fi 7 mesh network and need a node with proper wired connectivity — four LAN ports is more than most mesh nodes offer. It also makes sense when client devices already support Wi-Fi 7 or 6E and you want the 6 GHz band available from day one.
Specifications
| Design | |
|---|---|
| Product colour | White |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Reset button | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Certification | CE, FCC |
| Product type | Mesh system |
| Transmit power | 30 dBmW |
| Wireless LAN features | |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Security algorithms | WPA, WPA2, WPA3, WMM |
| Networking standards | IEEE 802.11ax, IEEE 802.11be, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11a, IEEE 802.11g, IEEE 802.11b |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Static IP | Yes |
| Dynamic IP | Yes |
| VPN support | PPTP, OpenVPN, IPSec |
| WLAN data transfer rate (max) | 5760 Mbit/s |
| Features | |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
| BeamForming | Yes |
| Parental control | Yes |
| SSID Broadcast | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet WAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2.5 A |
| Certificates | |
| Certification | CE, FCC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 107.5 mm |
| Depth | 107.5 mm |
| Height | 176 mm |
| Packaging content | |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Quick installation guide | Yes |
Ready to spec this into your next network project? Request a Quote or Talk to an AV Specialist to confirm the right mesh configuration for your site.
